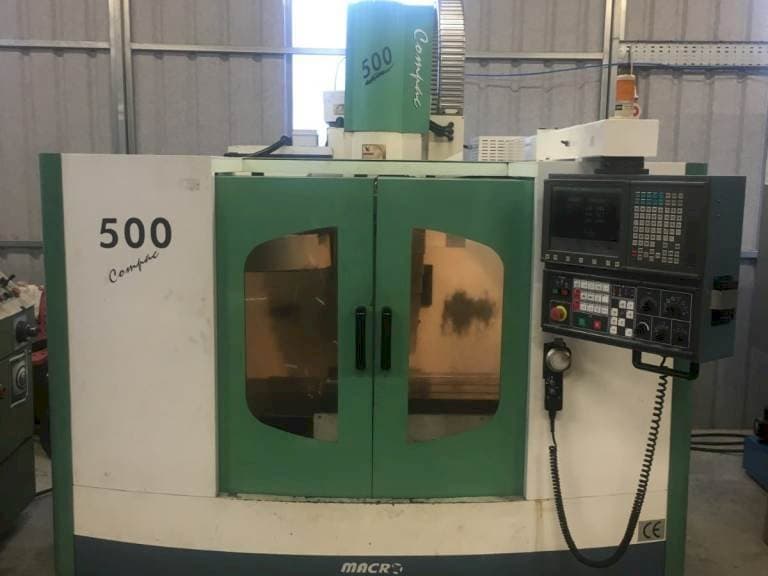

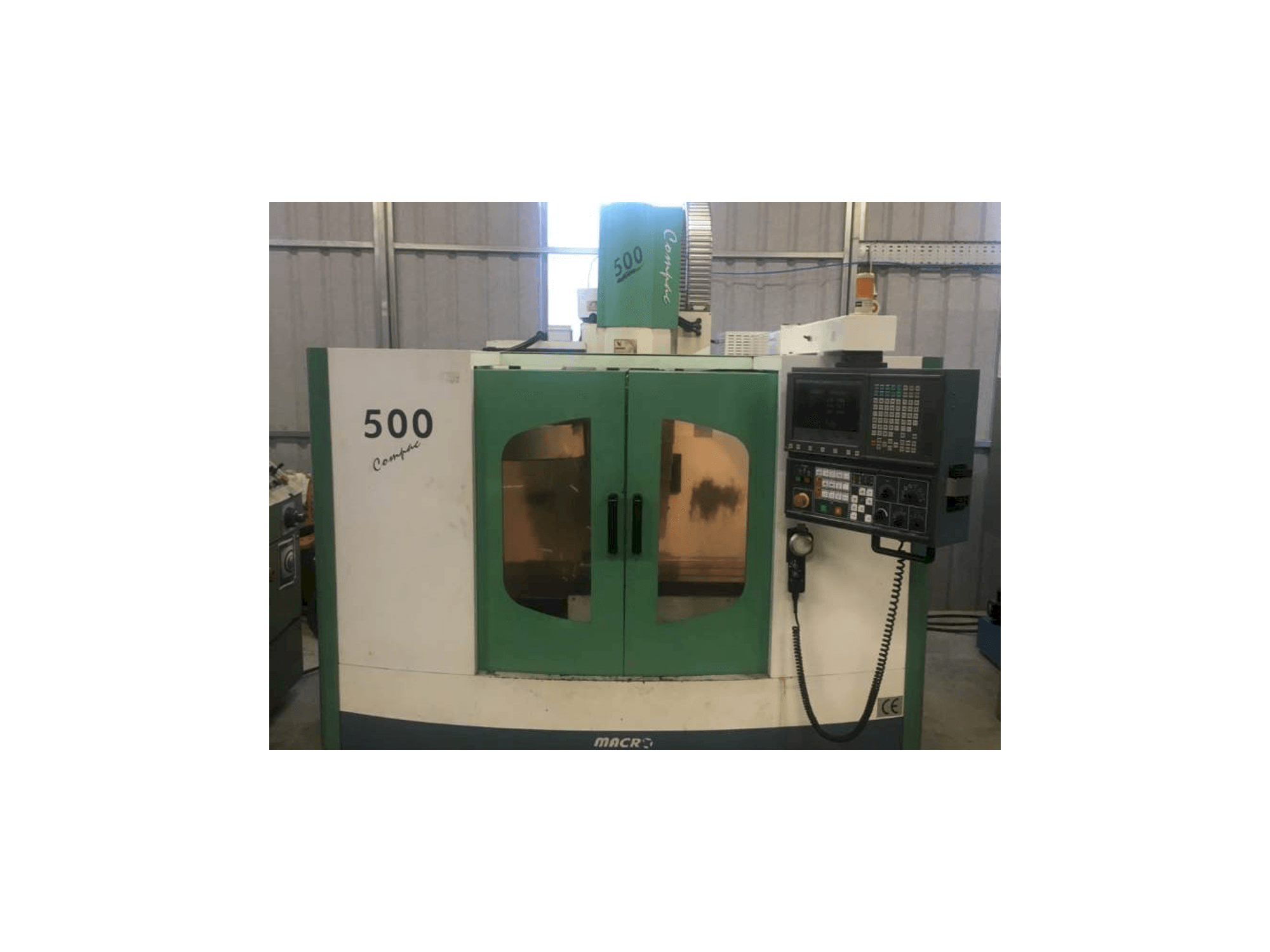

Front view of Macro Micro Tech Compac 500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Macro Micro Tech Compac 500

Photo Gallery

Macro Micro Tech - Compac 500IE-MIL-MAC-2003-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Macro Micro Tech Compac 500 Vertical Machining Center

This Macro Micro Tech Compac 500 Vertical Machining Center was built in Taiwan in the year 2003. It is equipped with a Fanuc Milling 2000 Series control unit. This machine can operate with a spindle speed up to 8000 rpm.

Overview

brand: Macro Micro Tech
year: 2003
MODEL: Compac 500
production hours: 0
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Macro Micro Tech Compac 500

General Data

Measurements width: 2200 mm
Measurements depth: 2600 mm
Measurements height: 2150 mm
Machine weight: 4200 kg

Control Unit

Model: Milling 2000 Series
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 510 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 460 mm

Workpiece

Workpiece weight: 350 kg

Table

Outer length: 780 mm
Outer width: 430 mm

Tools

Slots in storage: 16
Max weight: 6 kg
Max tool diameter: 80 mm
Max tool length: 250 mm
Type of tool holder: BT40

Additional Information

Machine Benefits

Qualitative Machine Benefits

Well maintained
Rarely used by current owner

Technical Machine Benefits

Compact machine
New z axis drive fitted

Machine History

End product

Components

Material type

Steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
