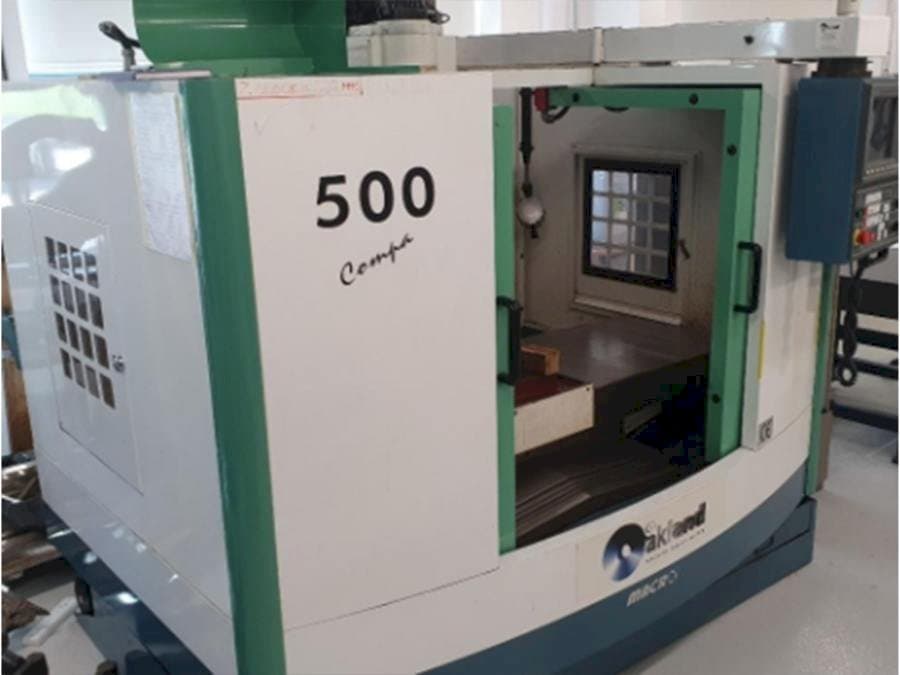

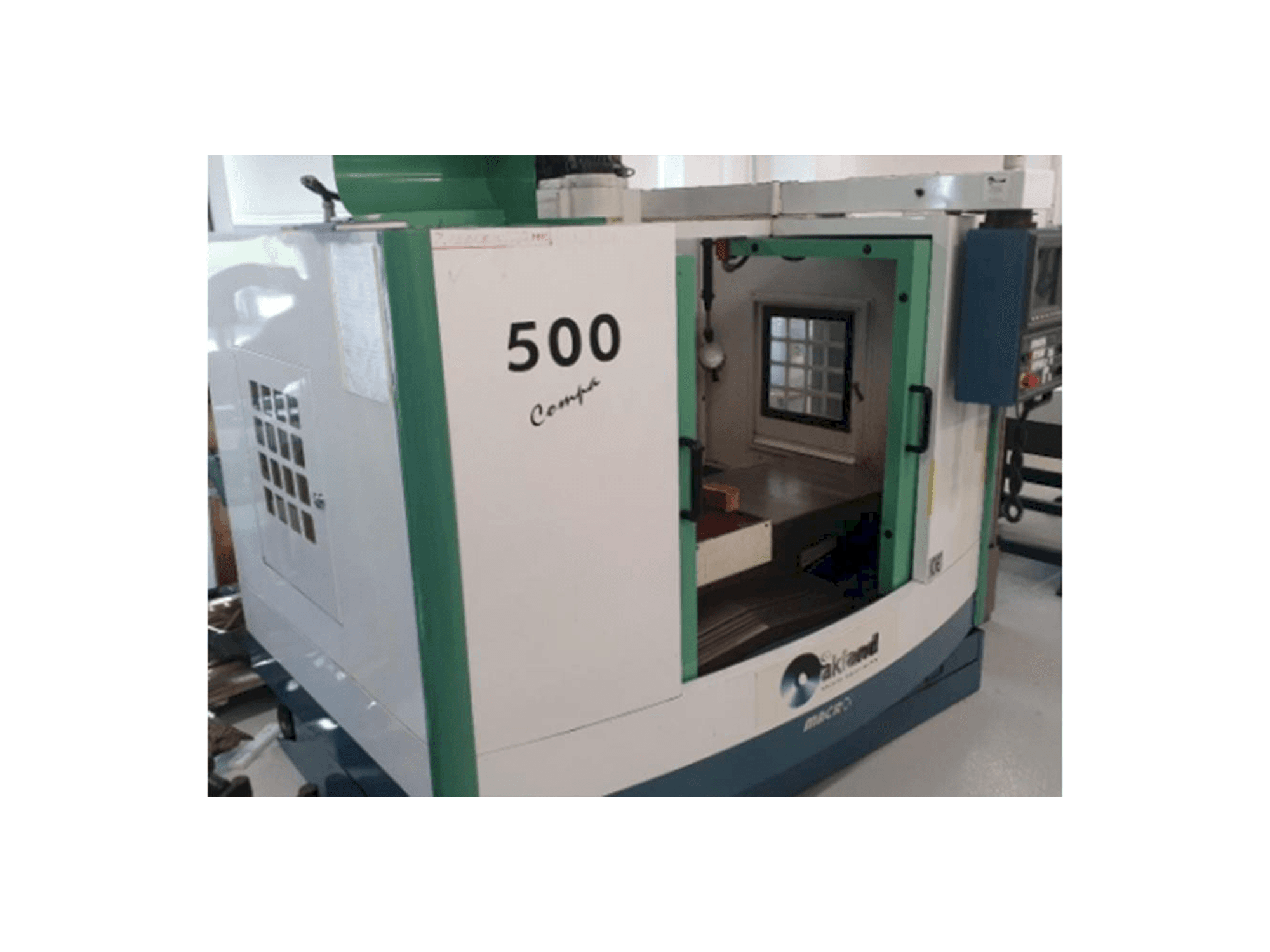

Front view of Macro Micro Tech Compac 500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Macro Micro Tech Compac 500

Photo Gallery

Macro Micro Tech - Compac 500SI-MIL-MAC-2003-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Macro Micro Tech Compac 500 Vertical Machining Center

This Macro Micro Tech Compac 500 Vertical Machining Center was built in Taiwan in the year 2003. It is equipped with a Fanuc Milling 2000 Series control unit. This machine can operate with a spindle speed up to 8000 rpm. The machine was brought and stays on place of University. Not used newer for a real work.

Overview

brand: Macro Micro Tech
year: 2003
MODEL: Compac 500
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Macro Micro Tech Compac 500

General Data

Measurements width: 2200 mm
Measurements depth: 2600 mm
Measurements height: 2150 mm
Machine weight: 4200 kg

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 510 mm
X-AXIS Rapid traverse: 20 m/min
Y-AXIS Movement: 450 mm
Y-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 460 mm
Z-AXIS Rapid traverse: 16 m/min

Table

Outer length: 780 mm
Outer width: 430 mm
Table load: 350 kg

Tools

Max weight: 6 kg
Max tool diameter: 80 mm
Max tool length: 250 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine was brought and stays on place of university. Not used newer for a real work.

Technical Machine Benefits

Spindle nose to table: 130 - 590mm
Spindle taper: bt40
Spindle motor: 10hp
Feed rates - x,y,z 10 m/min
Atc 16 tool atc
Control: fanuc compatible itri. Mirl pc control – milling 2000 series

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
