MAHO - MAHO 600 EDE-MIL-MAH-1993-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- MAHO MH 600 E Universal Machining center

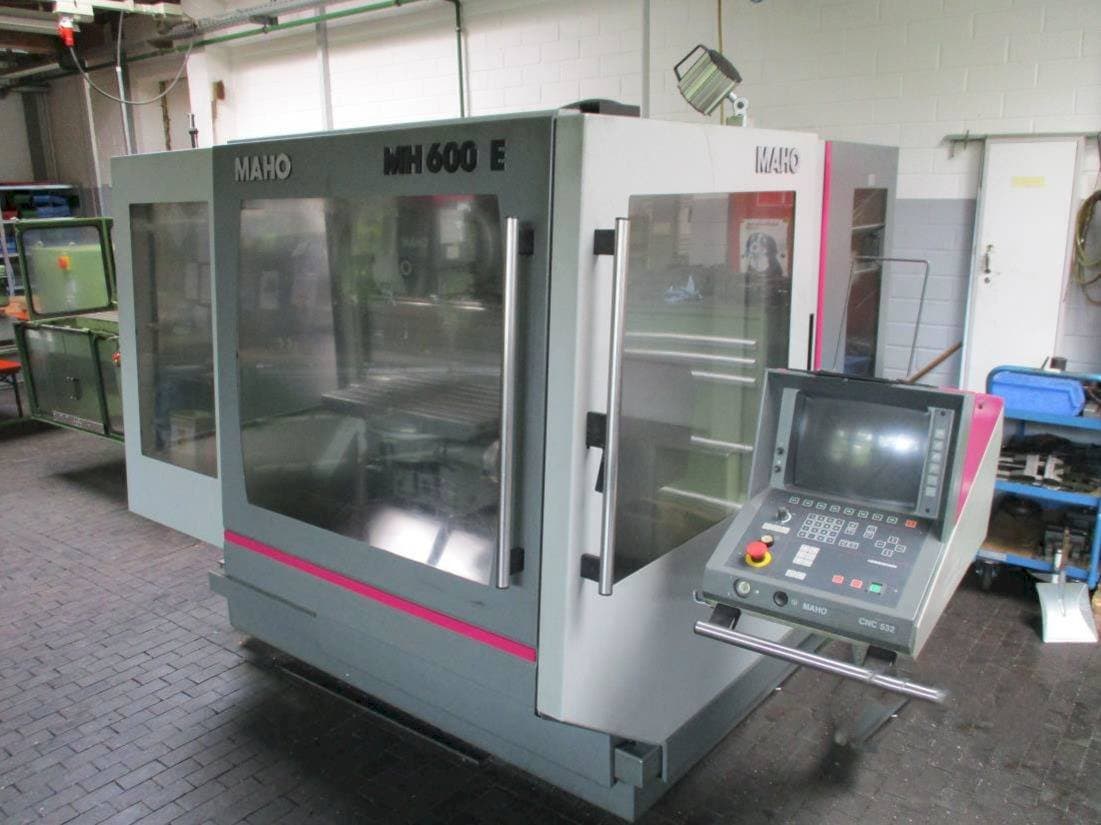

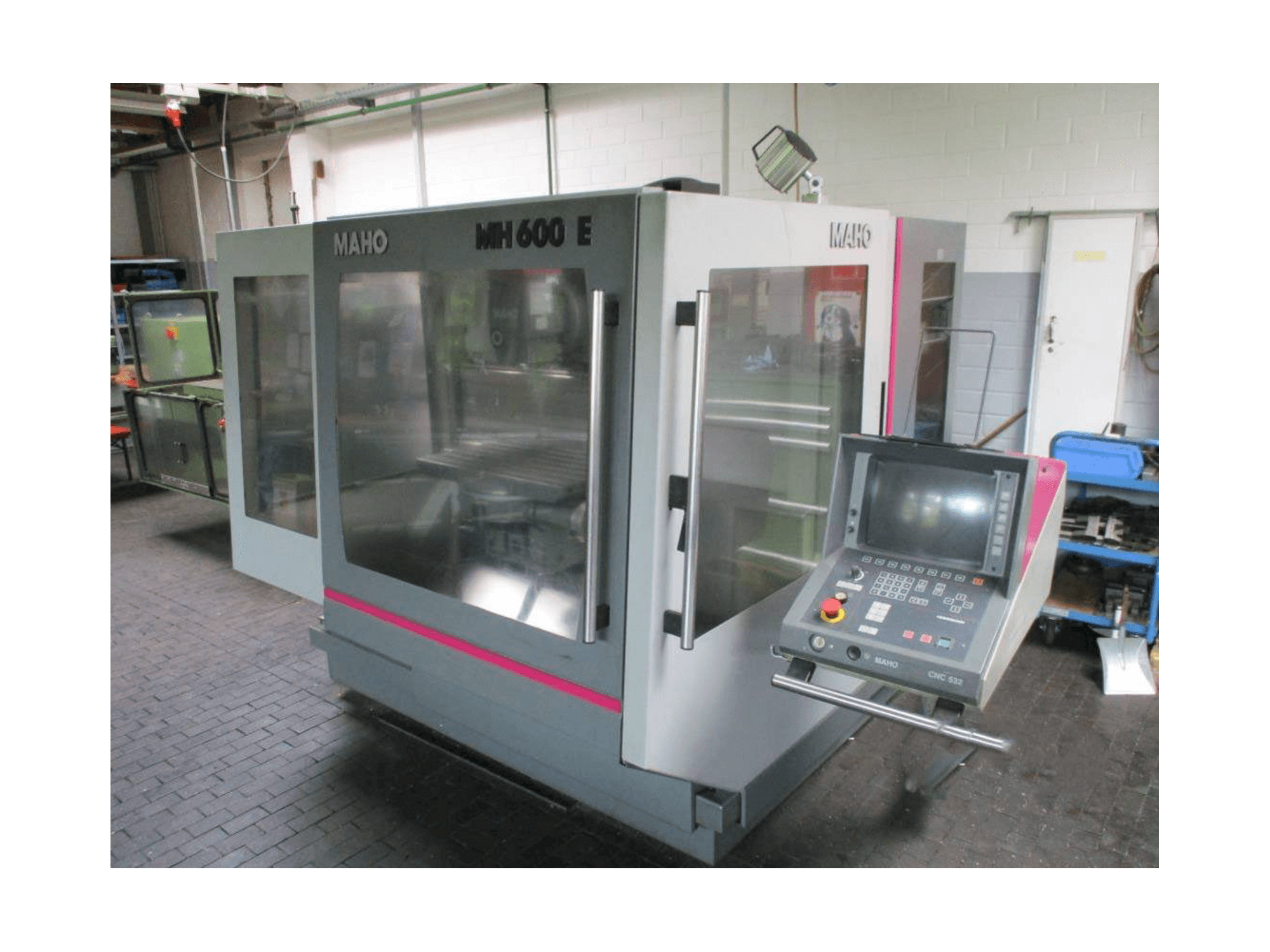

This MAHO MH 600 E Universal Machining center was manufactured in the year 1993 in Germany and has 25856 production hours. It is equipped with a Philipd CNC 5000 control unit. The machine has a spindle speed of 20-5000 rpm. See original tech specs attached as PDF (German) for more details.
Overview
- brand: MAHO
- year: 1993
- MODEL: MAHO 600 E
- production hours: 25856
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
Technical Information - MAHO MAHO 600 E
General Data
- Measurements width: 3608 mm
- Measurements depth: 3451 mm
- Measurements height: 1909 mm
- Machine weight: ca. 2820 kg
Control Unit
- Model: CNC 5000
Main drive
- Spindle speed range: 20 - 5000 1/MIN
- Tool taper: ISO 40
Movement
- X-AXIS Movement: 600 mm
- Y-AXIS Movement: 450 mm
- Z-AXIS Movement: 450 mm
Table
- Outer length: 740 mm
- Outer width: 445 mm
Additional Information
Additional equipment
- 1x drill chuck SK 40
- 1x Milling arbor SK40x27x35
- 1x SK 40 surface chuck short Ø 6
- 1x SK 40 surface chuck short Ø 8
- 1x SK 40 surface chuck short Ø 10
- 1x SK 40 surface chuck short Ø 20
- 1x SK 40 surface chuck long Ø 6
- 1x SK 40 surface chuck long Ø 8
- 1x SK 40 surface chuck long Ø 10
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
