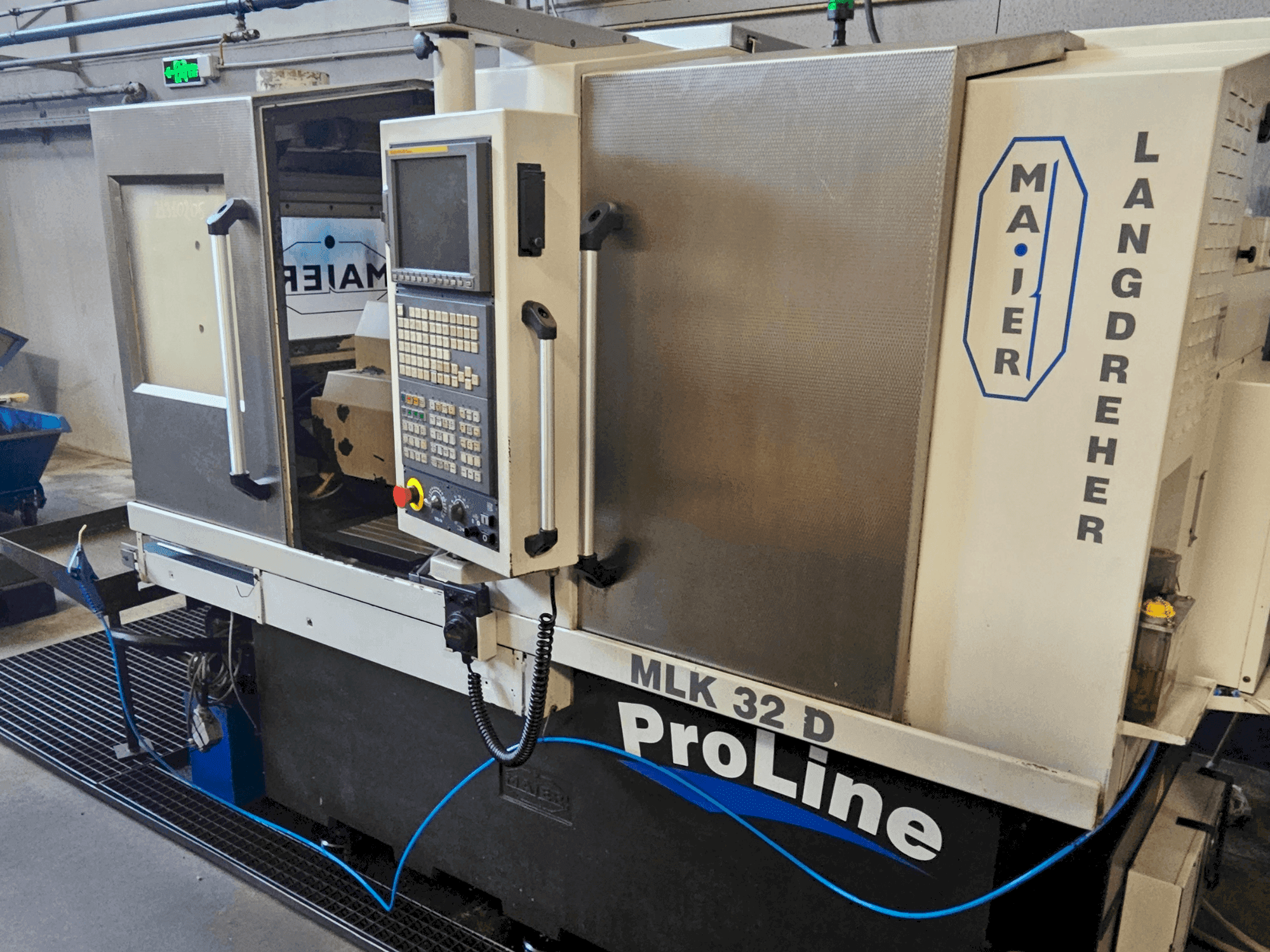

Maier - MLK 32DRO-TUR-MAI-2007-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max bar diameter: 32 mm
  • - Max machining length per clamping: 310 mm
  • - Sub-spindle re-machining length: 200 mm
  • - Axes configuration: up to 9 axes (x1, z1, y1, c1, x2, z2, c2, x3, z3) // c-axis indexing resolution: 0. 001°
  • - Coolant delivery through tools and external nozzles
  • - Optional high-pressure system (up to 80 bar)
  • - Voltage: 220 v ac / 50 hz
  • - Control voltage: 24 v dc
  • - Total installed power: 16 kw
  • - Max current: 60 a

Extra information

• - Control Unit Type: MAIER PRO-GE Fanuc Fanuc 16i-TB Color LCD display with full keyboard Supports G-code, macros, tool offsets, synchronization Workpiece Synchronized sub-spindle (backworking) Tools Up to 23 tool stations Approx. 14 live tools (powered) Tool holders: ER16 / ER20 collets Rear tool block included Media Bar Feeder: FMB Turbo (servo-controlled) Bar diameter capacity: 5–42 mm Bar length capacity: up to 3.2 meters Fully CNC-synchronized
