Makino A77

Photo Gallery

Makino - A77HR-MIL-MAK-1998-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

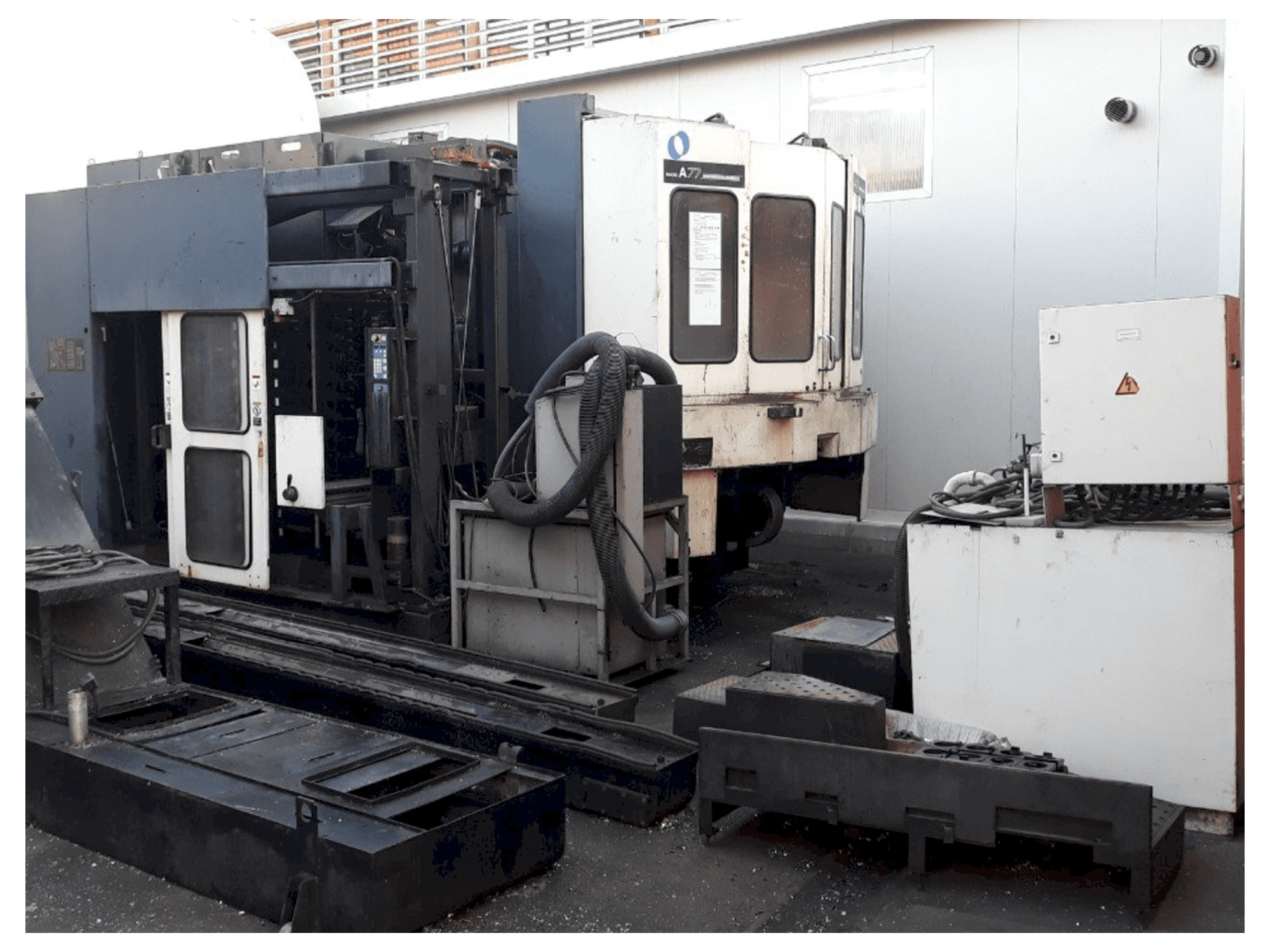

➤ Makino A77 Horizontal Machining Center - Used

This Makino A77 Horizontal Machining Center from 1998 was built in Japan. With a spindle speed up to 10000 rpm, this 4 axis machine counts with a rotary table of 360° and 2 pallets. Must be noted that this model has been recently inspected and verified.

Overview

brand: Makino
year: 1998
MODEL: A77
application type: Milling
Location: Croatia
machine type: Horizontal Machining Centre

Technical Information - Makino A77

General Data

Measurements width: 7900 mm
Measurements depth: 4150 mm
Measurements height: 3315 mm
Machine weight: 17000 KG

Main drive

Number of spindles: 1
Spindle speed range: 10000 rpm 1/MIN

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 750 mm
Z-AXIS Movement: 770 mm

Workpiece

Workpiece weight: 1200 kg

Table

Outer length: 630 mm
Outer width: 630 mm
Number of tslots: 5
Distance between: 125 mm

Tools

Slots in storage: 40

Media

Main electronic connection: 400V / 50Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
