- ➤ Used Makino PS95 vertical machining center

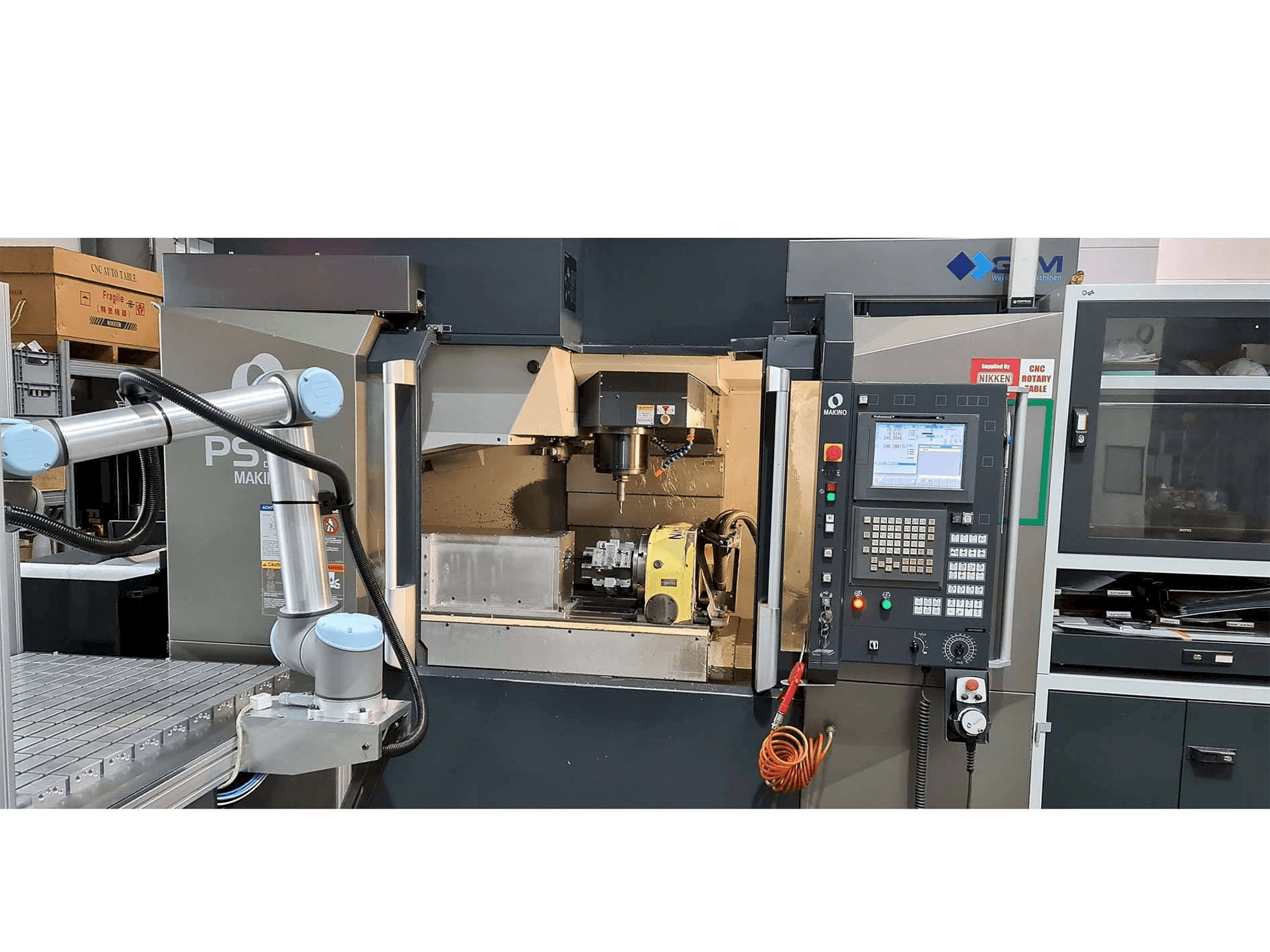

This Makino PS95 vertical machining center was manufactured in 2012 in Singapore. It includes a COBOT System von universal Robotics UR10. The machine has a total of 9750 running hours. It is operated through a Fanuc control unit. This 4 axis machine is equipped with a Gressel vice which can be controlled with a torque screwdriver via the robot at all 4 positions and has a spindle speed up to 14000 rpm.
Overview
- brand: Makino
- year: 2012
- MODEL: PS95
- production hours: 9750
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Makino PS95
Control Unit
- Control Brand: FANUC
- Control Model: with Makino surface
Dimensions
- Machine Depth: 2420 mm
- Machine Height: 2479 mm
- Machine Weight: 6800 kg
- Table Length: 1170 mm
- Table Width: 510 mm
Movement
- Number of Axes: 4
- X-axis Travel: 920 mm
- Y-axis Travel: 510 mm
- Z-axis Travel: 460 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Speed: 14000 RPM
Additional Information
Additional equipment
- Software version COBOT Dec. 2021 V15.4
- COBOT System von universal Robotics UR10 is included, very easy to program
- We leave existing programs on the computer and the machine
- Table is flexible to use via simple laser inserts
- Laser floor scanner for 2 zones.
- Automatic doors via torque controlled servo motors
Machine Benefits
Qualitative Machine Benefits
- 4 axis is equipped with a gressel vice which can be controlled with a torque screwdriver via the robot at all 4 positions
Technical Machine Benefits
- 15bar ikz
- Paper belt filter for kss
- Central shearing system
- Network connection
- 4 axis nikken 260z / nc controlled / g68. 2 usable
- Door automation servo controlled : manual and programmable
- Air dryer upstream
- 45 linear guides / very accurate and stable
- Automation connection for cobot ur10
- Double gripper schunk / one side with deflection for pressing on
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
