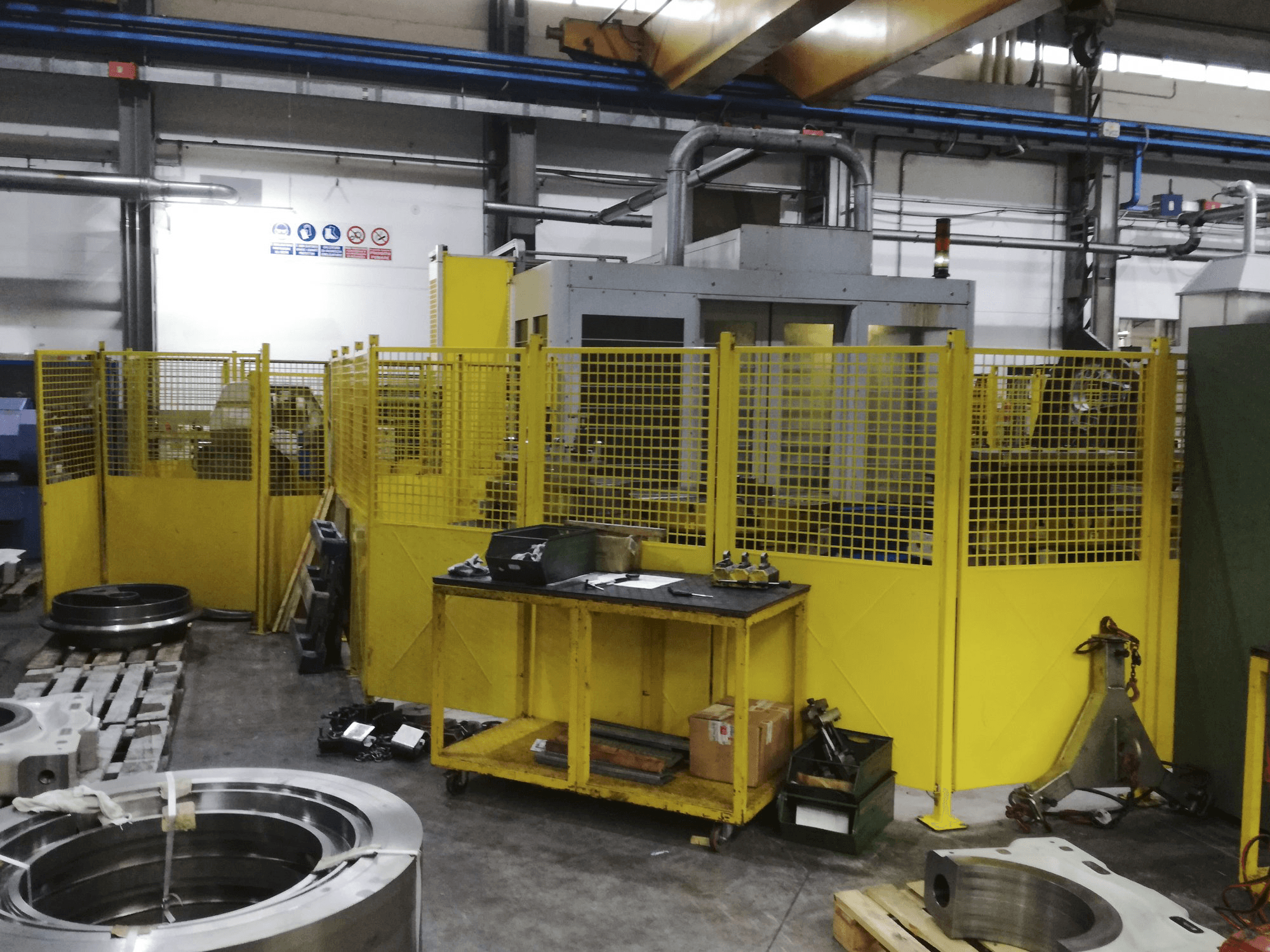

Mandelli M8 UT Machining Center

This Mandelli M8 UT is a Machining Center made in Italia that was manufactured in 1999. The M8 UT is equipped with a SIEMENS SINUMERIK 840 D Control unit, which is partially to be thanked for the Mandellis status as a very fast, precise and powerful machine.

Overview

brand: Mandelli
year: 1999
MODEL: M8 UT
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Mandelli M8 UT

General Data

Measurements width: 12000 mm
Measurements depth: 10000 mm
Measurements height: 4200 mm
Machine weight: 20000 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Spindle speed range: 15-4500 1/min
Spindle motor power: 31 kW

Movement

X-AXIS Movement: 1400 mm
X-AXIS Working Feed: 5-24000 mm/min
Y-AXIS Movement: 1100 mm
Y-AXIS Working Feed: 5-24000 mm/min
Z-AXIS Movement: 1150 mm
Z-AXIS Working Feed: 5-24000 mm/min

Tools

Max tool diameter: 140-450 mm
Max tool length: 600 mm

Media

Main electronic connection: 400 V / 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
