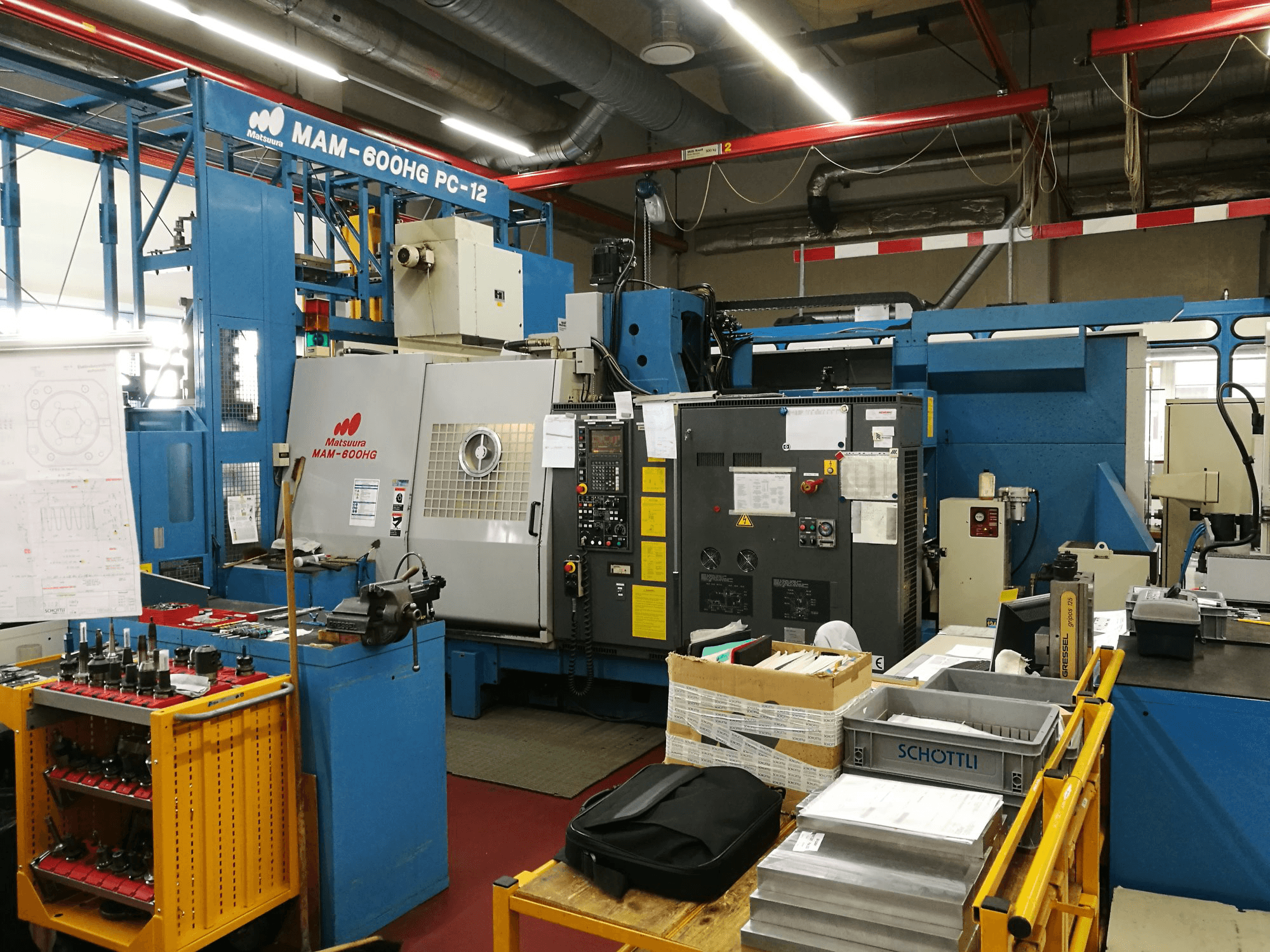

Matsuura - MAM 600HG PC-12CH-MIL-MAT-1998-00001

General Data

• Measurements width: 6030 mm
• Measurements depth: 4600 mm
• Measurements height: 3105 mm
• Machine weight: 11000 kg

Control Unit

• Remote control: Yes

Movement

• X-AXIS Movement: 600 mm
• X-AXIS Working Feed: 1-10000 mm/min
• X-AXIS Feed Force: 5.2 kN
• X-AXIS Rapid traverse: 24000 mm/min
• X-AXIS Accuracy: 0.001
• Y-AXIS Movement: 600 mm
• Y-AXIS Working Feed: 1-10000 mm/min
• Y-AXIS Feed Force: 6.4 kN
• Y-AXIS Rapid traverse: 24000 mm/min
• Y-AXIS Accuracy: 0.001
• Z-AXIS Movement: 625 mm
• Z-AXIS Working Feed: 1-10000 mm/min
• Z-AXIS Feed Force: 13 kN
• Z-AXIS Rapid traverse: 24000 mm/min
• Z-AXIS Accuracy: 0.001
• A-AXIS Movement: 360°
• B-AXIS Movement: 360°

Workpiece

• Workpiece weight: 400 kg

Table

• Outer length: 400 mm
• Outer width: 400 mm

Tools

• Slots in storage: 60
• Max weight: 10 kg
• Max tool diameter: 80/150 mm
• Max tool length: 350 mm

Media

• Main electronic connection: 380 V / 50 Hz
• Power consumption: 70 kVA
• Air pressure: 6 bar
• Lubrication tank: 700 L
• Oil tank: 15 L
• Chip conveyor: Yes
• Internal cooling: Yes
