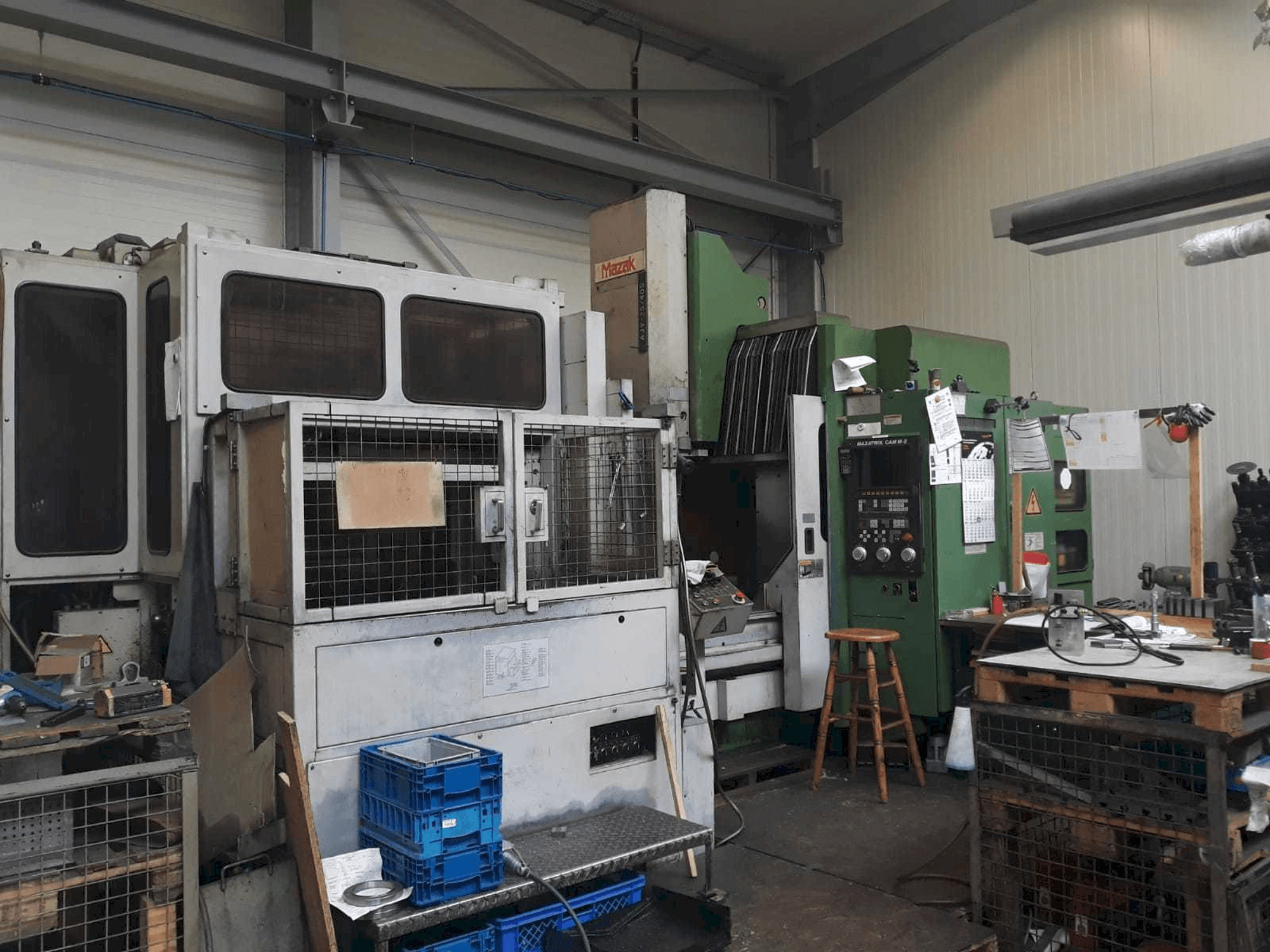

Mazak AJV 25/405 Vertical Machining Center

This Mazak AJV 25/405 Vertical Machining Center was built in the year 1987 in Japan. Equipped with a Mazak Mazatrol M2 Control unit, this machine can work with a spindle speed up to 3150 rpm.

Overview

brand: Mazak
year: 1987
MODEL: AJV 25/405
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak AJV 25/405

General Data

Measurements width: 3780 mm
Measurements depth: 2570 mm
Measurements height: 2951 mm
Machine weight: 6500 kg

Control Unit

Model: Mazatrol M 2
Brand: MAZATROL

Main drive

Spindle speed range: 3150 1/MIN
Spindle motor power: 15 kW

Movement

X-AXIS Movement: 1000 mm
X-AXIS Working Feed: 5000 mm/min
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 508 mm
Y-AXIS Working Feed: 5000 mm/min
Y-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 460 mm
Z-AXIS Working Feed: 5000 mm/min
Z-AXIS Rapid traverse: 18 m/min

Table

Distance between: 650 mm
Table load: 800 kg

Tools

Max weight: 15 kg
Max tool diameter: 125 mm
Max tool length: 300 mm

Media

Power consumption: 40.7 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Pallet size 1240 x 550 mm
- - Tools in magazine 30
- - Toolchange time chip to chip: 8. 5 sec
- - Toll taper cat 50
- - Max torque 295 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
