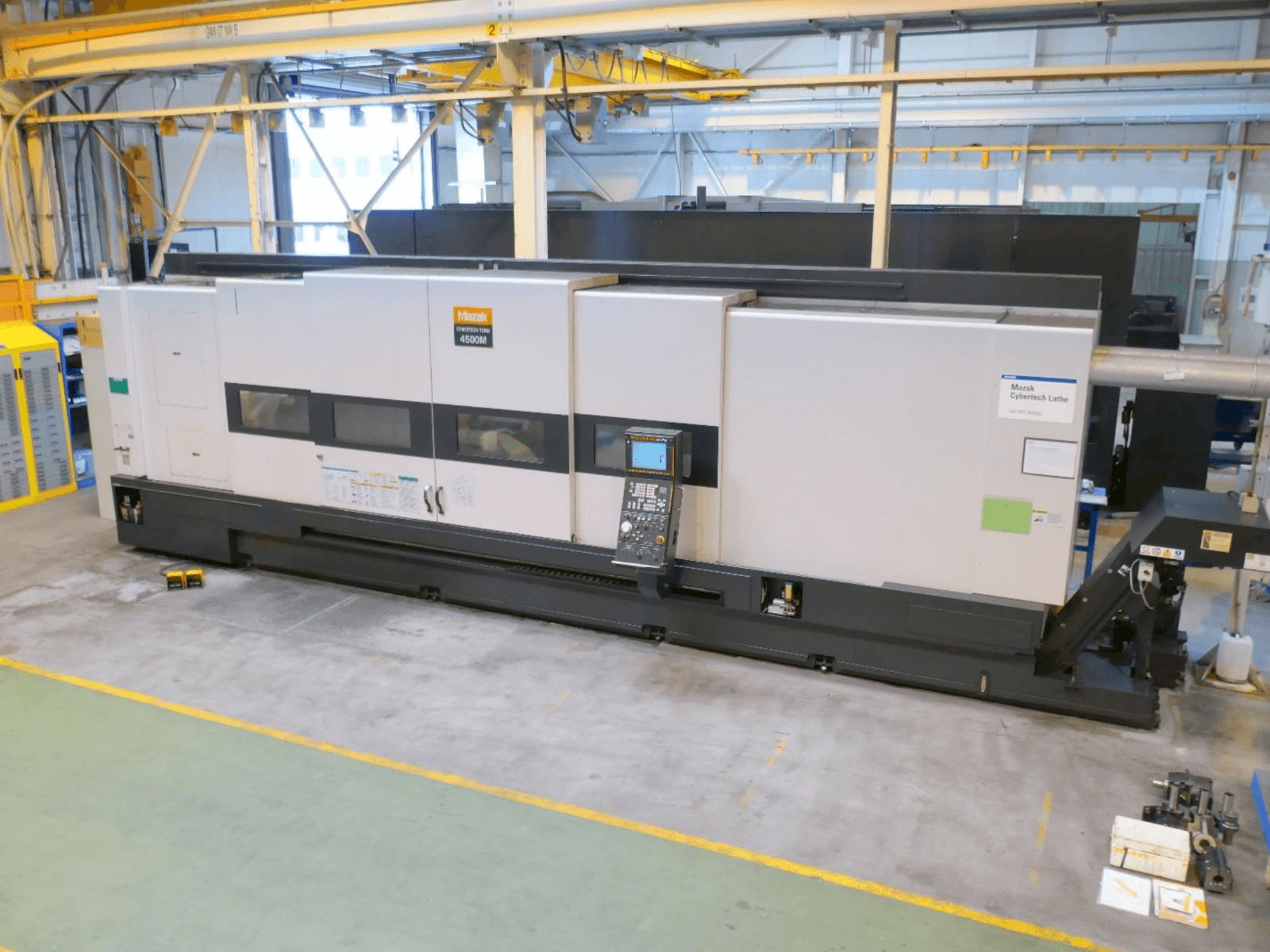

Front view of Mazak CYBERTECH TURN 4500M machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak CYBERTECH TURN 4500M

Photo Gallery

Mazak - CYBERTECH TURN 4500MGB-TUR-MAZ-2009-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak CYBERTECH TURN 4500M lathe

This Mazak CYBERTECH TURN 4500M lathe machine was manufactured in the year 2009 in Japan and has 1681 cutting hours. It is equipped with a MAZATROL 640 MT PRO control unit and has 3 axis. The machine has a Spindle speed (2 range) of 35 - 2400 rpm and includes 630 mm 3 jaw chuck, driven tool holders, static boring and turning tool holders, SMW hydraulic steady rest, SMW manual steady rest, tool pre setter, programmable tailstock, high pressure coolant, and a swarf conveyor.

Overview

brand: Mazak
year: 2009
MODEL: CYBERTECH TURN 4500M
production hours: 1681
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: MAZATROL

Technical Information - Mazak CYBERTECH TURN 4500M

General Data

Measurements width: 8470 mm
Measurements depth: 3763 mm
Measurements height: 2800 mm
Machine weight: 23800 kg

Control Unit

Model: 640 MT PRO
Brand: MAZATROL

Main drive

Spindle speed range: 35 - 2400 1/MIN
Spindle motor power: 37/30 kW
Number of axis: 3

Movement

X-AXIS Movement: 540 mm
X-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 4146 mm
Z-AXIS Rapid traverse: 30 m/min

Additional Equipment

- Equipped with:- 630mm 3 Jaw Chuck
- Driven Tool Holders
- Static boring and turning tool holders
- SMW Hydraulic Steady Rest
- SMW Manual Steady Rest
- Tool presetter
- Programmable tailstock
- High pressure coolant
- Swarf conveyor
- Machine manuals

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum swing: 860 mm
- - Swing over cross slide: 700 mm
- - Max. Machining dia: 810 mm
- - Max. Machining length: 4052 mm
- - Spindle nose: a2-11
- - Through hole diameter: 132 mm
- - Type of turret: 12 station – all live
- - Rotary tool spindle speed: 25-3000 rpm, rotary tool spindle power: 11/7. 5 kw
- - Tailstock stroke: 3350 mm
- - Tailstock centre: mt no. 5

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
