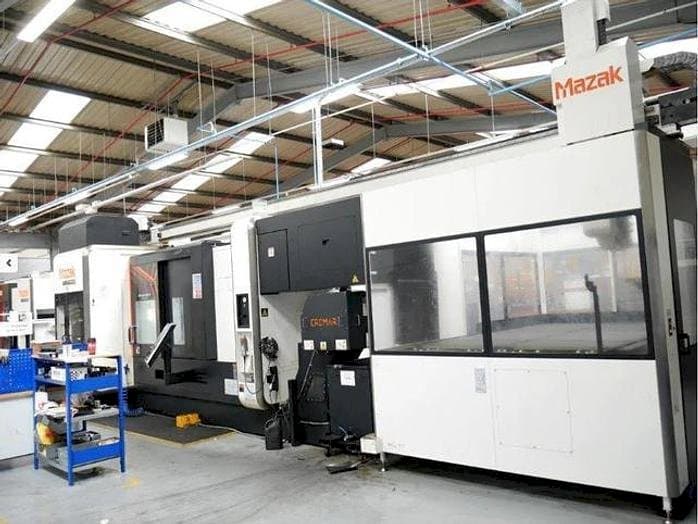

Front view of Mazak INTEGREX i-400 ST machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak INTEGREX i-400 ST

Photo Gallery

Mazak - INTEGREX i-400 STIT-TUR-MAZ-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak INTEGREX i-400 ST

This Mazak INTEGREX i-400 ST lathe was made in 2016. It has a Smooth X control unit. This 5 axis machine works with a milling spindle speed up to 12000 rpm and a high pressure of 70 bar. It includes a Renishaw touch probe and a hand D3 with 40 Kg (x2).

Overview

brand: Mazak
year: 2016
MODEL: INTEGREX i-400 ST
production hours: 0
application type: Turning
Location: Italy
machine type: Turn-Mill Centre

Technical Information - Mazak INTEGREX i-400 ST

Control Unit

Model: Smooth X

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 30 Kw
Number of axis: 5

Movement

W-Axis Movement: 1539 mm

Turret

Number of tool slots: 9

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Renishaw touch probe

Machine Benefits

Qualitative Machine Benefits

Pl083 signaling tower (3 color lights, square
Si098 2nd spdl c-ax. Continuous sync
Co029 air blow on the first spindle
Cs808 i preparation for 70 bar refrigerant (europe) + 70 bar high pressure system
Mb267 preparation for renishaw
Mt201 tool break detector loader side
No092 air blow milling spindle
No123 tool radius compensation / 5 axis
No442 g00 constant slope
Np326 for smoothx 5 axis machining package

Technical Machine Benefits

Main spindle bar passage 102 mm
80 mm secondary spindle bar passage
High pressure 70 bar
Spindle connection (spindle) kapto
Secondary spindle power 26 kw
X2 axis travel 230 mm
Y axis (strokes) 260 mm
Z axis (strokes) 1585 mm
Machine configuration: as080 overload detection system
At385 capto-tool charger 110

Extra Information

HAND D3 WITH 40 KG X 2; MAX PIECE DIAMETER 350 MM

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
