Mazak - QTC 300MY L500DE-TUR-MAZ-2018-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Mazak QTC 300MY L500

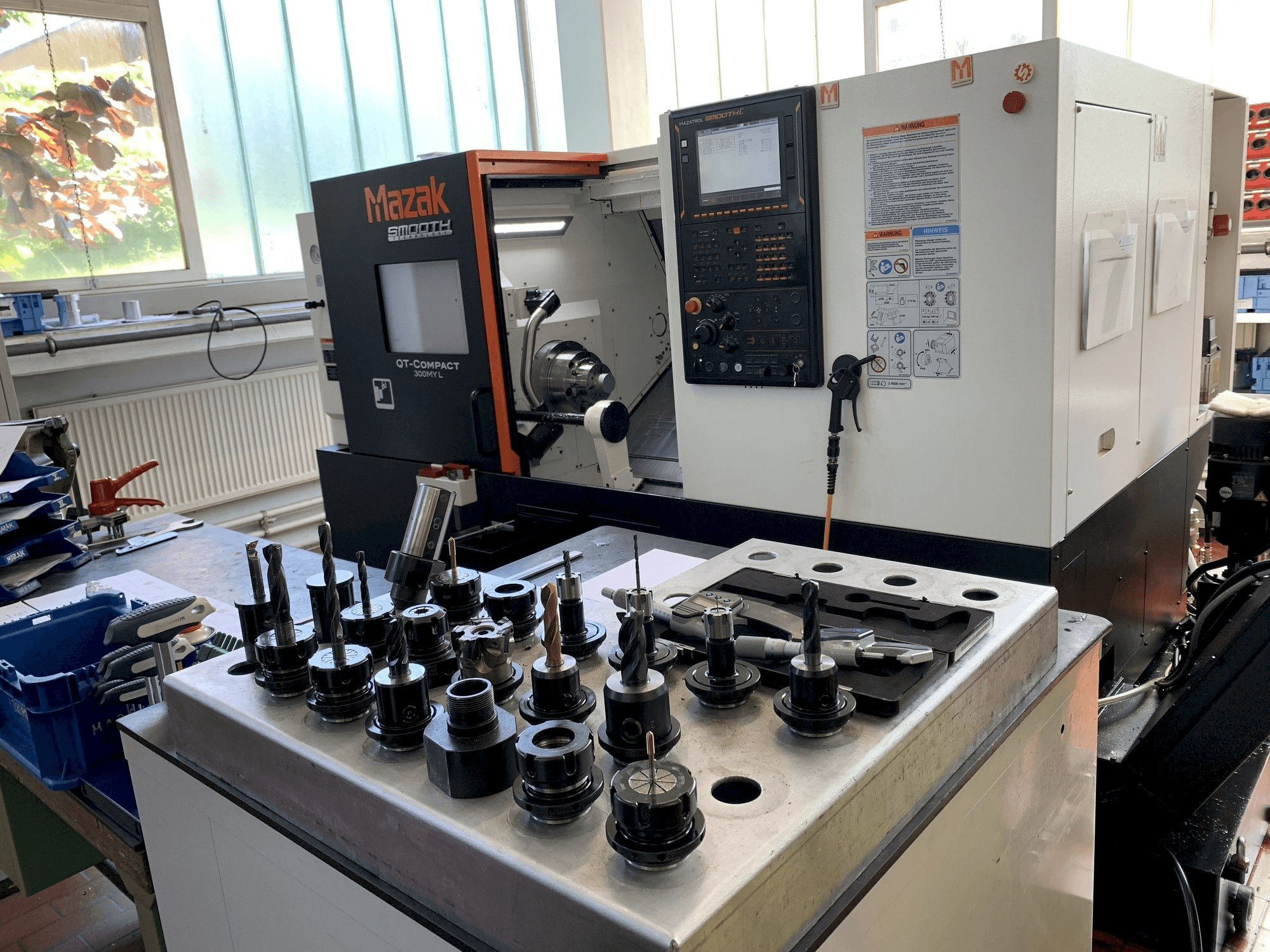

This Mazak QTC 300MY L500 Lathe was made in China in the year 2018. It has been working for 5056 hours. This 3 axis machine is operated through a MAZATROL SMOOTHC control unit. It can work with a spindle speed up to 4000 rpm and a spindle bore 91 mm. This machine includes several options as 1 set of adjustment tools and a small tool box with a spanner, screwdriver and an Allen key. It comes with a set of manuals in electronic form on OD.
Overview
- brand: Mazak
- year: 2018
- MODEL: QTC 300MY L500
- production hours: 5056
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: MAZATROL
Technical Information - Mazak QTC 300MY L500
Control Unit
- Control Brand: MAZATROL
- Control Model: SMOOTHC
Dimensions
- Machine Depth: 2700 mm
- Machine Height: 1725 mm
- Machine Weight: 4670 kg
Movement
- Number of Axes: 3
- X-axis Travel: 215 mm
- Y-axis Travel: 100 mm
- Z-axis Travel: 605 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 4000 RPM
Additional Information
Additional equipment
- B688EL110 Transformer for the European market
- B688M0575 Use of linear systems with carriages from leading manufacturers
- B688N0839 SD MEMORY l/F(1P) + USB MEMORY l/F(1P) 1 x USB - Memory Interface (1 SIot)
- B688SD120 1 set of adjustment tools
- Small tool box with - spanner - Screwdriver - l Allen key
- B688SD130 Machine feet / levelling shoes
- B688S1039 C-axis input accuracy 0.0001
- B688TT014 Integrated travelling quill MK 4 (1000)
- B688TT640 Tailstock with fixed quill MK5 (500U)
- B688YI 030 Y-axis control
Machine Benefits
Qualitative Machine Benefits
- Tool cross-section (external turning tool) 565 mm2
- Boring bar diameter (max. ) 40 mm
- Tool size drill 20 mm
- Tool size milling cutter 20 mm
- Switching time 1 turret station 0. 23 s
- Switching time full turret rotation 0. 63 s
- Milling spindle power (continuous operation) 3. 7 kw
- Milling spindle power (40% ed) 5. 5 kw
- Max. Milling spindle speed milling spindle speed 4500 min-1
- Max. Milling spindle torque 47. 0
Technical Machine Benefits
- Chuck diameter main spindle 10''
- Max. Swing diameter 695 mm
- Standard machining diameter 255 mm
- Max. Machining diameter 340 mm
- Max. Bar diameter main spindle 80 mm
- Distance between spindle end and turret 59. 5 - 664. 5 mm
- Max. Workpiece weight chuck machining main spindle 450 kg
- Spindle nose a2-8
- Max. Torque 356. 0 nm
- Travel range tailstock body 565 mm
Extra Information
Set of manuals in electronic form on OD
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
