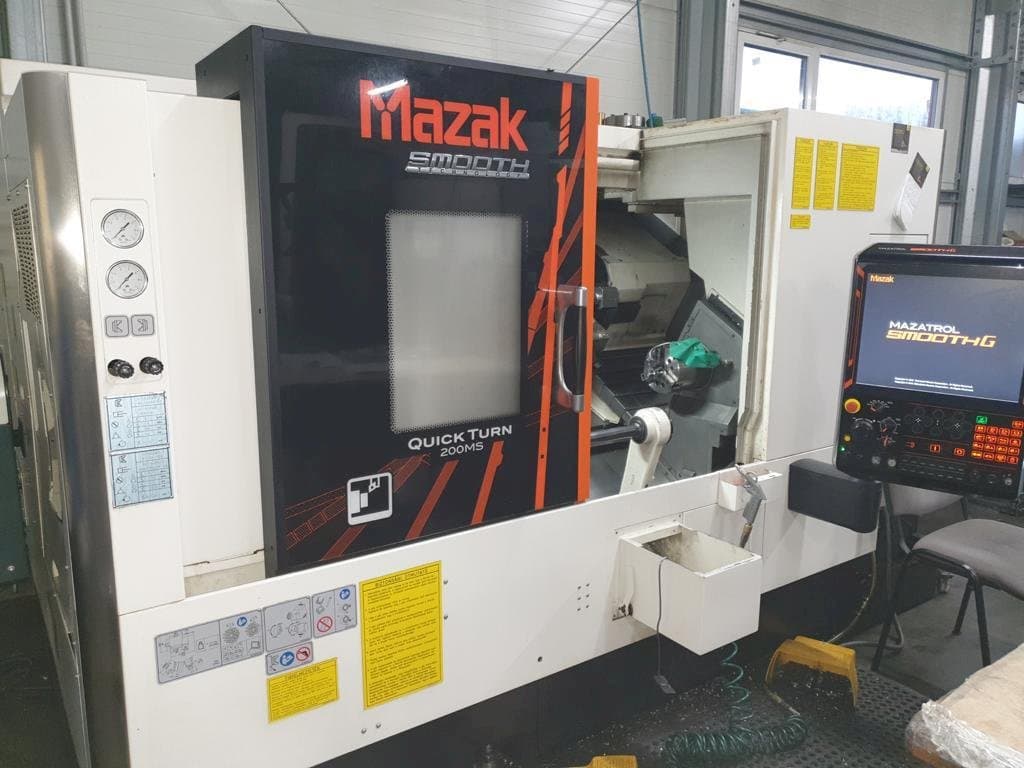

Front view of Mazak Quick Turn 200MS machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Quick Turn 200MS

Photo Gallery

Mazak - Quick Turn 200MSHU-TUR-MAZ-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Quick Turn 200MS Turning

This Mazak Quick Turn 200MS Turning machine was manufactured in the year 2017. This 4th axis machine can work with a spindle speed up tp 5000 rpm. It contains different additional pieces such as a high power pressure cooling and a rod feed system.

Overview

brand: Mazak
year: 2017
MODEL: Quick Turn 200MS
production hours: 0
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine

Technical Information - Mazak Quick Turn 200MS

General Data

Measurements width: 1845 mm
Measurements depth: 2760 mm
Measurements height: 1857 mm
Machine weight: 5850 kg

Main drive

Spindle speed range: 5000 1/MIN
Spindle bore: 76 mm (Diameter)
Number of axis: 4

Movement

X-AXIS Movement: 234 mm
Y-AXIS Movement: 555 mm
Z-AXIS Movement: 625 m MM

Additional Information

Additional equipment

High power Pressure cooling
Automatic workpiece catcher
Rod Feed System
Coolant tank hood

Machine Benefits

Qualitative Machine Benefits

Number of tools: 12
Tool size (turning to outside diameter): 25mm
Tool size (turning to inside diameter): 40 mm
Tool size (rotary drill): 20 mm
Milling spindle motor output power: 5. 5 kw
Milling spindle maximum torque: 47 kw
High speed x axis: 30 m/min
High speed z axis: 33 m/min
High speed w axis: 30 m/min
Spindle center height: 1020 mnm

Technical Machine Benefits

Spindle size: 203 mm
Maximum rotation: 153 mm
Standard machine diameter: 276 mm
Maximum machining diameter: 380 mm
Spindle cutting: 65 mm
Spindle maximum chuck durable weight: 300 kg
Rear spindle maximum support weight: 150 kg
Engine output power: 26 kw
Maximum torque: 465 nm
Spring maximum speed: 6000 min.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
