Mazak - QUICK TURN 28NHU-TUR-MAZ-1995-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Mazak QUICK TURN 28N Lathe

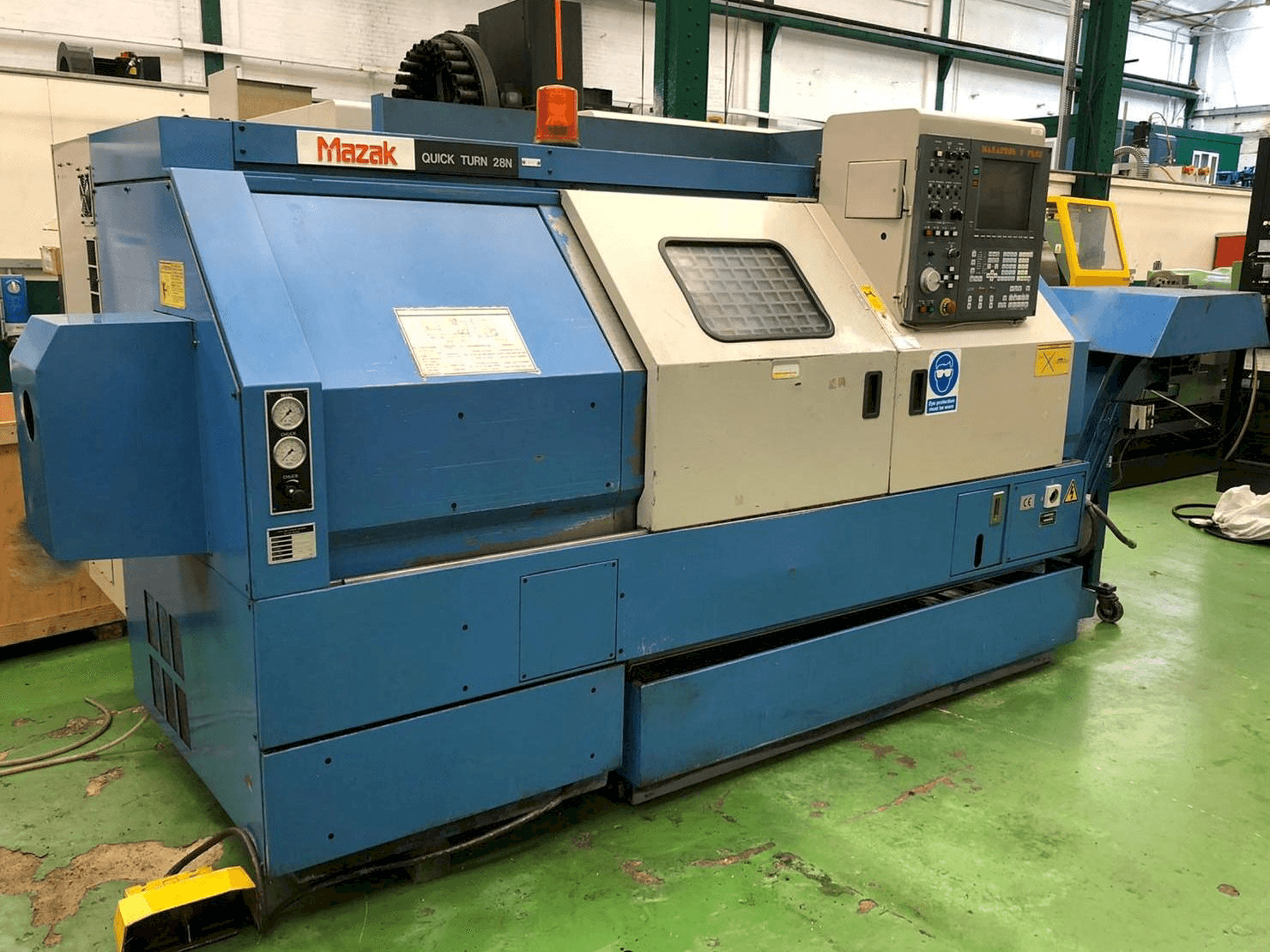

This Mazak QUICK TURN 28N Lathe was built in the year 1995. It is operated through a new MAZATROL T PLUS control unit. This machine works with a spindle speed range between 50 - 3000 rpm. Includes a built-in tool gauge, hydraulic and motorized tailstock and transformer. It is in excellent technical and aesthetic condition.
Overview
- brand: Mazak
- year: 1995
- MODEL: QUICK TURN 28N
- application type: Turning
- Location: Hungary
- machine type: Horizontal Turning Machine
- control unit brand: MAZATROL
Technical Information - Mazak QUICK TURN 28N
Control Unit
- Control Brand: MAZATROL
- Control Model: T PLUS
Dimensions
- Machine Depth: 1905 mm
- Machine Height: 2032 mm
- Machine Weight: 5500 kg
Movement
- X-axis Travel: 200 mm
- Z-axis Travel: 1018 mm
Technical Specification
- Spindle Power: 22.3 kW
- Spindle Speed: 3000 RPM
- Through-spindle Coolant: Yes
Additional Information
Additional equipment
- Hinged chip conveyor
- Cooling water equipment
- Built-in tool gauge
- 3-jaw hydraulic chuck
- Hydraulic and motorized tailstock
- Transformer
Machine Benefits
Qualitative Machine Benefits
- Excellent technical and aesthetic condition
Technical Machine Benefits
- Diameter turning over the bed: 510 mm
- Turnable diameter: 320 mm
- Turnable length: 1000 mm
- Bar permeability: d70 mm
- Hydraulic chuck size: d300 mm
- Number of revolver seats: 16
- Tailstock quill stroke: 130 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
