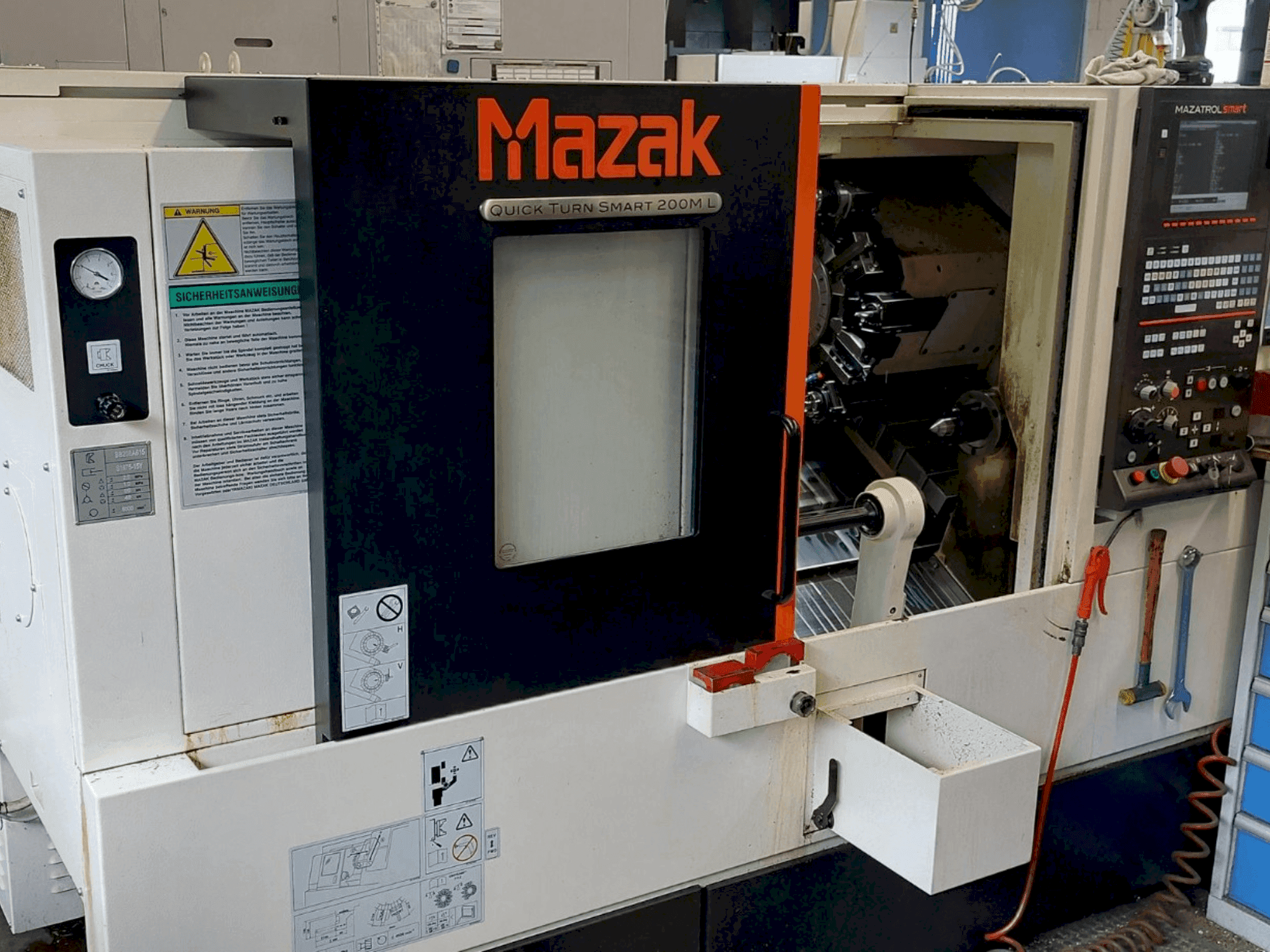

Mazak - QUICK TURN SMART 200 MLDE-TUR-MAZ-2015-00001

Additional Equipment

• - The turret will be fully equipped with tool holders, 3 of which are driven.
• - High pressure system: combiloop CL 1N / dimensions: 506 x 516 x 655 mm / weight 30 kg

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Tank capacity: 180 l
  • - Spindle motor torque: 358 nm
  • - Max feed (x-axis): 65 msec // max feed (z-axis): 80 msec
  • - Standard machining diameter: 235 mm
  • - Max machining diameter: 360 mm // max machining length: 535 mm // max bar diameter (main spindle): 65 mm // max workpiece weight for chuck machining: 300 kg // max workpiece weight for shaft machining: 500 kg
  • - Holder cross-section (turning tool): 25 mm
  • - Max milling spindle speed: 4500 min-1 // max milling spindle torque: 47 nm
  • - Mounting: mk5
  • - Travel range (tailstock body): 565 mm
  • - Efficient feed speeds for increased productivity.
• Qualitative Machine Benefits:
  • - Precision control with mazak smart control.
  • - Robust tailstock for stable and precise operations.

Extra information

• - Machine still under power
