Mazak VTC-300C

Photo Gallery

Mazak - VTC-300CIT-MIL-MAZ-2010-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

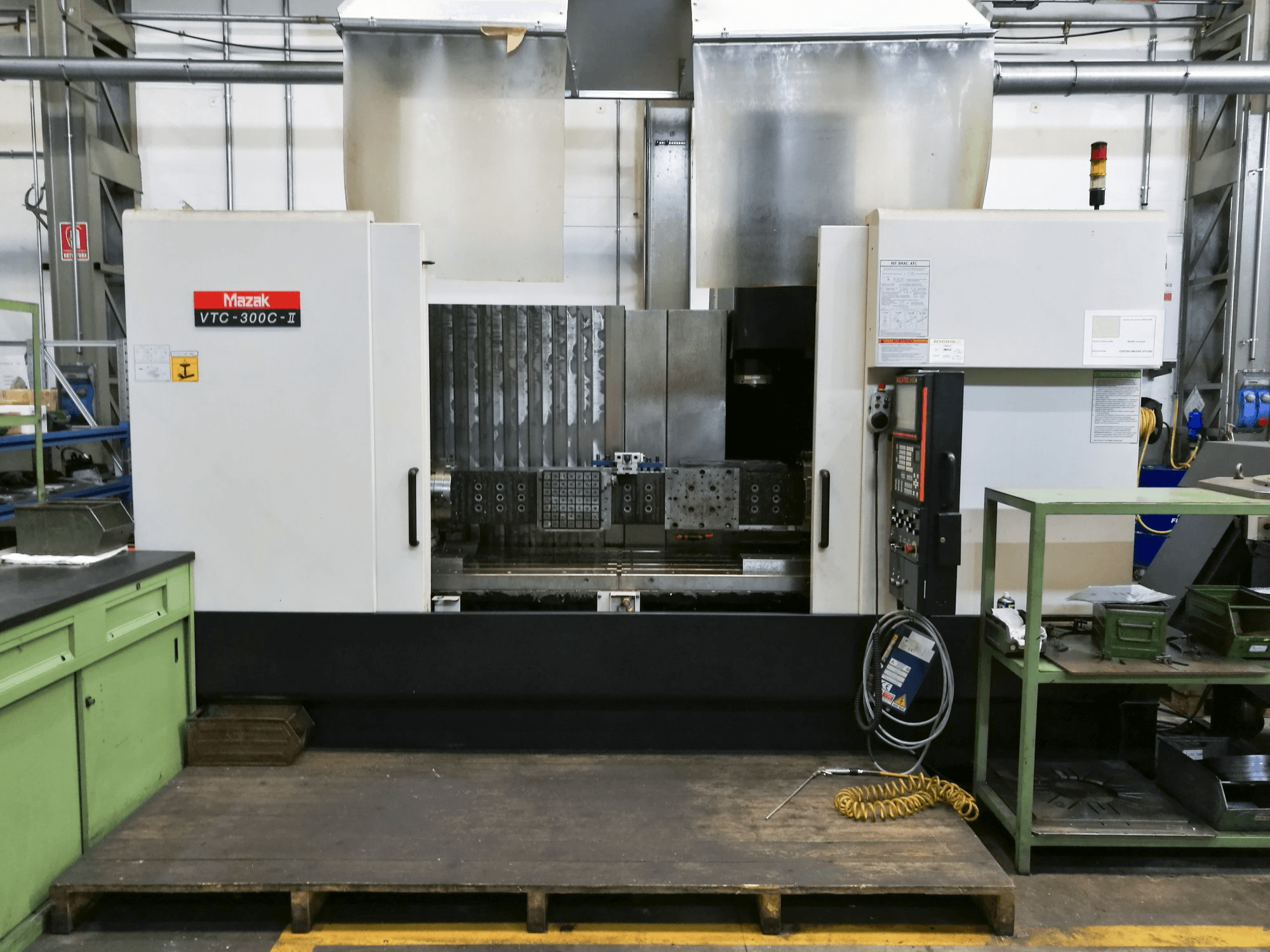

➤ Used Mazak VTC-300C Machining Center

This Mazak VTC-300C Machining Center was manufactured in 2010 and is operated through a Mazatrol Fusion 640 M Control unit (with remote control and Serial/Ethernet Interface). This machine, which has been active for 3806 working hours, stands out for its rotary table of generous dimensions, along with its tool changer. In the past, this VTC-300C has worked mainly with steel and produced machinery parts for the Textile industry. Several pieces of additional equipment are included: 4th axis Kitagawa TRX400, optical lines, a high-pressure pump, adjustable angle heads, a gauge feeler and 48 tools CAT 40.

Overview

brand: Mazak
year: 2010
MODEL: VTC-300C
production hours: 3806
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak VTC-300C

General Data

Measurements width: 5337 mm
Measurements depth: 3434 mm
Measurements height: 3086 mm
Machine weight: 11500 kg

Control Unit

Brand: MAZATROL
Model: Fusion 640 M
Interface: Serial, Ethernet
Remote control: Yes

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/min
Spindle motor power: 7.5 kW
Tool taper: ISO 40

Movement

X-AXIS Movement: 1660 mm
X-AXIS Working Feed: 1-8000 mm/min
X-AXIS Feed Force: 36 m/min
X-AXIS Backlash: 0.03 mm
Y-AXIS Movement: 760 mm
Y-AXIS Working Feed: 1-8000 mm/min
Y-AXIS Feed Force: 36 m/min
Y-AXIS Backlash: 0.02 mm
Z-AXIS Movement: 660 mm
Z-AXIS Working Feed: 1-8000 mm/min
Z-AXIS Feed Force: 36 m/min
C-AXIS Movement: 360° MM
C-AXIS Working Feed: 25 m/min

Workpiece

Workpiece x: 4000 mm
Workpiece y: 905 mm
Workpiece z: 790 mm
Workpiece weight: 1400 kg

Table

Outer length: 2000 mm
Outer width: 760 mm
Number of tslots: 4

Tools

Slots in storage: 48
Max weight: 8 kg
Max tool diameter: 110 mm
Max tool length: 350 mm

Media

Main electronic connection: 415 V / 3 P / 50 Hz
Power consumption: 29 kVA
Air pressure: 6 bar
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

4th Axis Kitagawa TRX400
Optical lines
High pressure pump
Adjustable angle heads
Gauge feeler
48x Tools CAT 40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
