MICROCUT - Modern VMC 1300CA-MIL-MIC-2006-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Microcut Modern VMC 1300 Vertical Machining Center

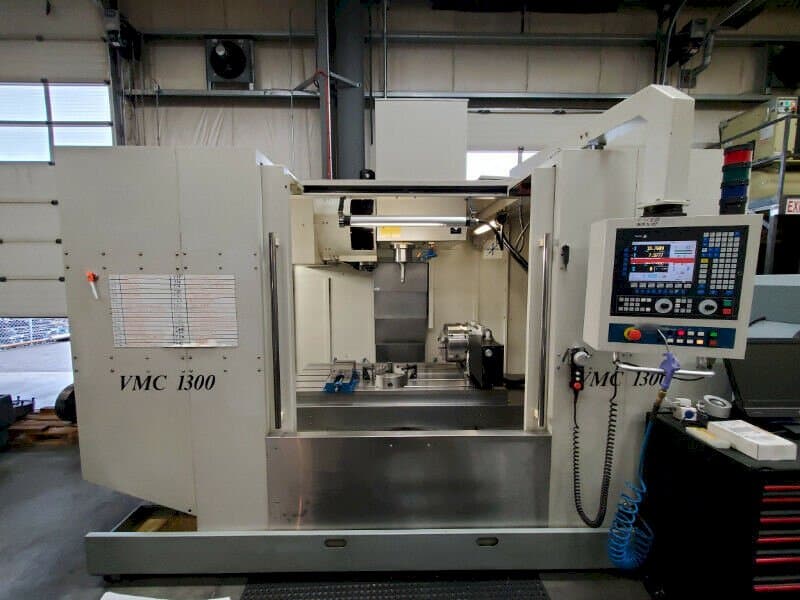

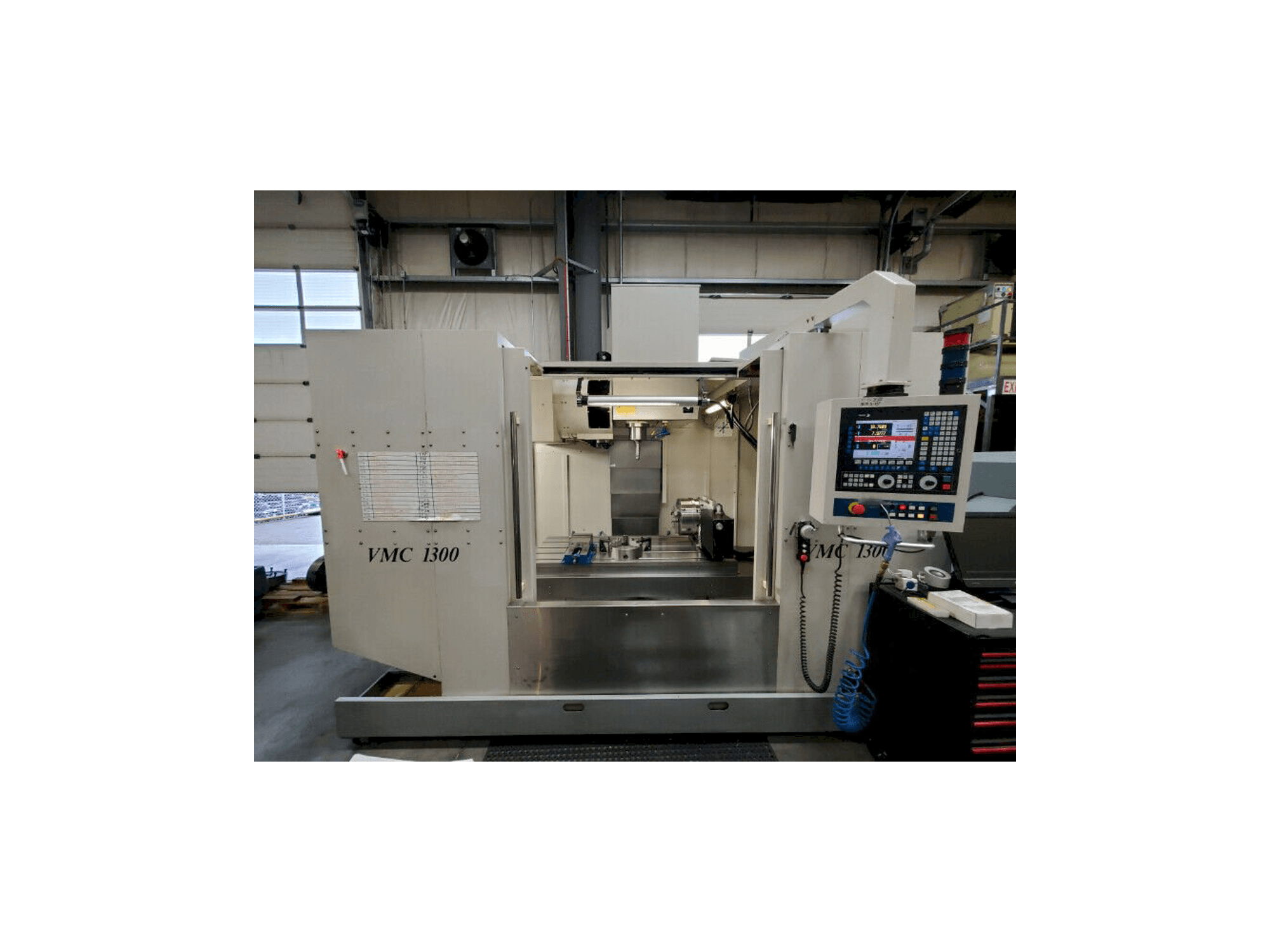

This Microcut Modern VMC 1300 Vertical Machining Center was made in 2006. This reliable machine can work with a spindle speed up to 10000 rpm.
Overview
- brand: MICROCUT
- year: 2006
- MODEL: Modern VMC 1300
- production hours: 0
- application type: Milling
- Location: Canada
- machine type: Vertical Machining Centre
Technical Information - MICROCUT Modern VMC 1300
Main drive
- Spindle speed range: 10000 1/MIN
- Spindle motor power: 11/15 kw
Movement
- X-AXIS Movement: 1300 mm
- X-AXIS Working Feed: 8 m/min
- X-AXIS Rapid traverse: 24 m/min
- Y-AXIS Movement: 710 mm
- Y-AXIS Working Feed: 8 m/min
- Y-AXIS Rapid traverse: 24 m/min
- Z-AXIS Movement: 710 mm
- Z-AXIS Working Feed: 8 m/min
- Z-AXIS Rapid traverse: 24 m/min
Table
- Outer length: 500 mm
- Outer width: 660 mm
- TSlots size: 18 X 135 X 6 mm
- Min distance between vertical spindle and table: 120 mm
- Max distance between vertical spindle and table: 830 mm
- Table load: 1500 kg
Tools
- Number of stations: 32
- Max weight: 8 kg
- Max tool diameter: 75 mm
- Max tool length: 300 mm
- Type of tool holder: ISO 40
Additional Information
Machine Benefits
Technical Machine Benefits
- Spindle diameter: 70 mm
- Atc type arm
- 32 tools
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
