Mitsubishi Electric - ML3015LV PLUS IITR-LAS-MIT-2011-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Mitsubishi Electric ML3015LV PLUS II Laser Cutting Machine

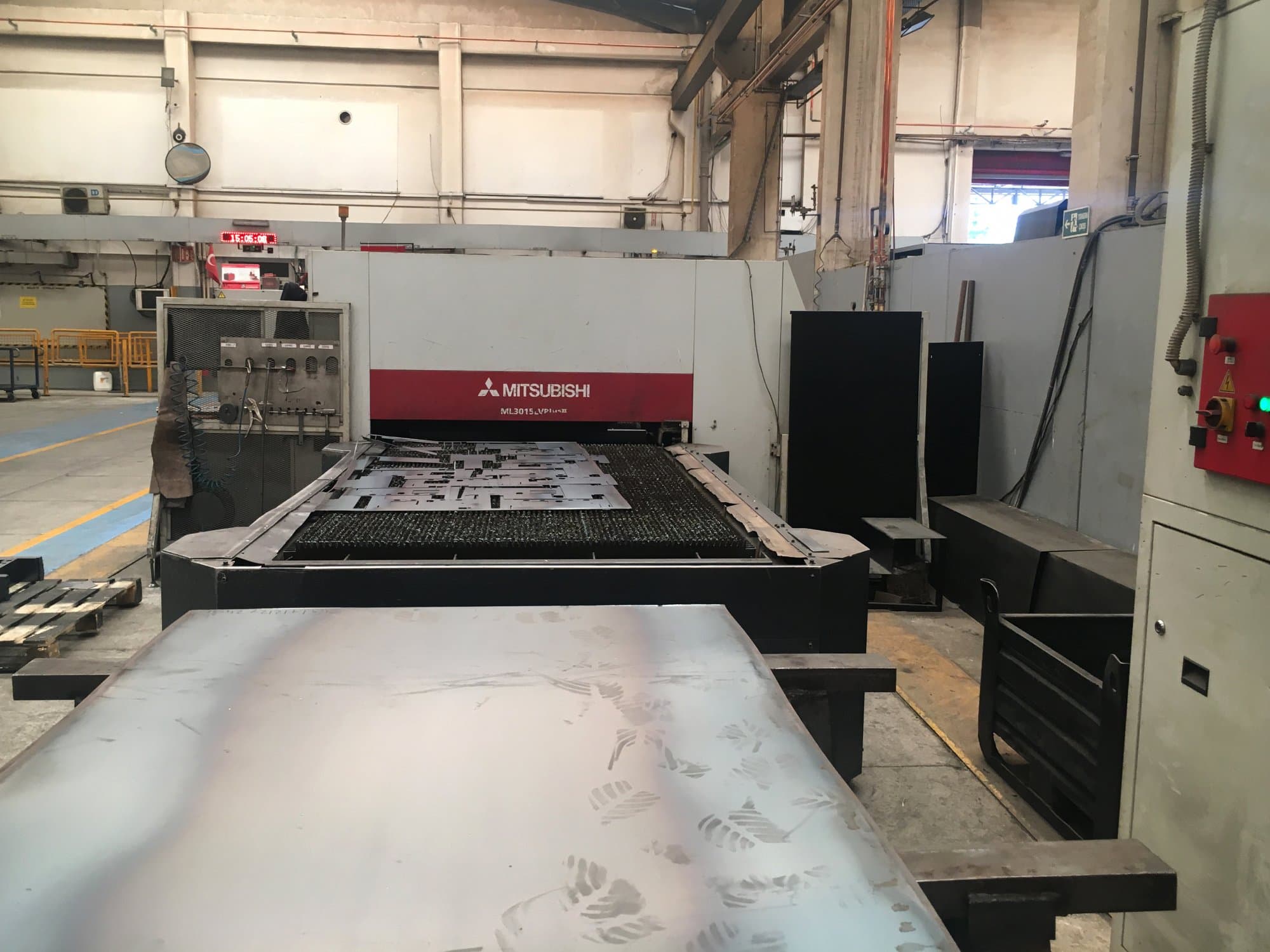

This Mitsubishi Electric ML3015LV PLUS II Laser Cutting Machine was manufactured in 2011 in Japan and has a working record of 23884 production hours. Equipped with a LC20BP2 Control unit by Mitsubishi, this 4.5 kW Laser Cutter has mainly worked with carbon steel sheets with 4-5 mm of thickness. This model consumes less CO2 than other machines of its kind due to the innovative cross-flow laser head and its air-proof resonator. The dual pallet system changes workpieces within 25 seconds. A chiller and a dust collector are included in the delivery.
Overview
- brand: Mitsubishi Electric
- year: 2011
- MODEL: ML3015LV PLUS II
- production hours: 23884
- application type: Cutting
- Location: Turkey
- machine type: CO2 Laser Cutting Machine
- control unit brand: MITSUBISHI
Technical Information - Mitsubishi Electric ML3015LV PLUS II
General Data
- Measurements width: 4650 mm
- Measurements depth: 10600 mm
- Measurements height: 2300 mm
- Machine weight: 12800 kg
Control Unit
- Model: LC20BP2
- Brand: MITSUBISHI
Main drive
- Laserpower: 4.5 kW
- Laser type: CO2
- Laser brand: Mitsubishi Electric
Movement
- X-AXIS Movement: 3100 mm
- Y-AXIS Movement: 1565 mm
- Z-AXIS Movement: 150 mm
Workpiece
- Workpiece x: 3050 mm
- Workpiece z: 1525 mm
Max Material thickness
- Steel: 25 mm
- Stainless steel: 18 mm
Media
- Main electronic connection: 200 V
Additional Equipment
- - Chiller
- - Dust Collector
- - UPS Power Supply (upon request)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
