Mitutoyo QVT1 X302PIL-C Measuring Machine

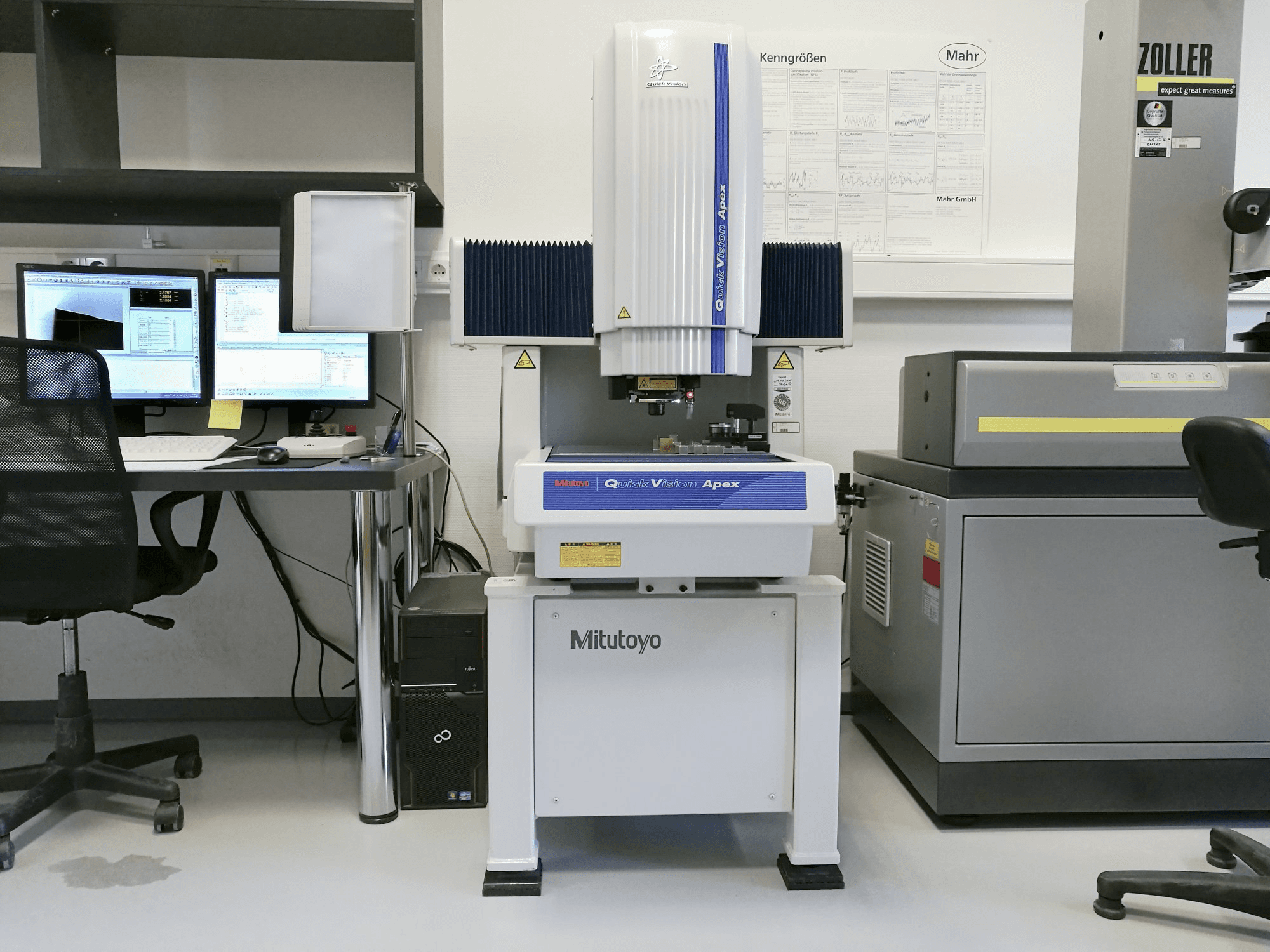

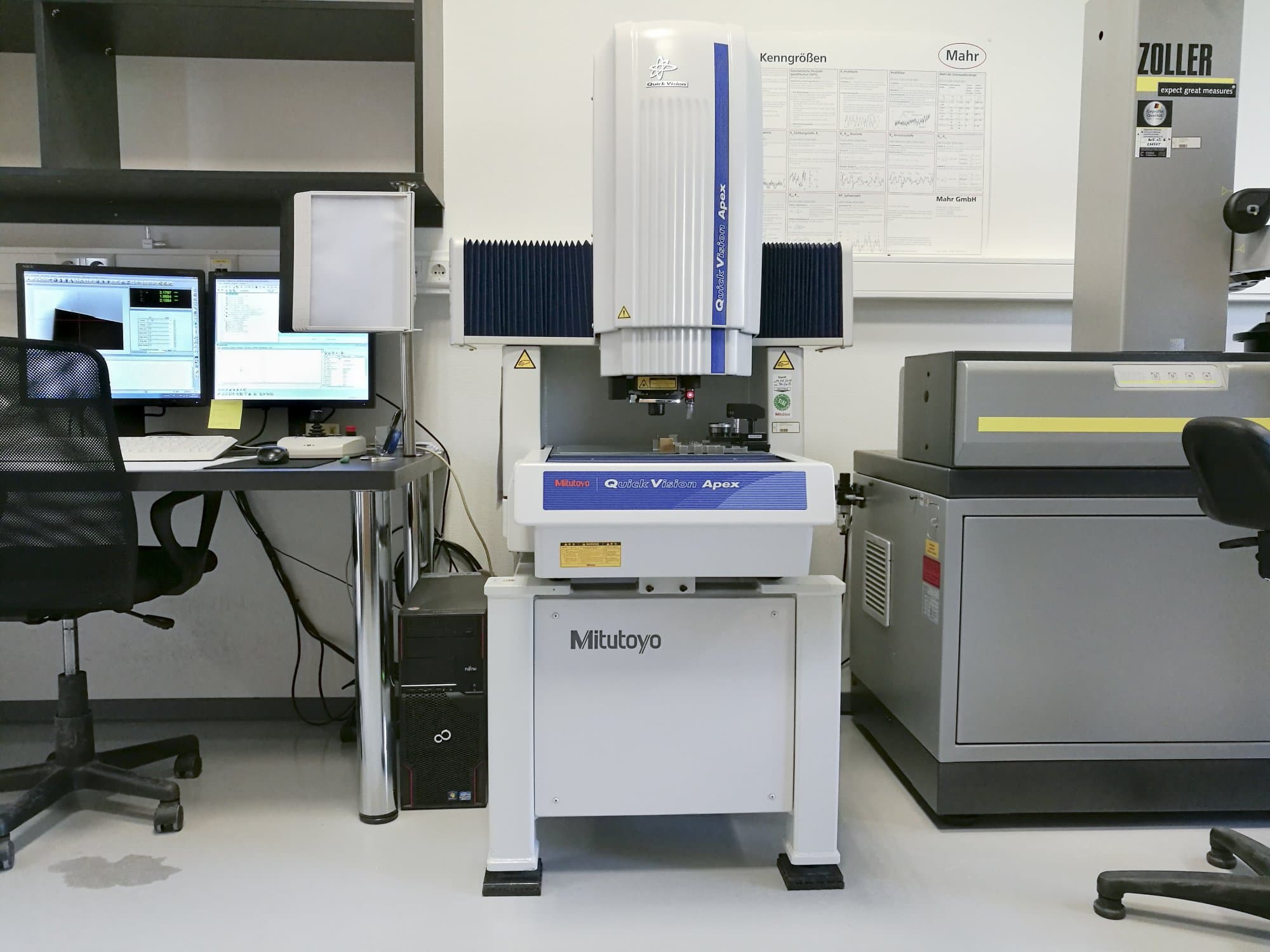

This Mitutoyo QVT1-X302PIL-C Measuring Machine from 2011 has an operating record of only 750 hours. Standing in an excellent condition due to its low wear, the machine is operated through a MiCat QVPAK (version 11.101) Control Unit, which also includes a remote control. Furthermore, several pieces of additional equipment are included: a lens 02AKT300 HR2,5x; a lens 02AKT250 HR1x; a Renishaw TP 200 Probe Kit; two fastening brackets and QVPAK Software.

Overview

brand: Mitutoyo
year: 2011
MODEL: QVT1-X302PIL-C
production hours: 750
application type: Measuring
Location: Germany
machine type: Optical Measurement Machine
availability: Sold

Technical Information - Mitutoyo QVT1-X302PIL-C

General Data

Measurements width: 859 mm
Measurements depth: 951 mm
Measurements height: 1609 mm
Machine weight: 360 kg

Control Unit

Release: 11.101
Remote control: Yes

Main drive

Camera: High-sensitivity CCD camera B&W
Illumination: Surface-White LED, Contour-White LED, Programmable Ring Light-White LED
Resolution: 0.0001 mm

Movement

X-AXIS Movement: 300 mm
X-AXIS Working Feed: 300 mm/s
X-AXIS Largest measurement error: -0.761 µm
X-AXIS Accuracy: E1x1-(1.5+3L/1000) µm
Y-AXIS Movement: 200 mm
Y-AXIS Working Feed: 300 mm/s
Y-AXIS Largest measurement error: 0.488 µm
Y-AXIS Accuracy: E1y2-(1.5+3L/1000) µm
Z-AXIS Movement: 200 mm
Z-AXIS Working Feed: 300 mm/s
Z-AXIS Largest measurement error: -0.982 µm
Z-AXIS Accuracy: E1z3-(1.5+4L/1000) µm
X-Y-Plane(Diagonal_1) Largest measurement error: 1078 µm
X-Y-Plane(Diagonal_1) Accuracy: E2xy4-(2+4L/1000) µm
X-Y-Plane(Diagonal_2) Largest measurement error: 1326 µm
X-Y-Plane(Diagonal_2) Accuracy: E2xy5-(2+4L/1000) µm

Workpiece

Workpiece z: 200 mm
Workpiece weight: 20 kg

Table

Outer length: 399 mm
Outer width: 271 mm

Media

Main electronic connection: 230 V / 50 Hz

Additional Equipment

- QVPAK Software
- 1x lens 02AKT300 HR2,5x
- 1x lens 02AKT250 HR1x
- 1x Renishaw TP 200 Probe Kit
- 2x Fastening bracket

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
