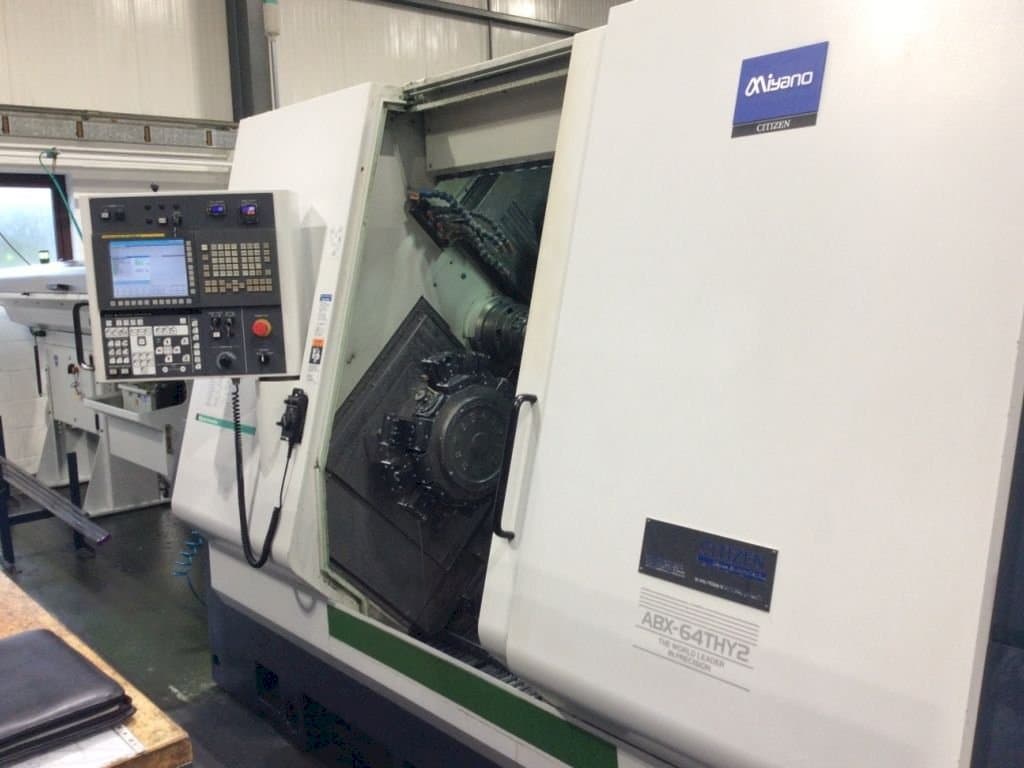

Front view of Miyano ABX 64 THY2 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Miyano ABX 64 THY2

Photo Gallery

Miyano - ABX 64 THY2IE-TUR-MIY-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Miyano ABX 64 THY2 Lathe

This Miyano ABX 64 THY2 Lathe was manufactured in 2014 in Japan and has been operative for 18000 hours. Equipped with a FANUC Series 31i Model B Control unit, this machine stands out for being a 3 turret, twin spindle lathe. The machine comes with tooling value around 30000€ worth.

Overview

brand: Miyano
year: 2014
MODEL: ABX 64 THY2
production hours: 18000
application type: Turning
Location: Ireland
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - Miyano ABX 64 THY2

General Data

Measurements width: 3290 mm
Measurements depth: 2204 mm
Measurements height: 2220 mm
Machine weight: 11350 kg

Control Unit

Model: Series 31i Model B
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 5000 1/MIN

Movement

X-AXIS Movement: 190 mm
Y-AXIS Movement: 80 mm
Z-AXIS Movement: 270/550 mm

Turret

Number of turrets: 3

Tools

Slots in storage: 36
Max tool diameter: 40 mm

Media

Main electronic connection: 400 V
Power consumption: 49 kVA

Additional Equipment

- Hydrajet MHP30-1000-3 High Pressure Coolant System
- Iemca Master 865-33, 3 Metre Bar Feed
- Large Selection of Tooling (see list)
- 2 x 6" Hydraulic Chucks

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle 1 - 5000rpm
- - Spindle 2 - 4000rpm
- - 64mm bar work
Qualitative Machine Benefits:
- - Annually serviced

Extra information

- Available for download additional tooling list

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
