Miyano - BNA-42DHYCZ-TUR-MIY-2011-00001

Name: Miyano BNA-42DHY
Brand: Miyano
SKU: CZ-TUR-MIY-2011-00001
Price: 70000 EUR
Availability: InStock

70,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Miyano BNA-42DHY For Sale | gindumac.com

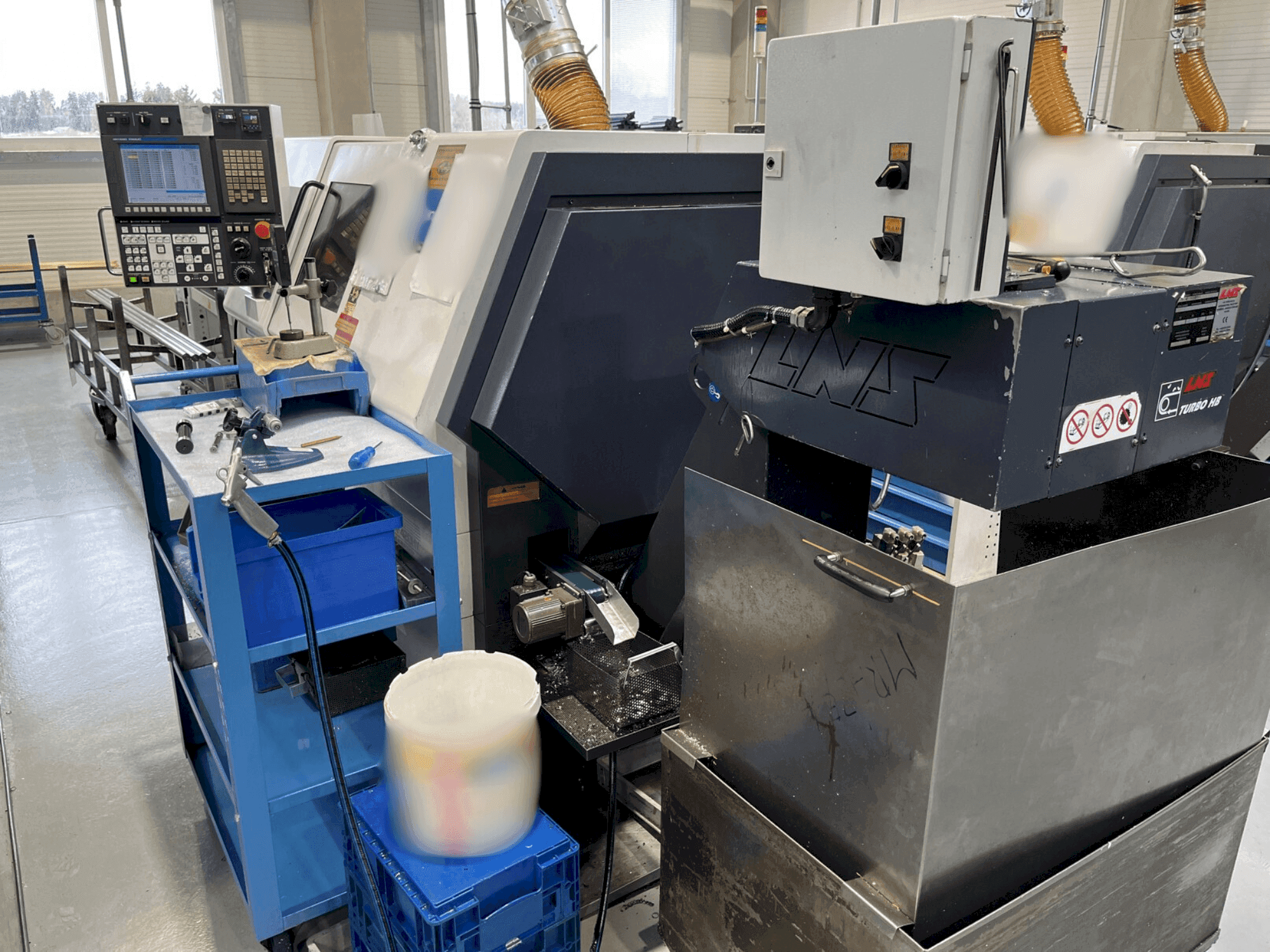

This 7-axis Miyano BNA-42DHY turn-mill centre was manufactured in 2011. It features a main spindle with a maximum bar diameter of 42 mm and speeds up to 6000 rpm, complemented by a counter-spindle that handles up to 34 mm and 5000 rpm. Equipped with two turrets, upper with 8 positions and lower with 6, it offers versatile machining options. Includes a chips conveyor and an IEMCA BOSS 545 E bar loader. Contact us for more information about this machine.

Overview

brand: Miyano
year: 2011
MODEL: BNA-42DHY
application type: Turning
Location: Czech Republic
machine type: Turn-Mill Centre

Technical Information - Miyano BNA-42DHY

General Data

Measurements width: 1460 MM
Measurements depth: 2220 MM
Measurements height: 1700 MM
Machine weight: 3100 KG

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 7.5/5.5 kW
Number of axis: 7

Movement

X-AXIS Movement: 140 mm
Y-AXIS Movement: 70 (+/-35) mm
Z-AXIS Movement: 235 mm

Tools

Number of stations: 8

Media

Chip conveyor: Yes

Additional Equipment

- Bar Loader: IEMCA BOSS 545 E

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Live tools power: 1. 0 kw
- - X/z stroke: 140/310 mm
- - Main spindle max. Bar diameter: 42 mm
- - Main spindle travel: 100 mm
- - Main spindle c axis indexing precision: 0. 001°
- - Counter-spindle: max. Bar diameter: 34 mm, spindle speeds: 5000 rpm, spindle power: 5. 5/3. 7 kw, c axis indexing precision: 0. 001°
- - Total installed power: 30 kva

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
