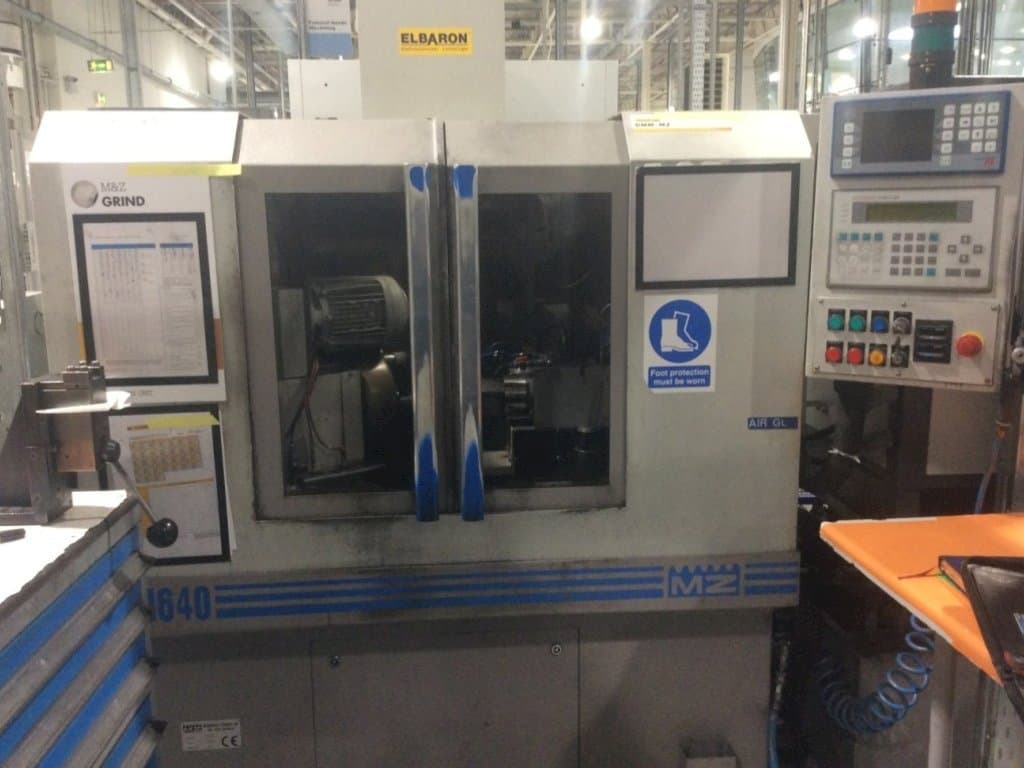

Front view of Monnier & Zahner M640 CNC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Monnier & Zahner M640 CNC

Photo Gallery

Monnier & Zahner - M640 CNCIE-GRI-MON-2002-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Monnier & Zahner M640 CNC Grinding Machine

This Monnier & Zahner M640 CNC Grinding Machine was manufactured in the year 2002 in Germany. It is equipped with a Hauser COMTAC 3000 control unit. This machine can work with a spindle speed range up to 6000 rpm. It includes a coolant filtration unit, and an electrostatic filter. It presents a well maintained status.

Overview

brand: Monnier & Zahner
year: 2002
MODEL: M640 CNC
application type: Grinding
Location: Ireland
machine type: Grinding Machine

Technical Information - Monnier & Zahner M640 CNC

General Data

Measurements width: 1650 mm
Measurements depth: 2400 mm
Measurements height: 2200 mm
Machine weight: 1750 kg

Control Unit

Model: COMTAC 3000
CNC main language: English
CNC language customizable: Yes

Main drive

Spindle speed range: 6000 1/MIN

Movement

X-AXIS Movement: 120 mm

Workpiece

Workpiece drm: 60 mm

Media

Main electronic connection: 380 V

Additional Information

Machine history

Material type: Ti64
End product: Medical device parts (medial implants like hip heads and hip inserts)
Industries: Medical device

Machine Benefits

Technical Machine Benefits:
- - High accuracy machine
- - Largest workpiece diameter 60 mm
- - Smallest workpiece diameter 22 mm
- - Feed high speed max. X-axis 6000 mm/min
- - Feed high speed max. Y-axis 6000 mm/min
- - Type of workpiece clamping pneum. Chuck
- - Max. Number of revolutions workpiece spindle 2000 min-1
- - Max. Number of revolutions tool spindle 6000 min-1
Qualitative Machine Benefits:
- - Well maintained machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
