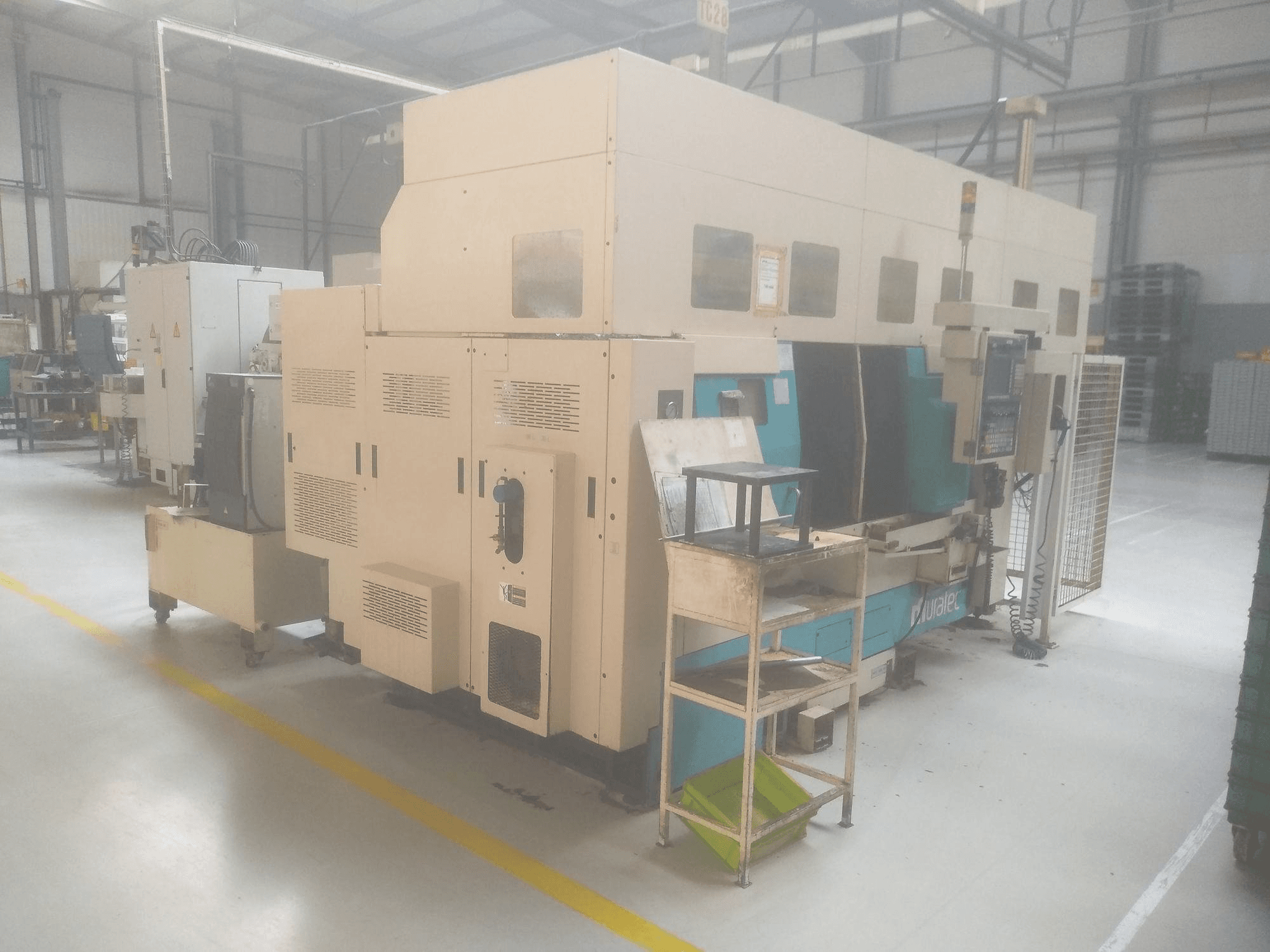

Muratec MT20 Lathe Machine

This Muratec MT20 Lathe Machine was manufactured in the year 2008 in Japan. It is equipped with a Fanuc FS31i control unit. This machine counts with a spindle speed up to 4200 rpm. It has a maximum length of 170 mm and a maximum cutting diameter of 260 mm.

Overview

brand: Muratec
year: 2008
MODEL: MT20
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Muratec MT20

General Data

Measurements width: 5266 mm
Measurements depth: 2205 mm
Measurements height: 3042 mm
Machine weight: 10000 kg

Control Unit

Model: FS31i
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 4200 1/MIN

Movement

X-AXIS Movement: 230 mm
Y-AXIS Movement: 100 mm
Z-AXIS Movement: 250 mm

Workpiece

Workpiece drm: 260 mm

Tools

Slots in storage: 15

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X1, x2 = 230 mm
- - Y1, y2 = 100 mm
- - Z1 = 250 mm ; z2 = 810 mm
- - Over adjacent tool = 200 mm
- - Over turret face = 225 mm
- - Chueck size = 254 mm
- - Maximum cutting diameter = 260 mm
- - Maximum length = 170 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
