NAKAMURA-TOME - STW-40PT-TUR-NAK-2000-00001

Name: NAKAMURA-TOME STW-40
Brand: NAKAMURA-TOME
SKU: PT-TUR-NAK-2000-00001
Price: 79000 EUR
Availability: InStock

79,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used NAKAMURA-TOME STW-40 For Sale | gindumac.com

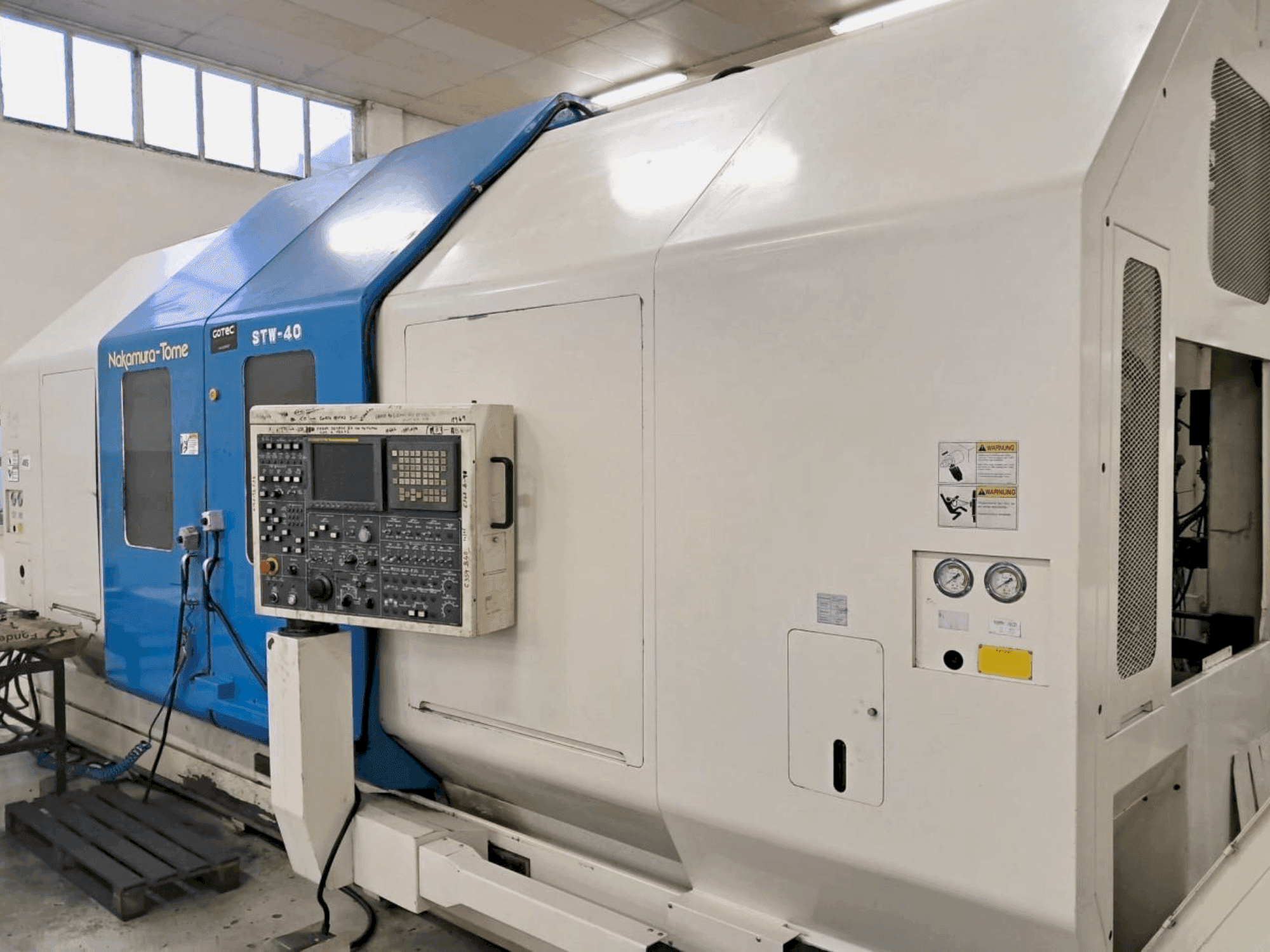

This 9-axis Nakamura-Tome STW-40 was manufactured in 2000, featuring a max. turning diameter of 570 mm and a turning length up to 1550 mm. It boasts spindle speeds up to 3500 rpm and rapid traverse rates of 25 m/min on X-axes and 30 m/min on Z-axes. Ideal for complex machining tasks, it includes a 80-fold WZG magazine and a hinged belt chip conveyor. Contact us for more information about this machine.

Overview

brand: NAKAMURA-TOME
year: 2000
MODEL: STW-40
production hours: 0
application type: Turning
Location: Portugal
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - NAKAMURA-TOME STW-40

General Data

Measurements width: 3500 mm
Measurements depth: 6200 mm
Measurements height: 3200 mm
Machine weight: 22000 kg

Control Unit

Brand: FANUC
Model: 16i-TA

Main drive

Spindle speed range: 30-3500 1/MIN
Spindle bore: 85 mm
Number of axis: 9

Movement

X-AXIS Movement: 400 mm
X-AXIS Rapid traverse: 25 m/min
Y-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 1550 mm
Z-AXIS Rapid traverse: 30 m/min

Additional Information

Additional equipment

12000 rpm for upper WZG spindle with 11/7.5 kW drive power and 79/47 Nm torque
80-fold WZG magazine
Automatic start-up and shut-down of the machine with warm-up program function
WZG breakage control with scanning flag for upper WZG spindle
2 HD - Brinkmann pumps for upper WZG spindle and lower turret (pump capacity = 45 liters per minute)
Hinged belt chip conveyor with ejection to the right

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
