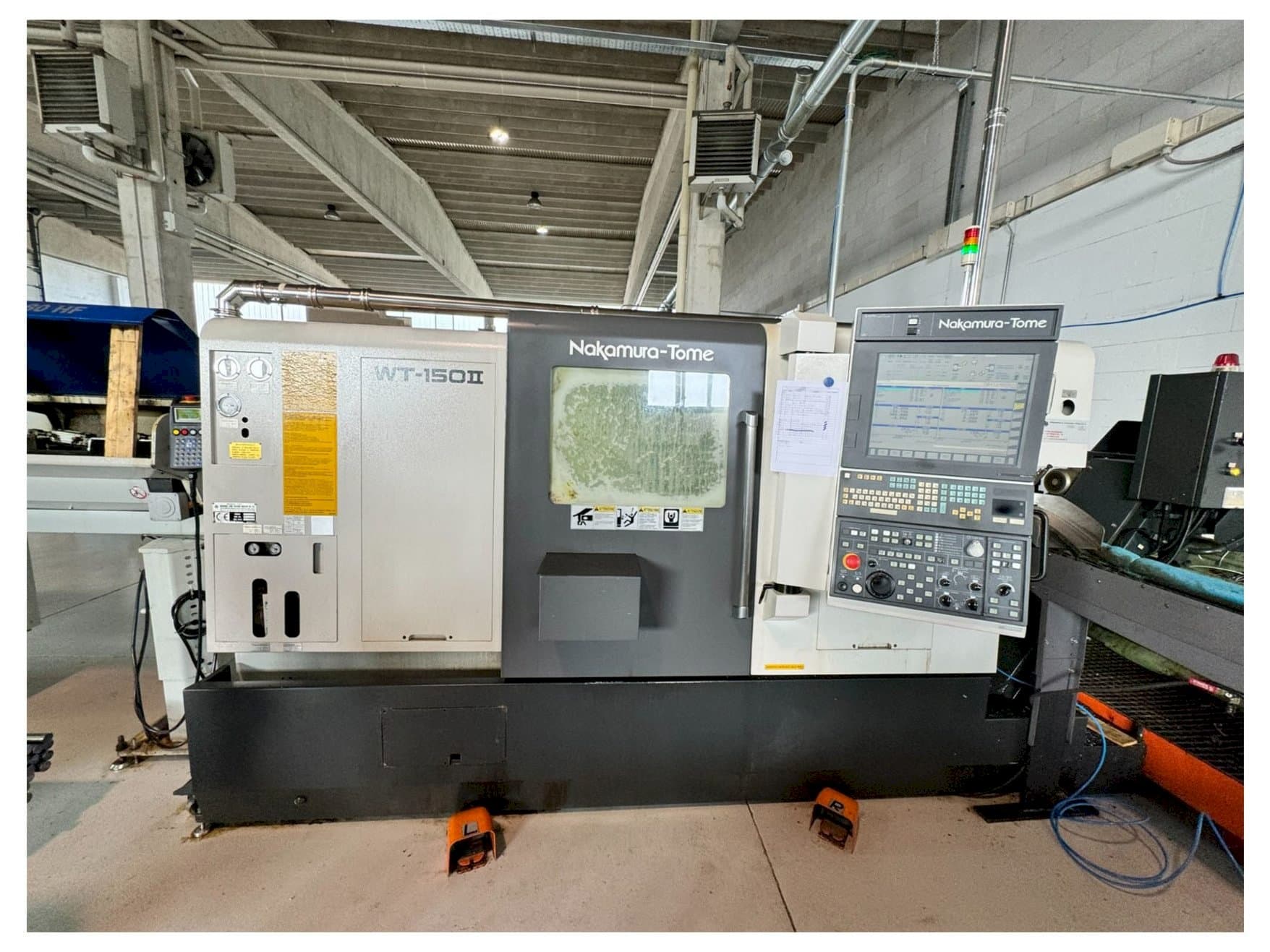

Front view of NAKAMURA WT 150 II machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

NAKAMURA WT 150 II

Photo Gallery

NAKAMURA - WT 150 IIIT-TUR-NAK-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
NAKAMURA WT 150 II Lathe

This NAKAMURA WT 150 II Lathe was made in 2013 and ahs 6023 production hours. It is equipped with a Fanuc Series 31 iB control unit and has 5 axis. The machine has a spindle speed of 59-5000 rpm.

Overview

brand: NAKAMURA
year: 2013
MODEL: WT 150 II
production hours: 6023
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - NAKAMURA WT 150 II

General Data

Machine weight: 9500 kg

Control Unit

Model: Series 31 iB
Brand: FANUC

Main drive

Spindle speed range: 59 - 5000 1/MIN
Number of axis: 8

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar capacity. 65 mm
- - Spindles distance: 800 mm.
- - Lower turret 12 positions with live tools
- - Turning dia: 190 mm
- - C axis // x1/x2 axis // z1/z2 axis // y and b2 axis
- - Spindle and subspindle
- - Part catcher type g
Qualitative Machine Benefits:
- - Air and water jet
- - Upper turret 12 positions with live tools
- - Year 5-2013 installed in 2014
- - Full equipment included
- - Collets, driven tools, toolholders
- - 2 x high pressure pumps
- - Excellent conditions

Extra information

- Cnc Multi Axis Turning Center NAKAMURA WT 150 II Cnc FANUC 31 iB Y axis Working hours 6023 CE Bar Loader IEMCA MASTER 80 HF Year 2014 CE With full equipment

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
