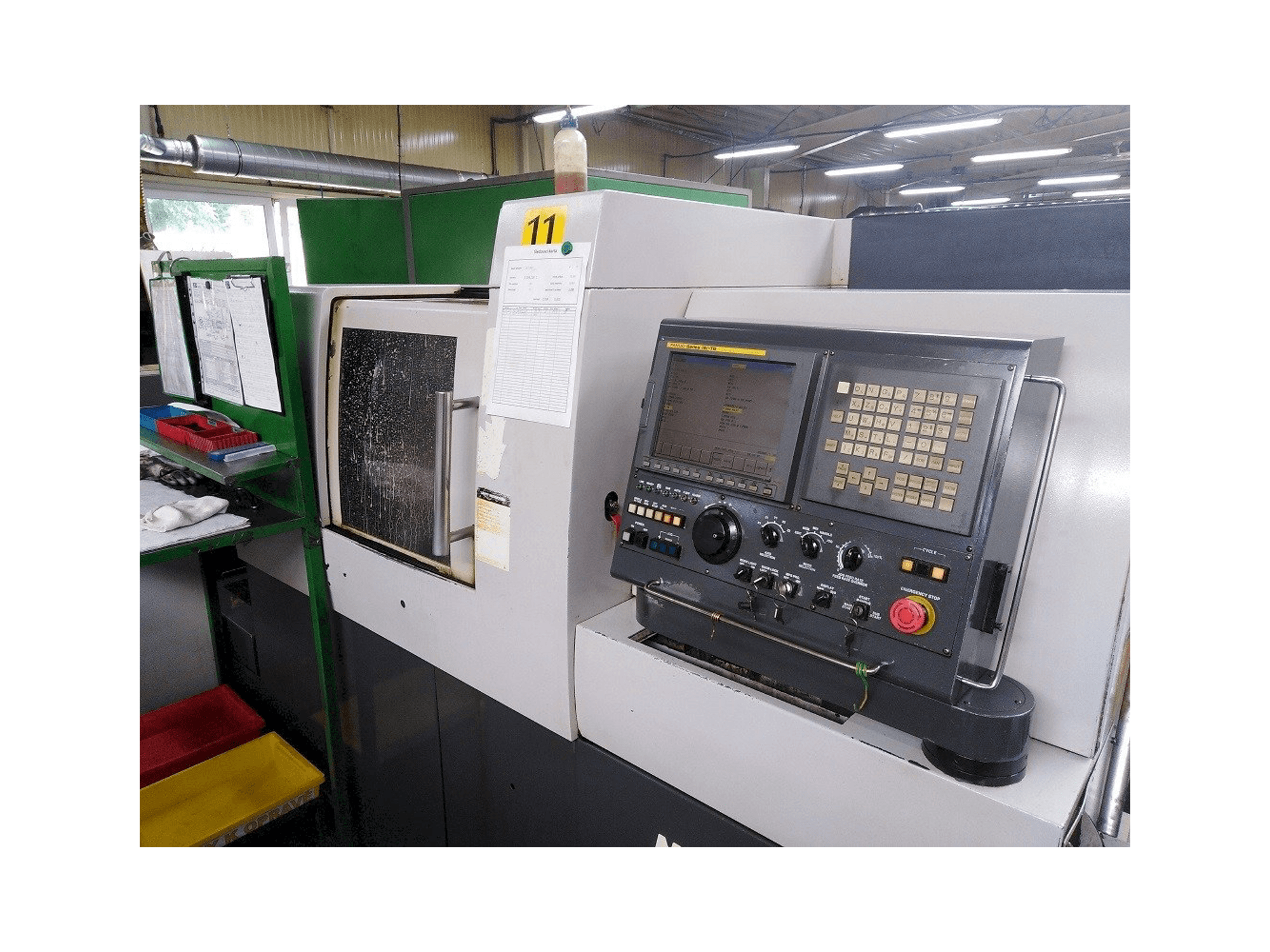

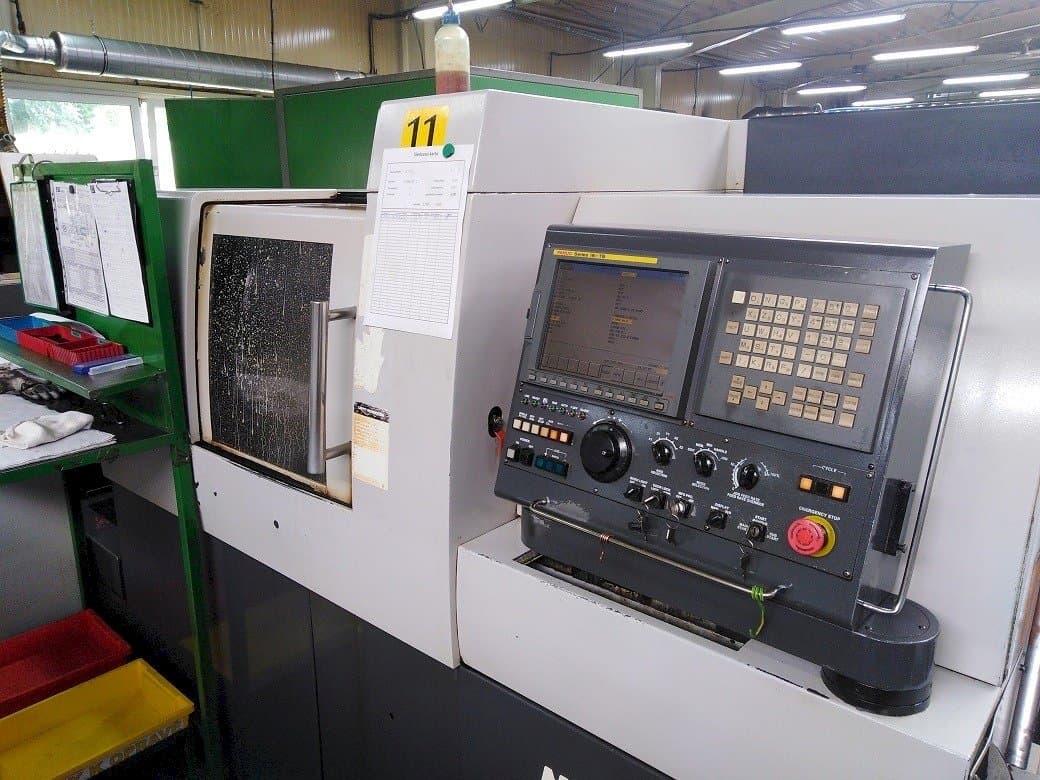

This Nexturn SA-38E Lathe was manufactured in South Korea in 2006. It has 42500 operation hours, of which 14408 are cutting time. It is equipped with a Fanuc Series 18i-TB control unit. This 7 axis machine can works with a spindle speed up to 8000 rpm. It has a new central lubrication on sub-spindle, new guideways and new axis screws on X2, Z2 axis.
Overview
- brand: Nexturn
- year: 2006
- MODEL: SA-38E
- production hours: 42500
- application type: Turning
- Location: Czech Republic
- machine type: Swiss Type Turning Machine
- control unit brand: FANUC
Technical Information - Nexturn SA-38E
Control Unit
- Control Brand: FANUC
- Control Model: Series 18i-TB
Dimensions
- Machine Depth: 1375 mm
- Machine Height: 1670 mm
- Machine Weight: 3500 kg
Movement
- Number of Axes: 7
Technical Specification
- Spindle Power: 5.5 kW
- Spindle Speed: 8000 RPM
Additional Information
Additional equipment
- Barfeed magazine IEMCA BOSS 542 (3000 mm)
Machine Benefits
Qualitative Machine Benefits
- Includes machine manual
- Good condition, regularly maintained
- 2021 - new central lubrication on sub-spindle
- 2021 - new guideways and new axis screws on x2, z2 axis
Technical Machine Benefits
- Simultaneous axis operation
- Maximum turning bar diameter: 38 mm
- Maximum turning bar length: 210 (250) mm
- 7 controlled axis - x1, z1, y, x2, z2, c1, c2
- Subspindle: 1. 5 - 2. 2 kw
- Cross drill/milling unit: 0. 55 / 1. 1 kw
- Work feedrate: 6000 mm/min
- Rapid traverse rate: 32 mt/min
- Max. Drilling/tapping main dia. : 12/m10
- Max. Drilling/tapping cross & sub dia. : 10/m8
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
