ONA - AX3ES-EDM-ONA-2007-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- ONA AX3 Erosion Machine

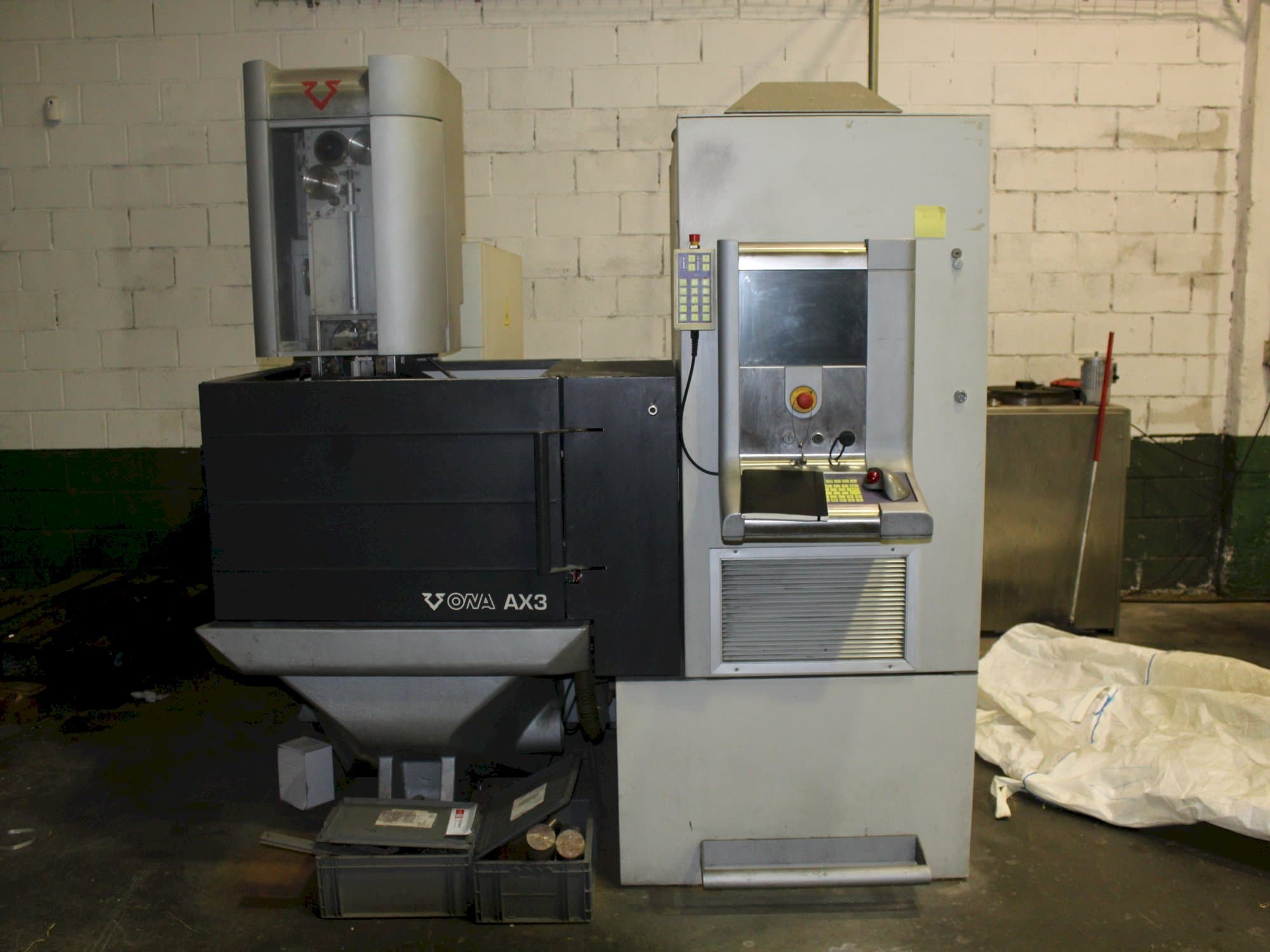

This ONA AX3 Erosion Machine was manufactured in 2007 in Spain. Operated through a control unit of the same brand, this machine presents perfectly good conditions, as it has been given a yearly maintenance.
Overview
- brand: ONA
- year: 2007
- MODEL: AX3
- application type: EDM
- Location: Spain
- machine type: Die-Sinking EDM Machine
- control unit brand: FANUC
Technical Information - ONA AX3
General Data
- Measurements width: 2287 mm
- Measurements depth: 2406 mm
- Measurements height: 2237 mm
- Machine weight: 3100 kg
Control Unit
- Model: AX
- CNC main language: Spanish
- CNC language customizable: Yes
- Brand: FANUC
Main drive
- Working current: 25 A
- Wire diameter: 0.15 mm
Movement
- X-AXIS Movement: 400 mm
- Y-AXIS Movement: 300 mm
- Z-AXIS Movement: 250 mm
Workpiece
- Workpiece x: 800 mm
- Workpiece y: 700 mm
- Workpiece z: 250 mm
- Workpiece weight: 1000 kg
Additional Information
- Technical Machine Benefits:
- - Conical cutting angle +-8. 5º / 250 mm (max. Height z)
- Qualitative Machine Benefits:
- - Perfect conditions
- - Yearly maintenance
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
