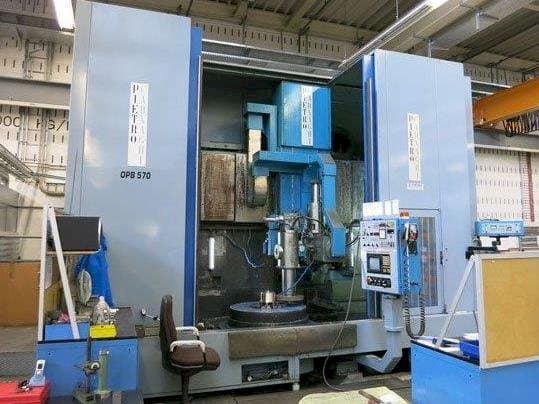

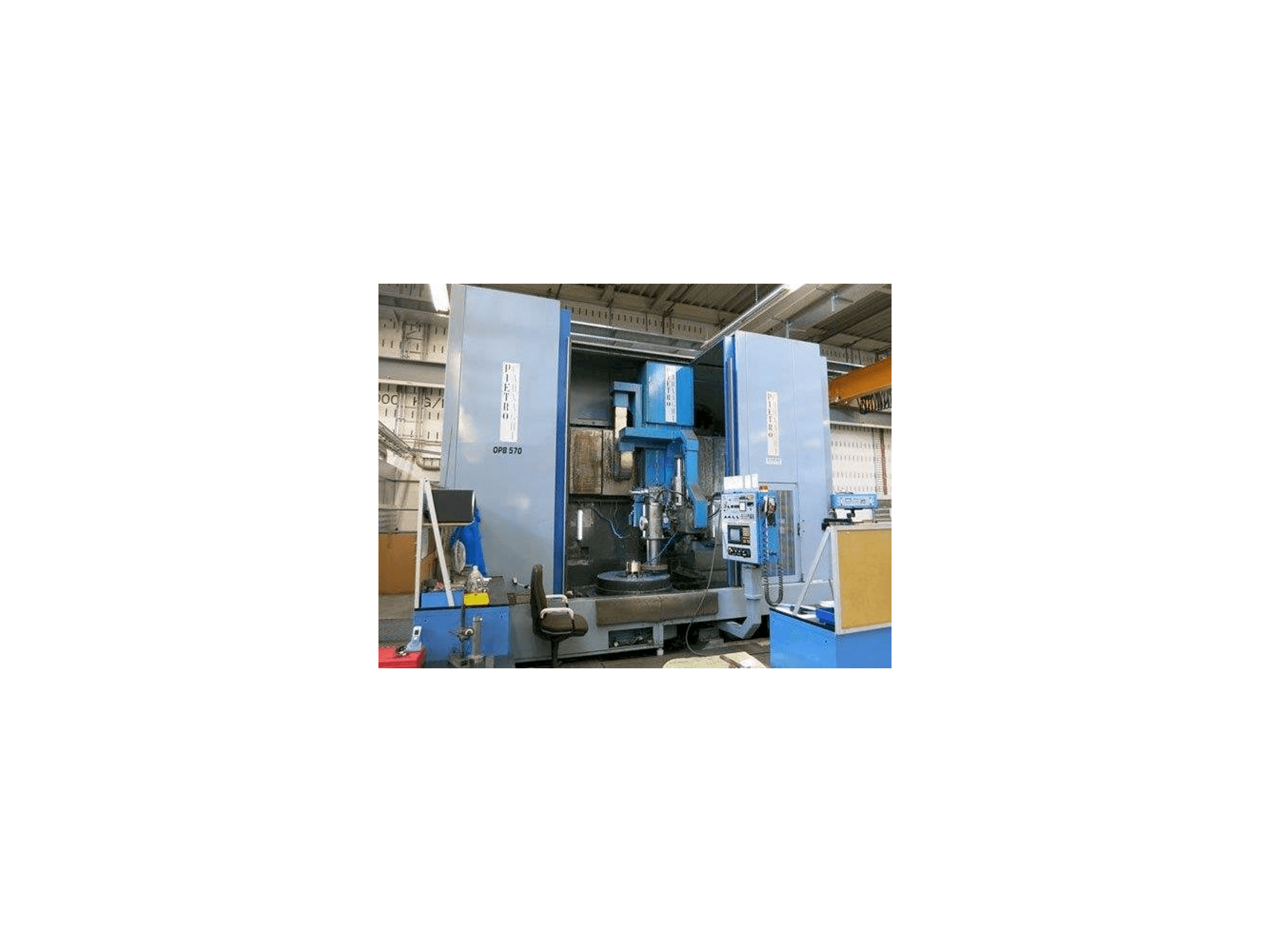

Front view of PIETRO CARNAGHI ATF 8 SH machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

PIETRO CARNAGHI ATF 8 SH

Photo Gallery

PIETRO CARNAGHI - ATF 8 SHIT-MIL-PIE-1980-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
PIETRO CARNAGHI ATF 8 SH Grinding Machine

This PIETRO CARNAGHI ATF 8 SH Grinding Machine was built in 1980 and has been retrofitted in the year 2004. It is equipped with a SINUMERIK System 3 control unit. The machine has 4 spindles, 2 of them works with a speed range between 1000 - 2800 rpm and spindle number 3 has a speed range 3000 - 6000 rpm. It includes automatic balancing device and several wheel-holder flanges.

Overview

brand: PIETRO CARNAGHI
year: 1980
MODEL: ATF 8 SH
production hours: 0
application type: Turning
Location: Italy
machine type: Vertical Turning Machine
control unit brand: SIEMENS

Technical Information - PIETRO CARNAGHI ATF 8 SH

General Data

Measurements width: 8500 mm
Measurements depth: 5000 mm
Measurements height: 4600 mm
Machine weight: 42000 KG

Control Unit

Model: SINUMERIK System 3
Brand: SIEMENS

Main drive

Number of spindles: 4
Spindle speed range: 1000-2800 1/MIN
Spindle motor power: 12 kW

Workpiece

Workpiece weight: 2000 KG

Media

Main electronic connection: 400V
Internal cooling: Yes

Additional Information

Additional equipment

Automatic balancing device
Tapering device
Several wheel-holder flanges

Machine Benefits

Qualitative Machine Benefits

Wagon for grinding (transverse): vertical displacement 650 mm
Wagon for grinding (transverse) work advances: 0. 0005 - 50 mm/rev
Wagon for grinding (transverse) work advances: 0. 01 - 2000 mm/min
Wagon for grinding (transverse) rapid 4: m/min
Wagon for grinding (transverse) minimum increment: 0. 001 mm
Wagon for grinding (transverse) gyratory precision: 5 sec
Spindle 1 (for external round grinding) wheel diameter: 250 - 400 mm
Spindle 2 (to cheek) power: 15 kw
Spindle 3 (for internal grinding) revolutions: 3000 - 6000 rpm
Spindle 3 wheel diameter: 250 mm

Technical Machine Benefits

Wheelheads: 4 units
Magnetic table diameter: 1000 mm
Maximum passage diameter: 1200 mm
Grinding height: 420 mm
Maximum external grinding diameter: 1100 mm
Turning table diameter: 1000 mm
Turning table revolutions: 5 - 150 rpm
Turning table power: 10 kw
Wagon for grinding (transverse): includes ball screws
Wagon for grinding (transverse): cross travel 1180 mm

Extra Information

- Spindle 3 power: 15 KW - Spindle 4 (for internal grinding) wheel diameter: 50 mm - Spindle 4 minimum grinding diameter: 90 mm - Spindle 4 revolutions 15000 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
