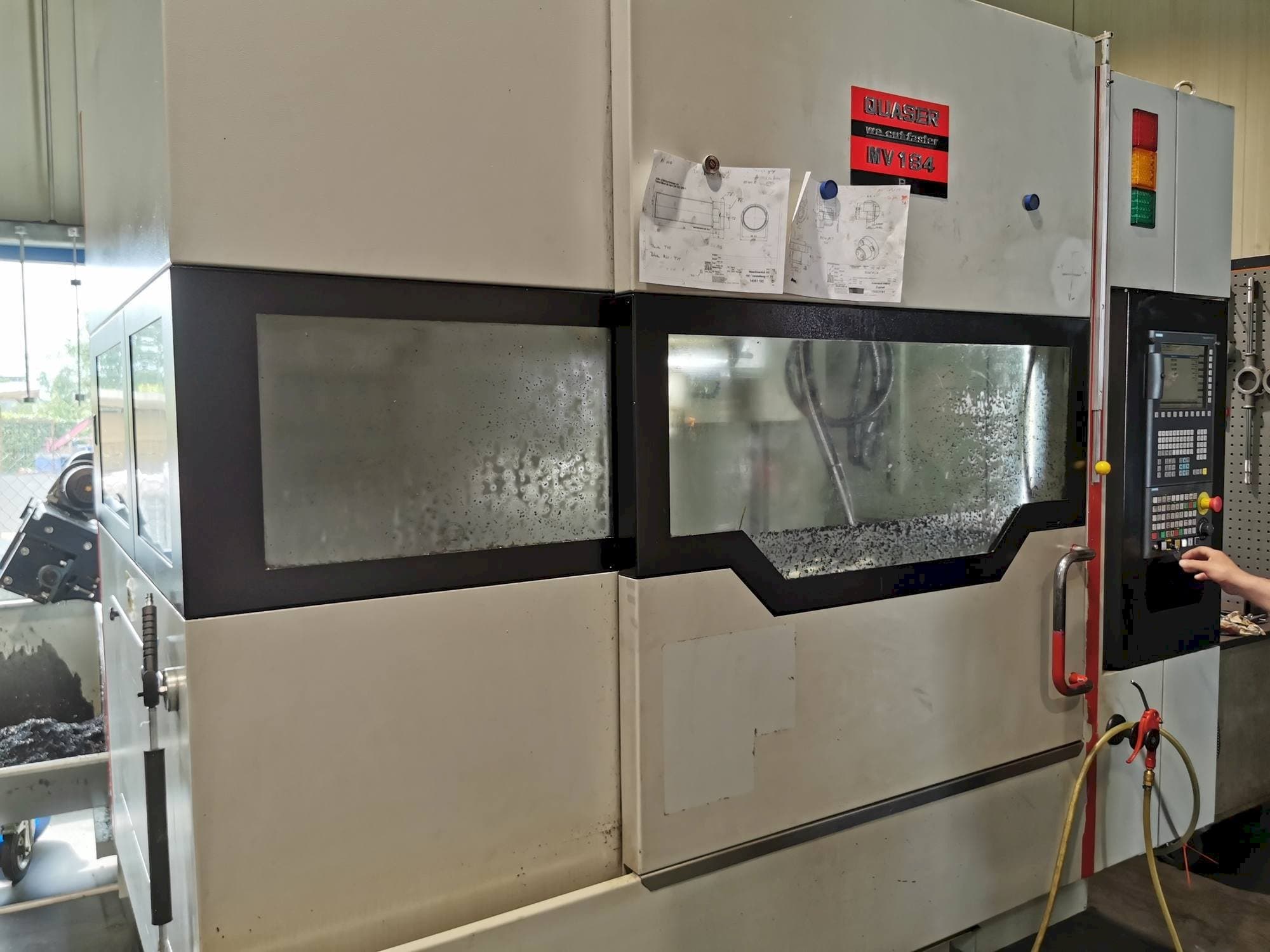

Front view of Quaser MV154APC/P12 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Quaser MV184P

Photo Gallery

Quaser - MV184PDE-MIL-QUA-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

This Quaser MV184P Vertical Machining Center from 2015 was built in Taiwan. It is equipped with a SIEMENS SINUMERIK 828D control unit. This 3+1 axis machine can work with a spindle speed range 9000-20000 rpm and a table dimension of 1200 x 600 mm.

Overview

brand: Quaser
year: 2015
MODEL: MV184P
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Quaser MV184P

General Data

Machine weight: 7390 KG

Control Unit

Model: SINUMERIK 828D
Brand: SIEMENS

Main drive

Spindle speed range: 9000-20000 1/MIN
Tool taper: 40 TAPER
Number of axis: 4

Movement

X-AXIS Movement: 1020 MM
Y-AXIS Movement: 610 MM
Z-AXIS Movement: 610 MM

Table

Outer length: 1200 MM
Outer width: 600 MM
Table load: 500 KG

Tools

Max tool diameter: 76.2 MM
Max tool length: 280 MM

Media

Main electronic connection: 400 V 50 HZ
Power consumption: 25 KVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Magazine positions 30 (std) 48/60 opt
- - Max. Tool diam. Due to neighbor pots are empty 125 mm
- - 3+1 axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
