RAIMANN - KS 310DE-SAW-RAI-1998-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Wood Working
- Raimann KS 310 Sawing machine

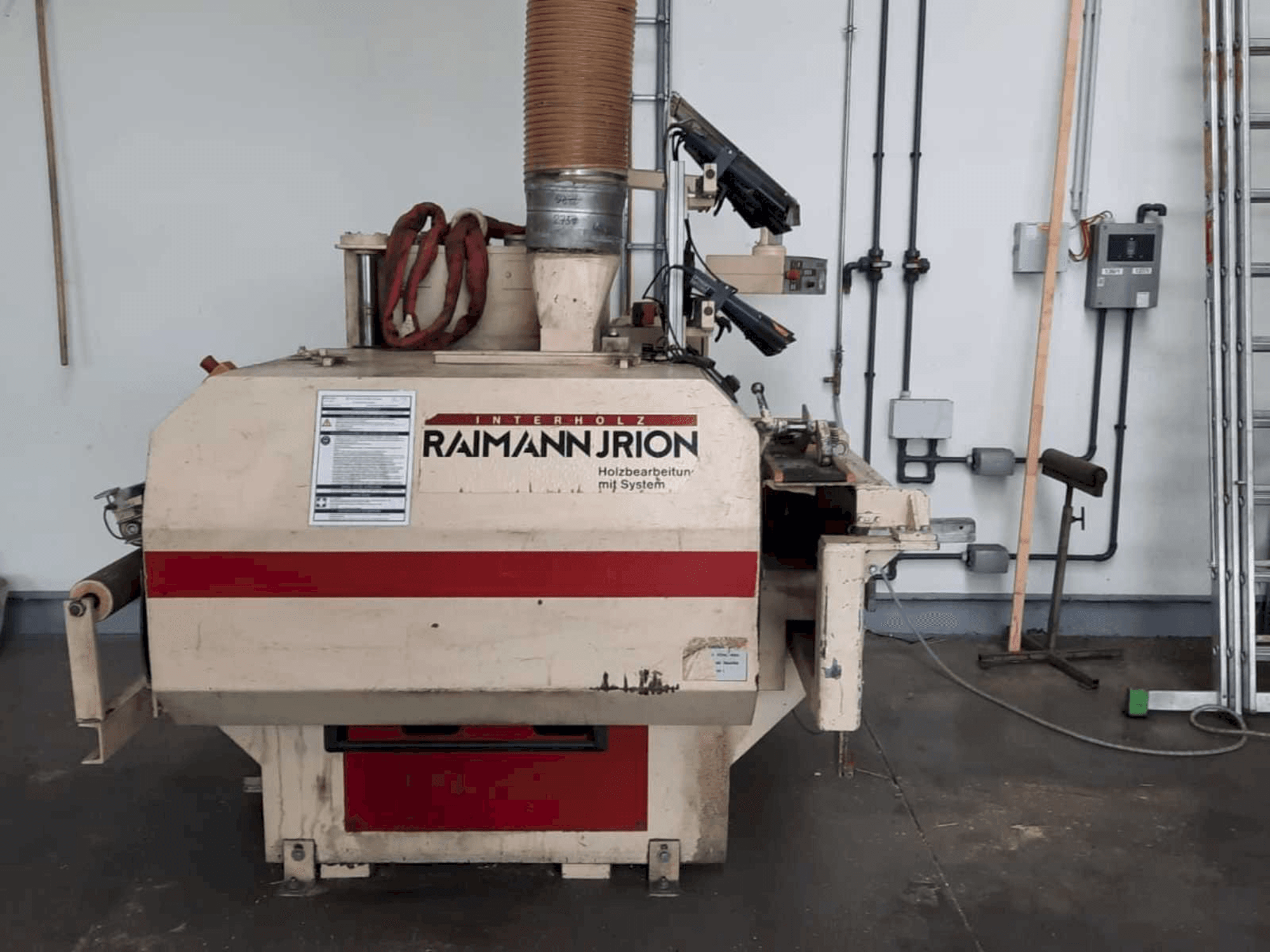

This Raimann KS 310 Sawing machine was manufactured in the year 1998 in Germany and has 5000 production hours. It is equippped with a chain width of 300mm ad saw shaft diameter of 65mm. The min. saw blade diameter is 250 mm and the max. saw blade diamter is 360 mm. With a saw shaft speed of 3900 rpm it can operate with a max. cutting width of 310 mm. See original tech specs as PDF (German) attached below for more details.
Overview
- brand: RAIMANN
- year: 1998
- MODEL: KS 310
- production hours: 5000
- application type: Sawing (Wood)
- Location: Germany
- machine type: Circular Wood Saw
- availability: Sold
Technical Information - RAIMANN KS 310
General Data
- Machine weight: 2200 kg
Main drive
- Main motor power: 37 kW
Media
- Main electronic connection: 400 Volt, 50 Hz
Additional Information
- Technical Machine Benefits:
- - Chain width 340mm
- - Saw shaft diameter 65 mm
- - Diameter of the bush 80 mm
- - Max. Saw blade diameter 360 mm // min. Saw blade diameter 250 mm
- - Saw blade bore (dkn 18x3. 5mm) 80 mm
- - Saw shaft speed 3900 rpm
- - Feed speed, infinitely variable 4-48 m/min
- - Max. Cutting width 310 mm // maximum passage width 800 mm //
- - Max. Cutting height with multi-blade equipment: without pressure rake 120 mm // with pressure rake 105 mm
- - Min. Cutting height 10 mm // min. Workpiece length (standard version with pressure rake) 450 mm
- - The machine was retrofitted with splinter protection and a frequency converter. Frequency inverter: FDS 4000 from Stöber
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
