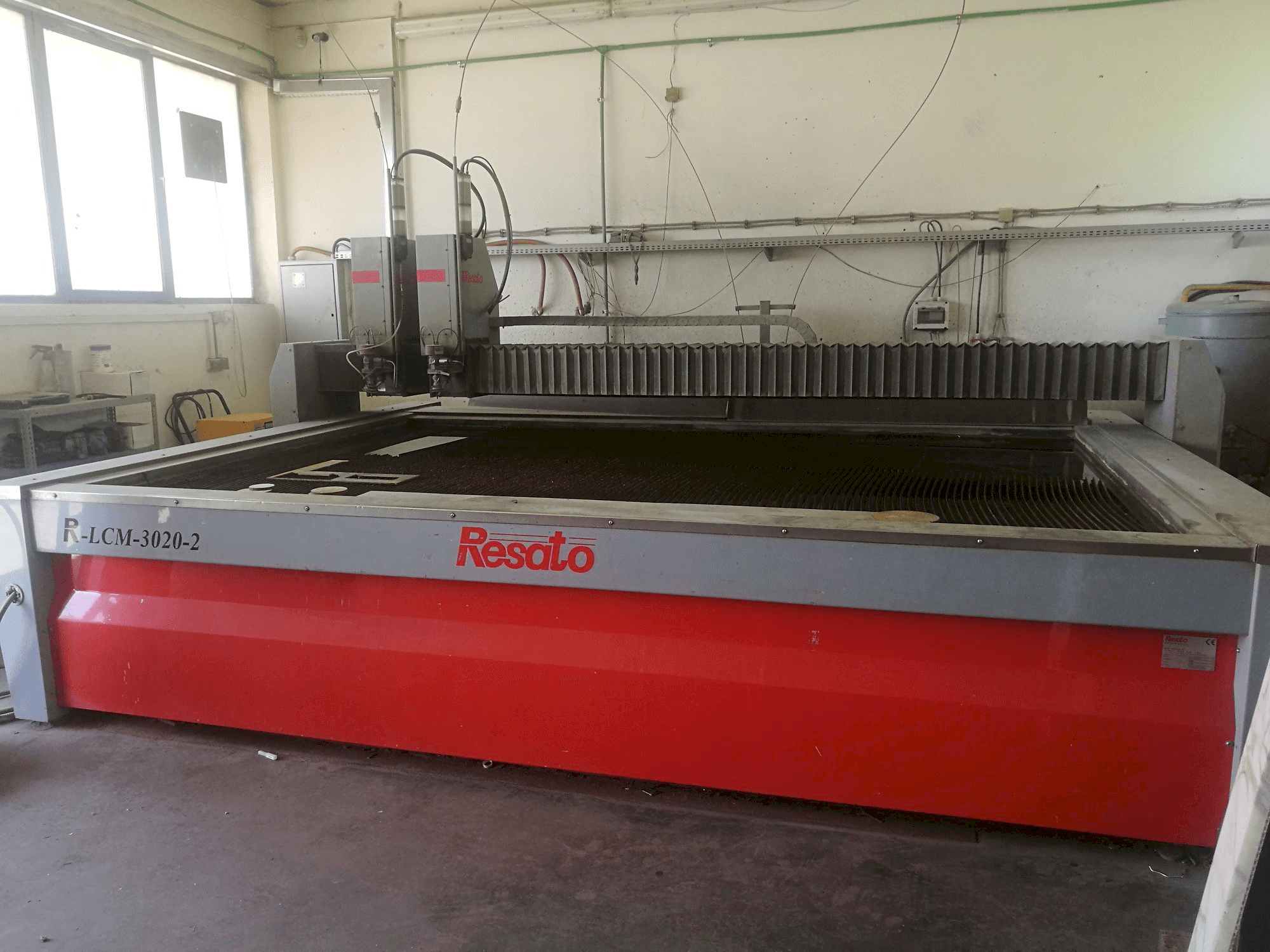

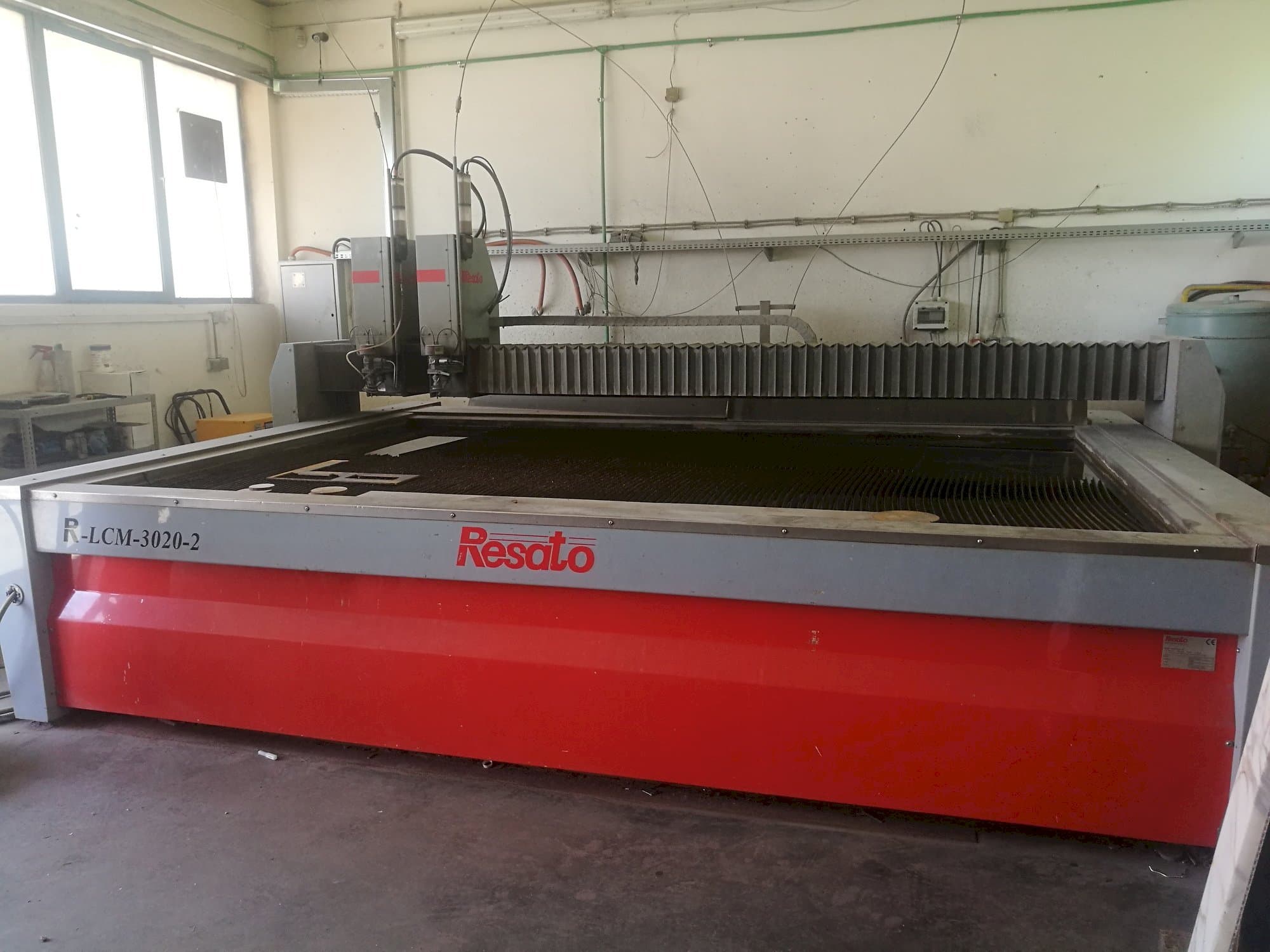

- Resato R-LCM 3020-2 Waterjet Cutting Machine
This Resato R-LCM 3020-2 Waterjet Cutting Machine was made in Holland in the year 2008. It has a working history of approximatley 12600 production hours since then. This machine is operated through a control unit of the same brand. It works with a pump drive power of 4000 bar. This model can work with various materials including steel, stainless steel, aluminum and stone.
Overview
- brand: Resato
- year: 2008
- MODEL: R-LCM 3020-2
- production hours: 12600
- application type: Cutting
- Location: Croatia
- machine type: Waterjet Cutting Machine
Technical Information - Resato R-LCM 3020-2
General Data
- Measurements width: 4600 mm
- Measurements depth: 3500 mm
- Measurements height: 5000 mm
- Machine weight: 9600 kg
Control Unit
- CNC main language: English
- CNC language customizable: Yes
Movement
- X-AXIS Movement: 3020 mm
- Y-AXIS Movement: 2020 mm
- Z-AXIS Movement: 250 mm
Max Material thickness
- Steel: 150 mm
- Stainless steel: 150 mm
- Aluminum: 150 mm
Machine specific data
- Power meas. by software: 400 V
- Number of cutting heads: 37 kVA
Additional Equipment
- - Complete spare parts for pump
- - Sand removal device
Additional Information
- Material type: Steel, stainless steel, aluminum, stone
- material thickness: 150 mm
- End product: Various plate cuttings
- Industries: Military/defense
- Technical Machine Benefits:
- - Pump drive power 4000 bar
- - 2 cutting heads
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
