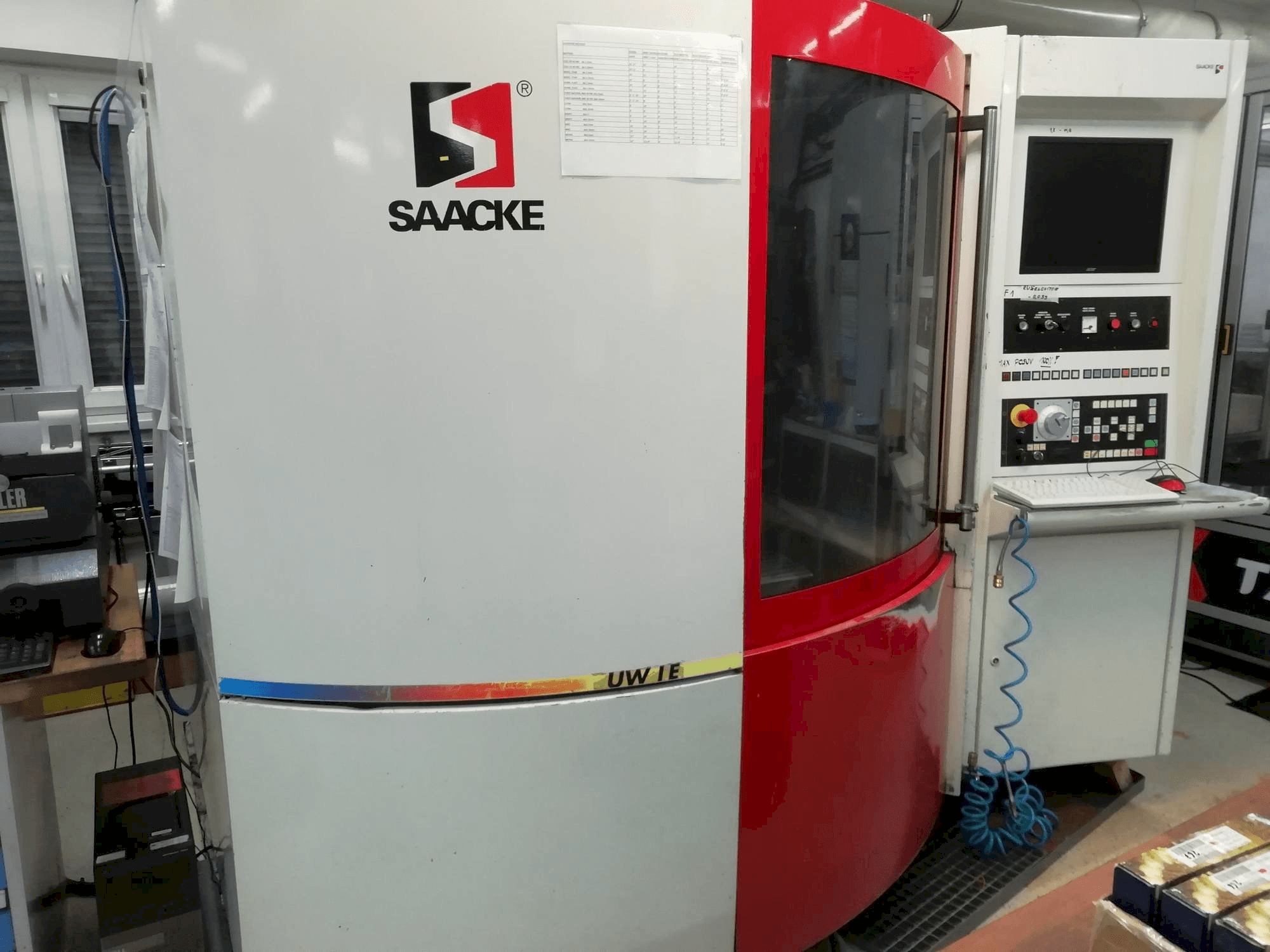

SAACKE UW1E Grinding Machine

This SAACKE UW1E Grinding Machine was made in 2002 in Germany. This machine incorporates a spindle speed range between 2000 - 10000 rpm, includes a grinding spindle power of 7 kW and a clamping on both sides HSK-C50. Completely retrofitted in 2017.

Overview

brand: SAACKE
year: 2002
MODEL: UW1E
application type: Grinding
Location: Czech Republic
machine type: Cylindrical Grinding Machine

Technical Information - SAACKE UW1E

General Data

Machine weight: 3900 kg

Main drive

Spindle speed range: 2000 - 10000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 340 mm
Y-AXIS Movement: 240 mm
Z-AXIS Movement: 840 mm

Tools

Max tool diameter: 250 mm
Max tool length: 330 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Completely retrofitted in 2017 (new spindle hsk50c, ballscrews, motor, electrical parts etc. )

Technical Machine Benefits

Software – numroto version 3. 8. 2h.
Tip center height 152 mm
Rotary table 260 degrees
Grinding spindle power 7 kw, clamping on both sides hsk-c50
Workpiece holder a axis - iso 50, max. Rpm 600

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
