- Sacem MST-XC/110 A/C CNC Table Boring machine

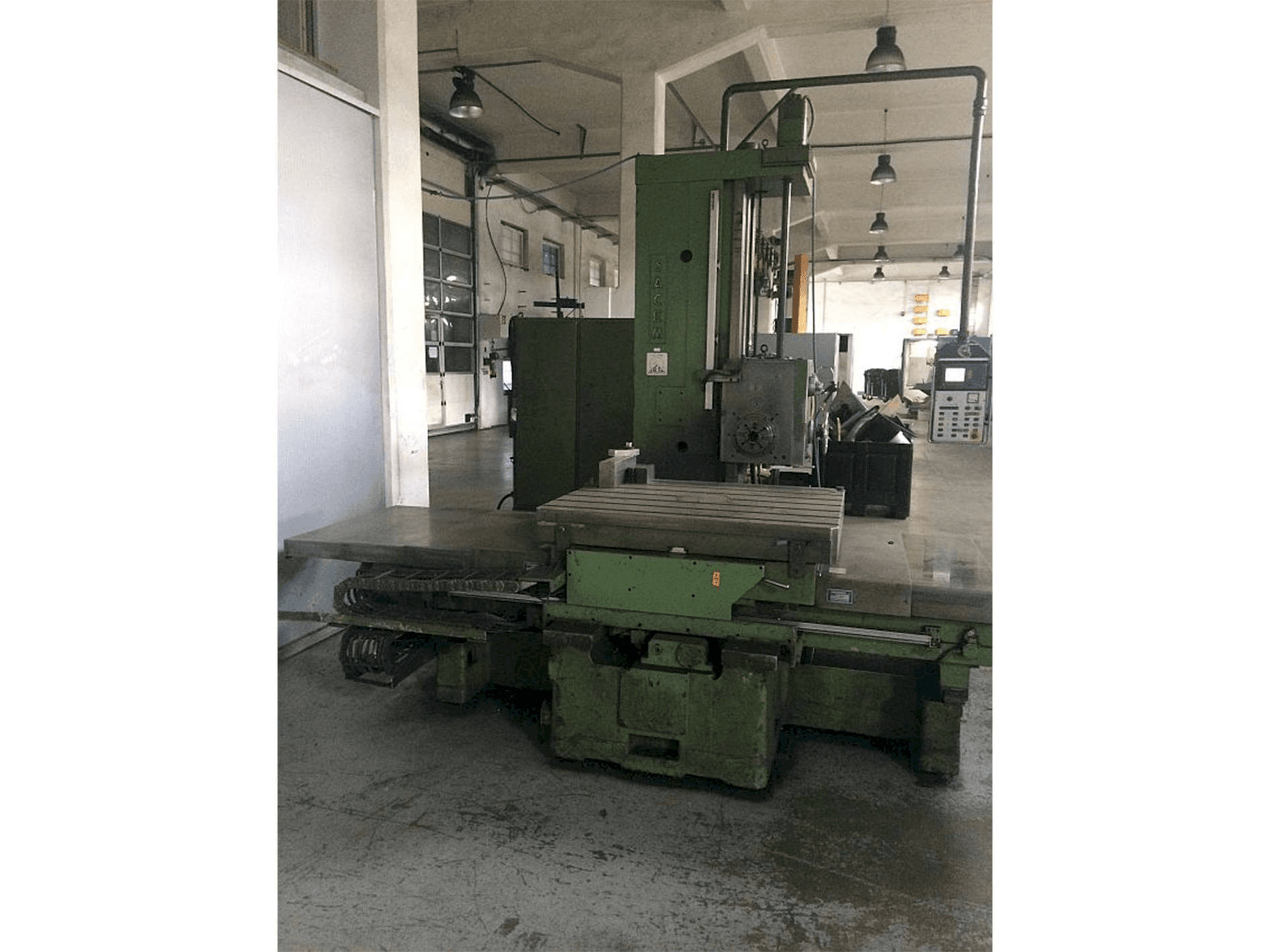

This Sacem MST-XC/110 A/C CNC Table Boring machine was manufactured in Spain in 1979. It is equipped with a Heidenhain TNC 125 control unit. This 3 axis machine operates with a spindle speed range 12 - 1200 rpm and a spindle diameter of 110 mm. Includes a table size 1200 x 1450 mm.
Overview
- brand: Sacem
- year: 1979
- MODEL: MST-XC/110 A/C
- application type: Other Machine Tools
- Location: Germany
- machine type: Boring Machine (Metal)
- control unit brand: HEIDENHAIN
Technical Information - Sacem MST-XC/110 A/C
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 125
Dimensions
- Machine Depth: 700 mm
- Machine Height: 1800 mm
- Machine Weight: 12500 kg
- Table Length: 1200 mm
- Table Width: 1450 mm
Movement
- Number of Axes: 3
- Y-axis Travel: 1200 mm
- Z-axis Travel: 1250 mm
Technical Specification
- Spindle Speed: 1200 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Control unit separate display for the w-axis
- Spindle diameter: 110 mm
- Propulsion power: 13. 4 kw
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
