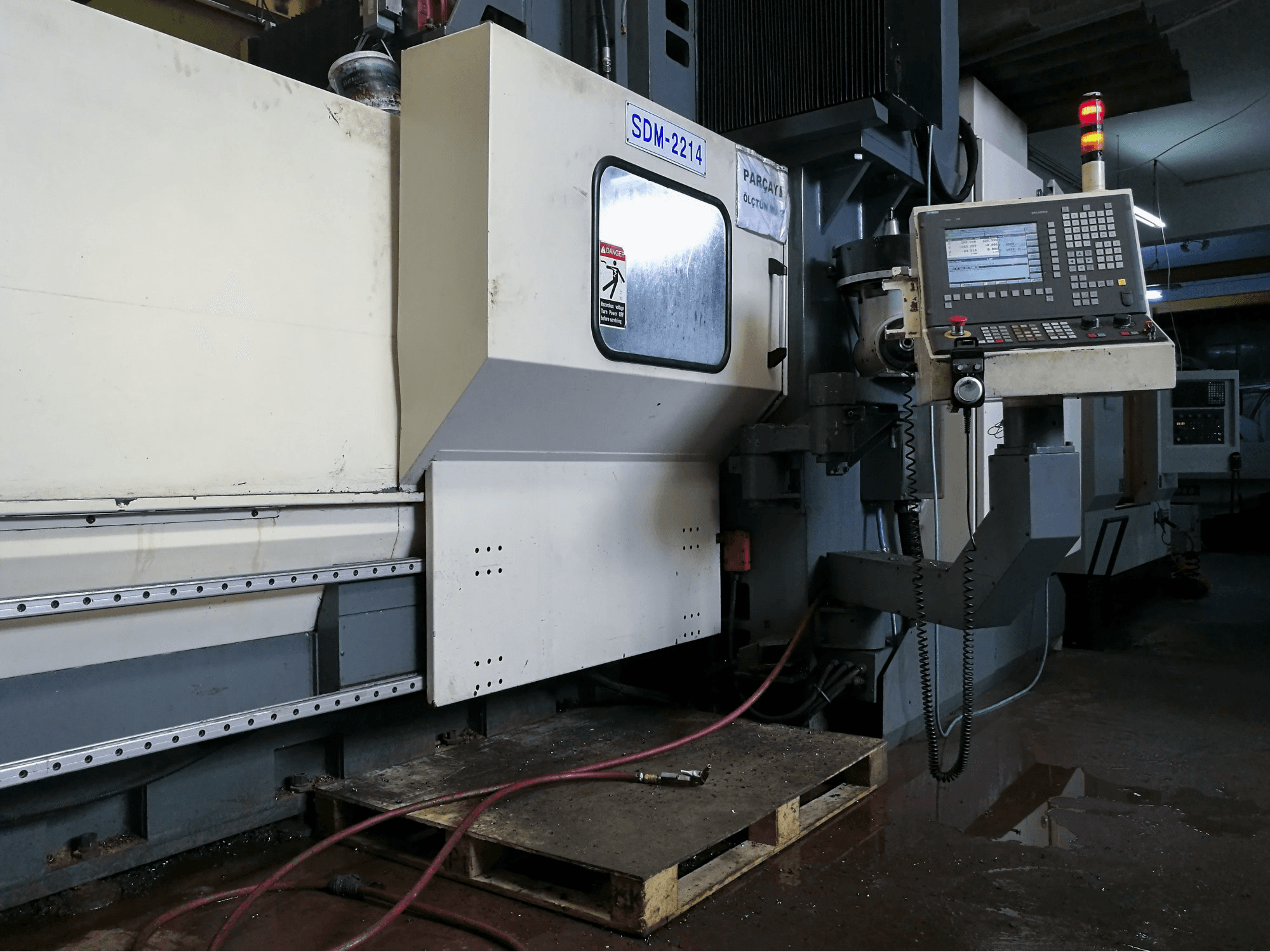

This SANCO SDM-2214 Horizontal Milling Machine from 2008 is an especially fit for heavy machining equipment. With a production record of approximately 26280 hours, the model stands out for its 5000-kilogram capacity table load as well as for its spacious working room.
Overview
- brand: SANCO
- year: 2008
- MODEL: SDM-2214
- production hours: 26280
- application type: Milling
- Location: Turkey
- machine type: Vertical Machining Centre
Technical Information - SANCO SDM-2214
General Data
- Measurements width: 5500 mm
- Measurements depth: 4200 mm
- Measurements height: 4050 mm
Main drive
- Number of spindles: 1
- Spindle speed range: 220-970 1/min
- Spindle motor power: 22.5 kW
- Tool taper: BT-50
Movement
- X-AXIS Movement: 2200 mm
- X-AXIS Working Feed: 1-5000 mm/min
- X-AXIS Rapid traverse: 12 m/min
- X-AXIS Accuracy: 0.003
- Y-AXIS Movement: 750 mm
- Y-AXIS Working Feed: 1-5000 mm/min
- Y-AXIS Rapid traverse: 10 m/min
- Y-AXIS Accuracy: 0.003
Workpiece
- Workpiece weight: 5000 kg
Table
- Outer length: 2100 mm
- Outer width: 1000 mm
- TSlots size: 22 mm
- Number of tslots: 6
- Distance between: 125 mm
Tools
- Max weight: 20 kg
- Max tool diameter: 130/200 mm
- Max tool length: 300 mm
Media
- Main electronic connection: 200-575 V / 3 P / 50-60 Hz
- Power consumption: 50 kVA
- Air pressure: 5-7 bar
- Lubrication tank: 320 L
- Oil tank: 80 L
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
