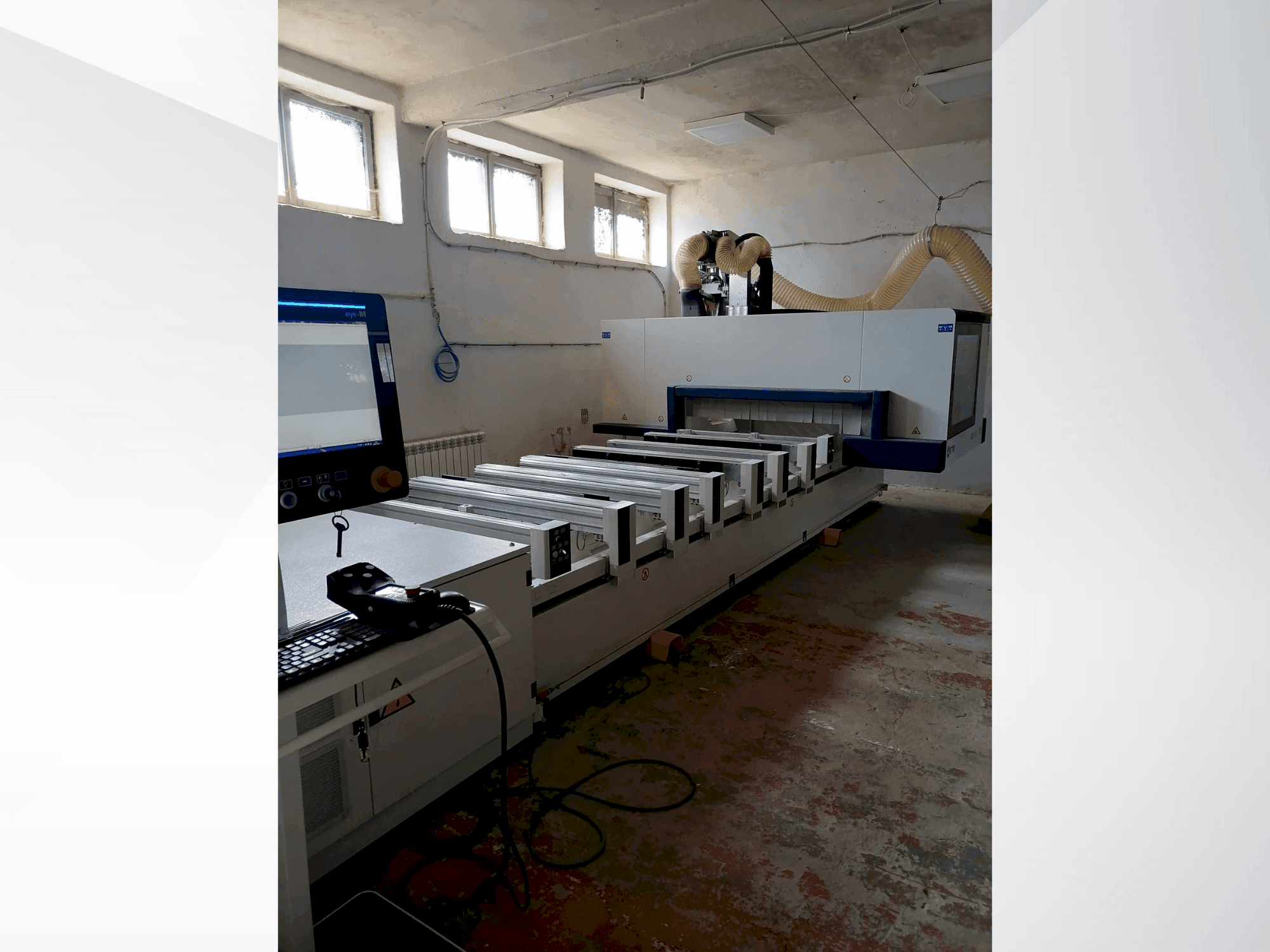

Front view of SCM Morbidelli M100 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

SCM Morbidelli M100

Photo Gallery

SCM - Morbidelli M100PL-WOO-SCM-2019-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used SCM Morbidelli M100 For sale | gindumac.com

This 3-axis SCM Morbidelli M100 woodworking machine was manufactured in 2019. It features a working area of 3110x1320 mm, with a pass-through height of 180 mm. Equipped with a vertical milling spindle of 9.5 kW and a speed range of 1500-24000 rpm, it also includes a tool magazine with a capacity for 14 tools. The integrated saw and multiple drilling units enhance versatility. A great opportunity to buy this SCM Morbidelli M100 woodworking machine. Contact us for further details regarding this woodworking machine.

Overview

brand: SCM
year: 2019
MODEL: Morbidelli M100
production hours: 7300
application type: CNC Wood Machining
Location: Poland
machine type: CNC Router

Technical Information - SCM Morbidelli M100

Main drive

Spindle speed range: 1500-24000 (Vertical milling spindle), 8000 (Drilling Head) 1/MIN
Spindle motor power: 9.5 kW
Spindle bore: 10 mm
Tool taper: HSK 63F
Number of axis: 3

Movement

X-AXIS Movement: 3110 mm
Y-AXIS Movement: 1320 mm
Z-AXIS Movement: 180 mm

Tools

Max weight: 8 kg
Max tool diameter: 280 mm (saw), 180 mm (cutter or angular unit)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Drilling head f23l with 13 independent vertical spindles and 5 horizontal drilling units
- - Integrated saw along x-axis
- - Programmable right/left rotation air cooling system with coaxial fan ceramic bearings
- - Distance between positions: 7 positions at 110 mm, 7 positions at 130 mm
- - Positioning accuracy (repeatability) x/y/z-axis: ± 0. 003 mm
Qualitative Machine Benefits:
- - Work table tv flex with areas of work: a (i offset) and d (l offset)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
