- SKODA HCW 2-200 DUO Boring Machine

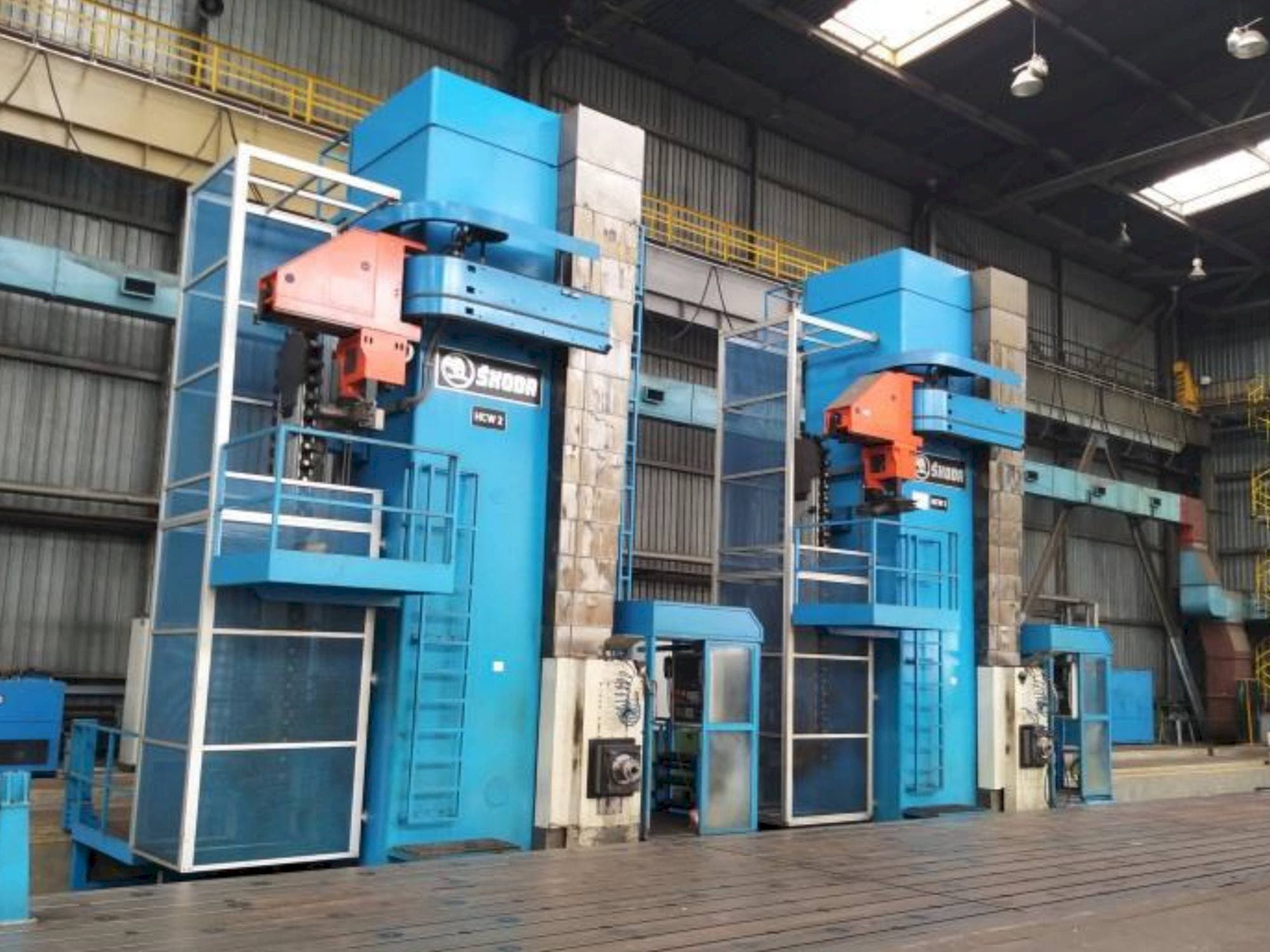

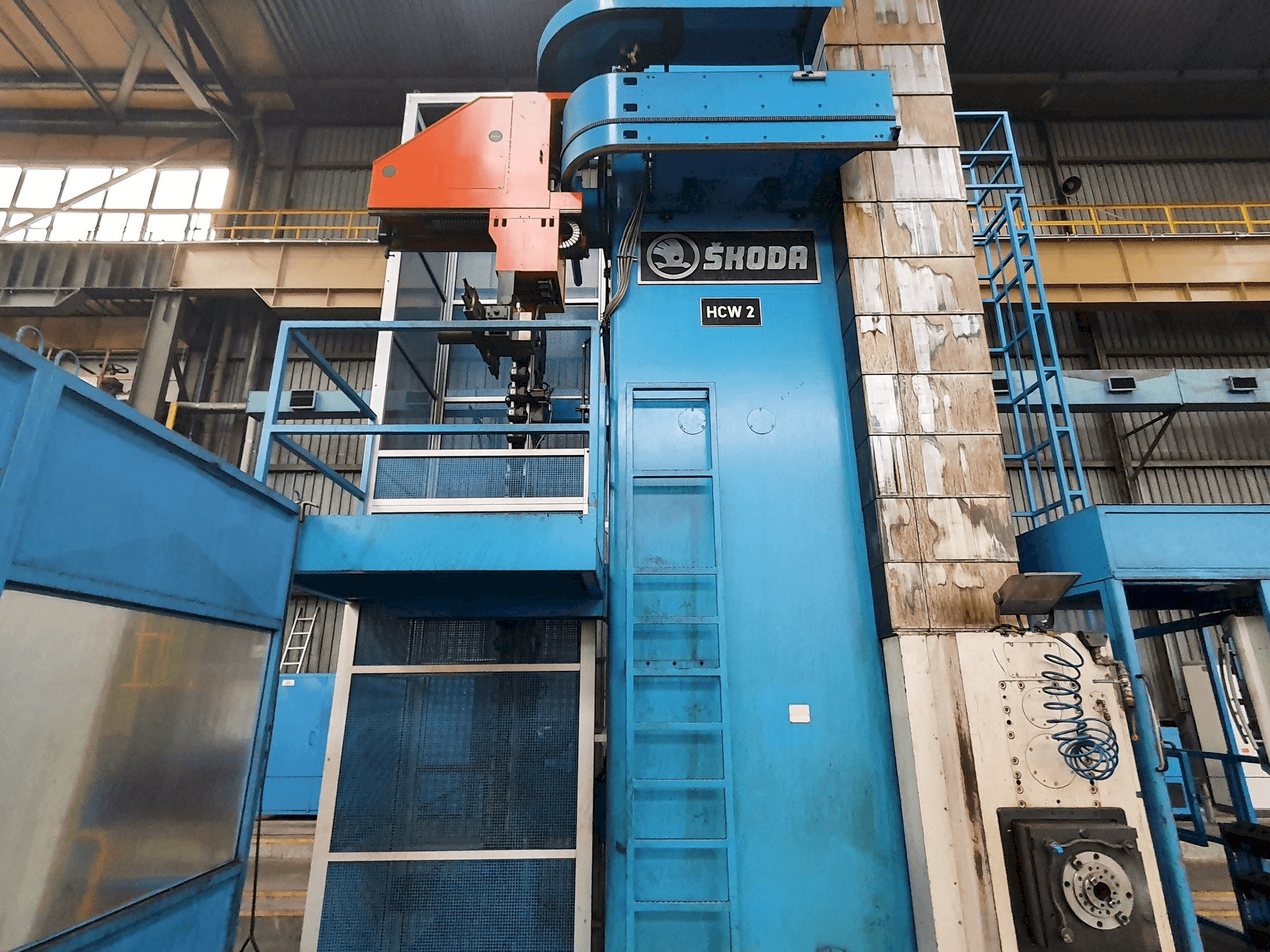

This SKODA HCW 2-200 DUO Boring Machine was made in the year 2009. It is operated through a SINUMERYC 840 D control unit. This 5 axis drilling machine operates with a spindle speed up to 2500 rpm. This machine has five interchangeable heads.
Overview
- brand: SKODA
- year: 2009
- MODEL: HCW 2-200 DUO
- application type: Other Machine Tools
- Location: Poland
- machine type: Boring Machine (Metal)
- control unit brand: SIEMENS
Technical Information - SKODA HCW 2-200 DUO
General Data
- Measurements width: 7000 mm
- Measurements depth: 8000 mm
- Measurements height: 50000 mm
Control Unit
- Model: SINUMERIK 840 D
- Brand: SIEMENS
Main drive
- Spindle speed range: 2500 1/MIN
Movement
- Z-AXIS Movement: 1300 mm
Table
- Table load: 40000 kg
Media
- Main electronic connection: 3 x 400V / 50Hz
- Power consumption: 180 kVA
Additional Information
- Technical Machine Benefits:
- - Spindle taper - iso 50
- - Accuracy of manufactured elements - it6
- - Range of working feeds - 1 ÷ 10. 000 mm / min
- - Spindle stroke in the w axis: 1. 200 mm
- - Vertical stroke in the y axis: 4. 500 mm
- - Cross travel in the x axis: - 25. 000 mm
- - Max. Table no. 2 load: 70. 000 kg
- - Max workpiece dimensions: (l x d x h) 30. 000 x 5. 200 x 4. 200 mm
- - No. 1 table dimension: 2. 500 x 3. 000 mm
- - No. 2 table dimension - 3. 000 x 3. 500 mm
- Qualitative Machine Benefits:
- - Five interchangeable heads: one five-plane, a table, two motors for torsion axles and two boring discs.
- - Max. Convergence of columns - 7. 000 mm
- - Max. Column travel – 32. 000 mm
- - The total length of the bed – 35. 000 mm
- - Each of the two columns has its own tool magazine for 60 tools.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
