➤ Used SMTCL HTC 63300 For Sale | gindumac.com

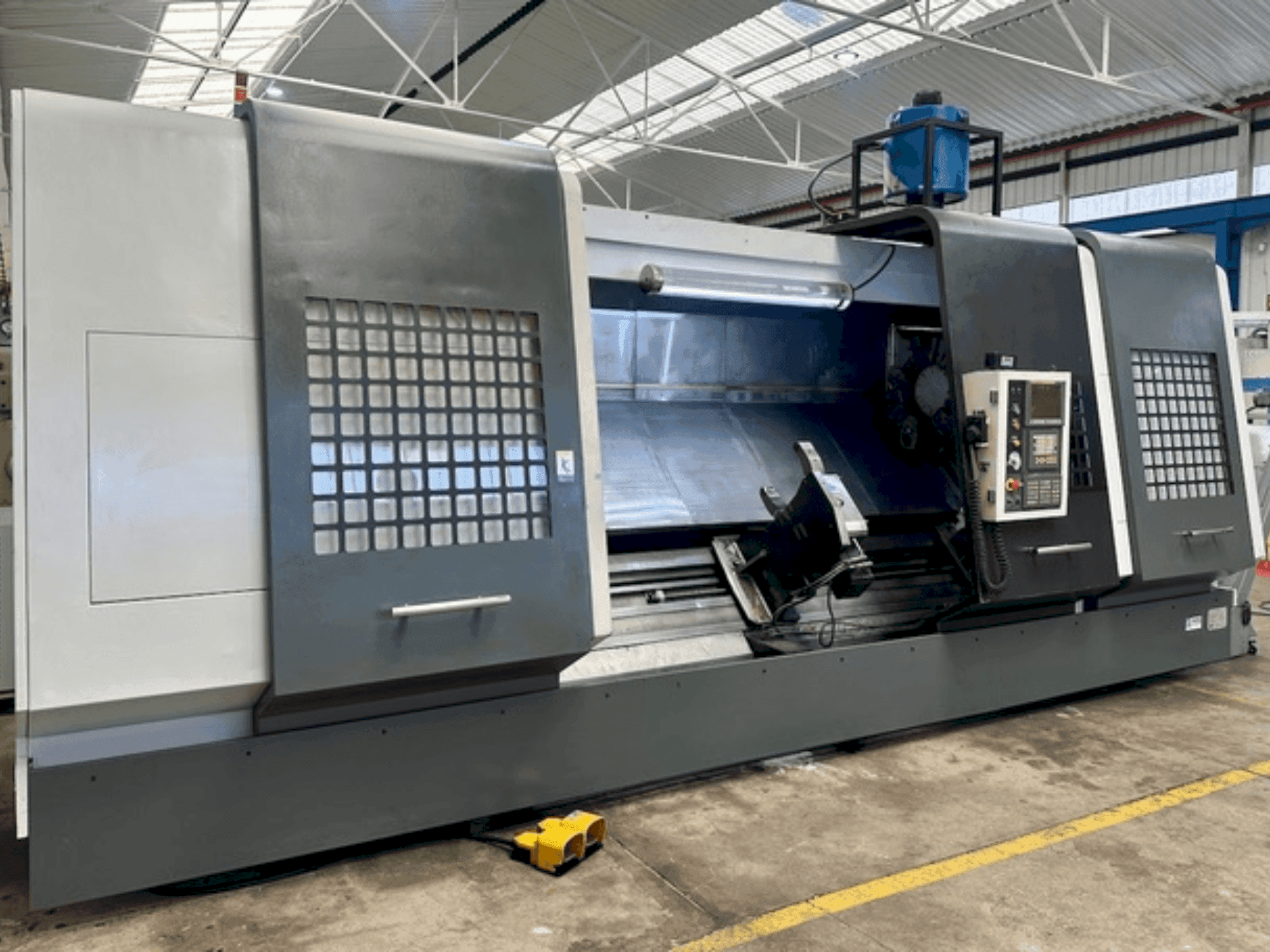

This SMTCL HTC 63300 was manufactured in 2007. A robust horizontal turning machine featuring a swing diameter over bed of 810 mm and over saddle of 580 mm. It includes a 500 mm chuck, a spindle speed range of 50 - 1800 rpm, and an auto turret with 12 tool positions. Ideal for handling large workpieces with its 3000 mm distance between centers. Contact us for more information about this machine.

Overview

brand: SMTCL
year: 2007
MODEL: HTC 63300
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - SMTCL HTC 63300

General Data

Measurements width: 2600 mm
Measurements depth: 6390 mm
Measurements height: 2500 mm
Machine weight: 21000 kg

Control Unit

Brand: FANUC
Model: oi-TC

Main drive

Spindle speed range: 50 - 1800 1/MIN
Spindle motor power: 37 / 45 kW
Number of axis: 2

Movement

X-AXIS Rapid traverse: 10 m/min
Z-AXIS Rapid traverse: 10 m/min

Workpiece

Workpiece drm over bed: 810 mm
Workpiece drm over support: 580 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between centers: 3000 mm
- - Spindle nose: asa 11” a2
- - Chuck size: 500 mm
- - Bar capacity: 125 mm
- - Type: auto turret with 12 tool positions (32 mm tools)
- - Tailstock travel: 120 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
