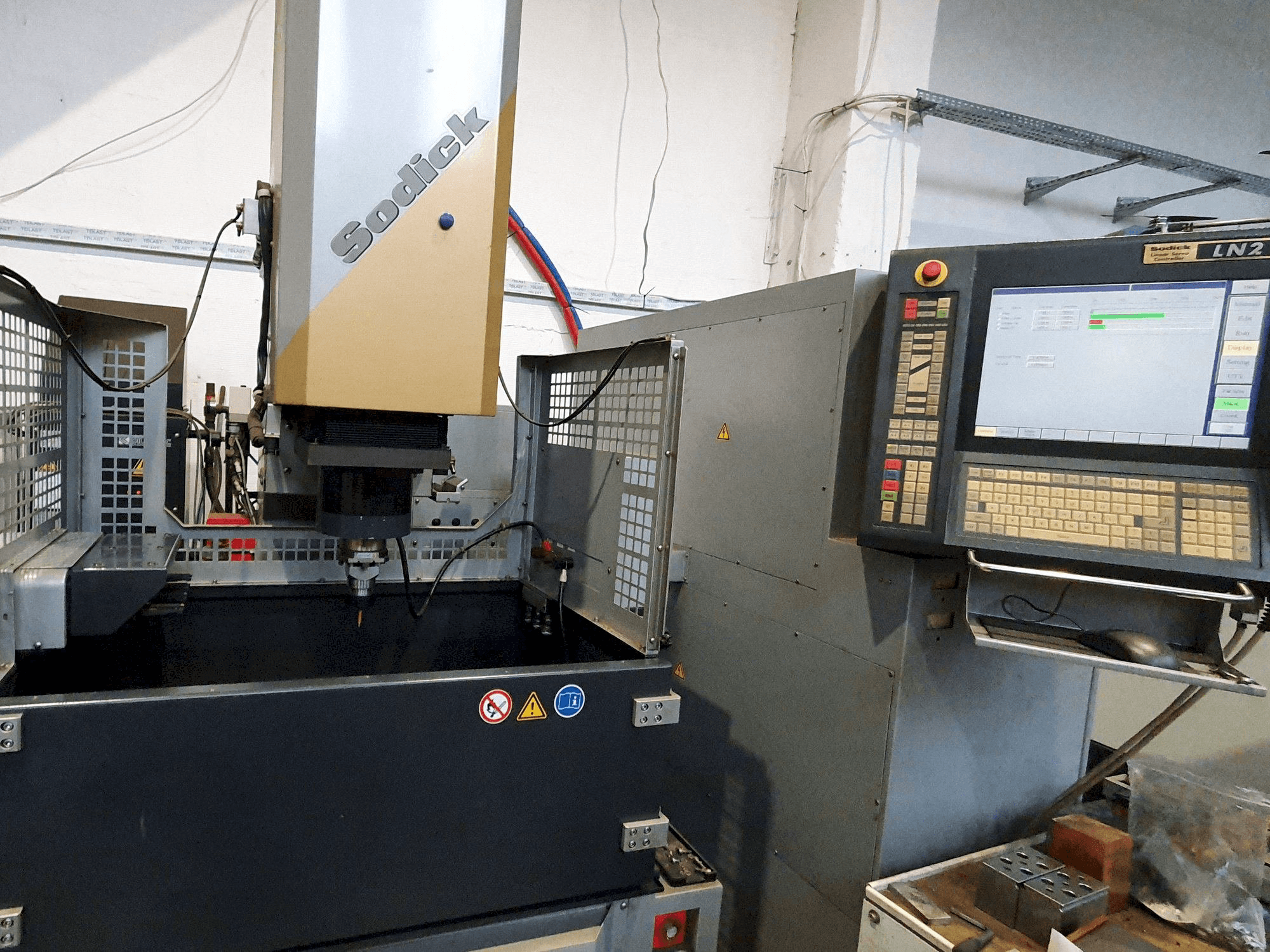

Sodick AM3L Erosion Machine

This Sodick AM3L Erosion Machine was manufactured in 2005 in Thailand. It has 16286 cutting hours. This 3 axis machine presents a table dimensions of 600 x 400 mm and operates through a control unit of the same brand. This machine is in good condition and ready for tests. Full documentation available.

Overview

brand: Sodick
year: 2005
MODEL: AM3L
production hours: 16286
application type: EDM
Location: Poland
machine type: Wire EDM Machine
availability: Sold
control unit brand: SODICK

Technical Information - Sodick AM3L

General Data

Measurements width: 1260 mm
Measurements depth: 1250 mm
Measurements height: 2315 mm
Machine weight: 2000 kg

Control Unit

Model: LN2
Brand: SODICK

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 200 mm
Z-AXIS Movement: 250 mm

Workpiece

Workpiece weight: 550 kg

Table

Outer length: 600 mm
Outer width: 400 mm

Tools

Number of index: 4 pcs
Type of tool holder: Erowa

Additional Equipment

- Probe tools
- Several electrode holders
- Ceramic plate table
- Fire extinguisher
- Oil chiller

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Work tank size (w x d x h) – 900 x 520 x 300 mm
- - Work tank capacity – 120 l
- - Max electrode weight – 50kg
- - Electrode mounting face dia. – 100 mm
- - Programable axis – x, y, z
- - Table guide system – linear motion guide
- - Head drive (z axis) – linear motor
- - Dielectric tank capacity: 400 l
- - Filtration system – replaceable paper filter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
