Sodick AQ1200L

Photo Gallery

Sodick - AQ1200LDE-EDM-SOD-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

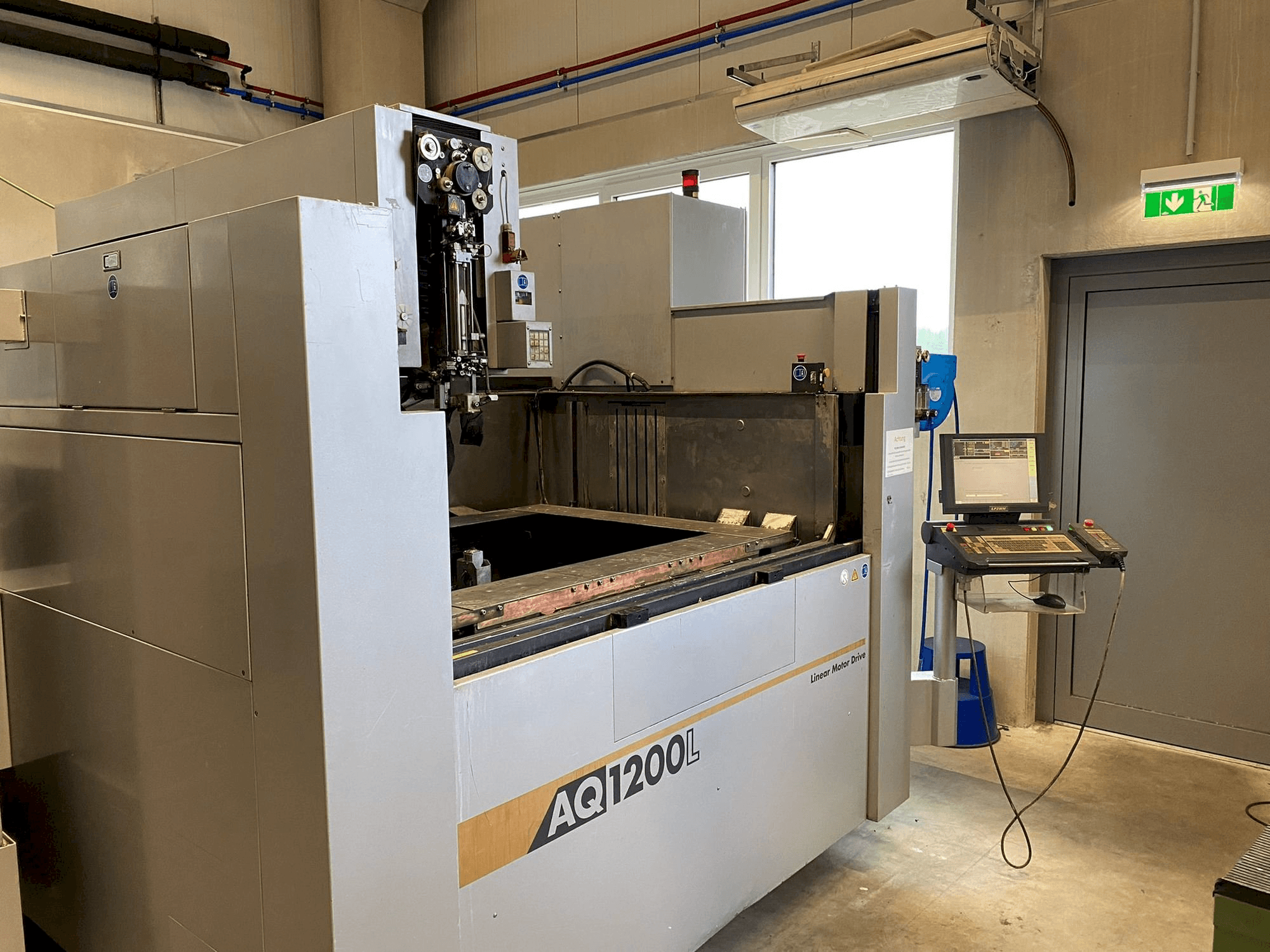

Sodick AQ1200L Erosion machine

This Sodick AQ1200L Erosion machine was manufactured in the year 2011 in Thailand and has 25000 production hours. It is equipped with a Sodick LP2WH control unit and has 5 axis. The machine has a wire diameter of Ø 0. 15 - Ø 0. 33 mm and a max wire speed of 423 mm/sec.

Overview

brand: Sodick
year: 2011
MODEL: AQ1200L
production hours: 25000
application type: EDM
Location: Germany
machine type: Wire EDM Machine
control unit brand: SODICK

Technical Information - Sodick AQ1200L

General Data

Measurements width: 4100 mm
Measurements depth: 3870 mm
Measurements height: 2490 mm
Machine weight: 11000 kg

Control Unit

Model: LP2WH
Brand: SODICK

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 1200 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 400 mm
V-Axis Movement: 820 mm
U-Axis Movement: 1220 mm

Workpiece

Workpiece weight: 4000 kg

Additional Information

Machine Benefits

Qualitative Machine Benefits

Y-guides were exchanged.

Technical Machine Benefits

Taper angle (for 150 mm height): ±30°
Internal dimensions of working tank (mm): 1824 x 1400
Max. Workpiece dimensions (w x d x h, mm): 1600 x 1200 x 400
Wire diameter (mm): Ø 0. 15 - Ø 0. 33
Wire tension (n): 3 - 23
Max. Wire speed (mm/sec): 420
Distance floor - table (mm): 1200
Controlled axes: 5

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Tech info.pdf
