Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Soraluce - TA 35RO-MIL-SOR-2012-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Soraluce TA 35 Milling Machine

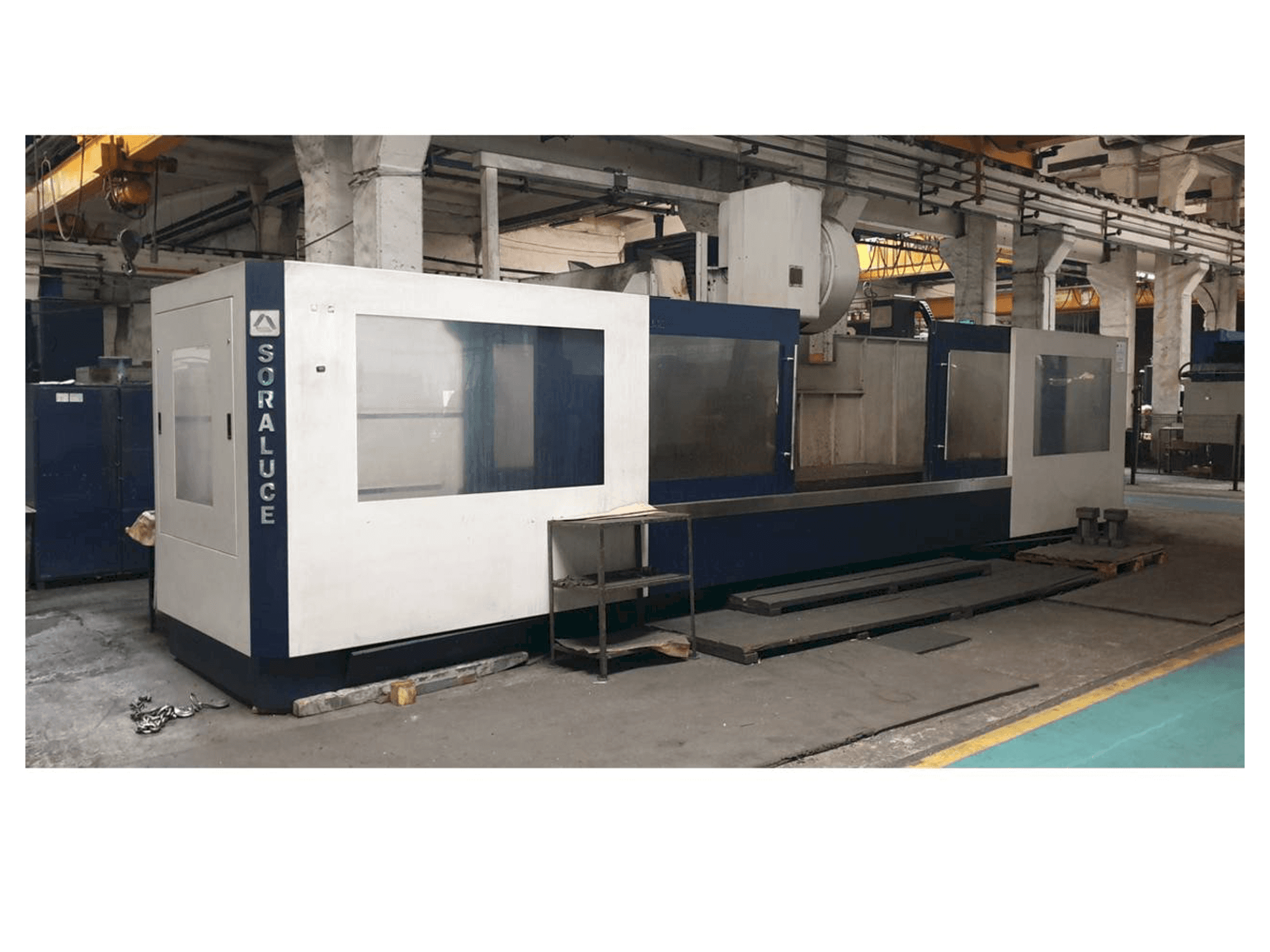

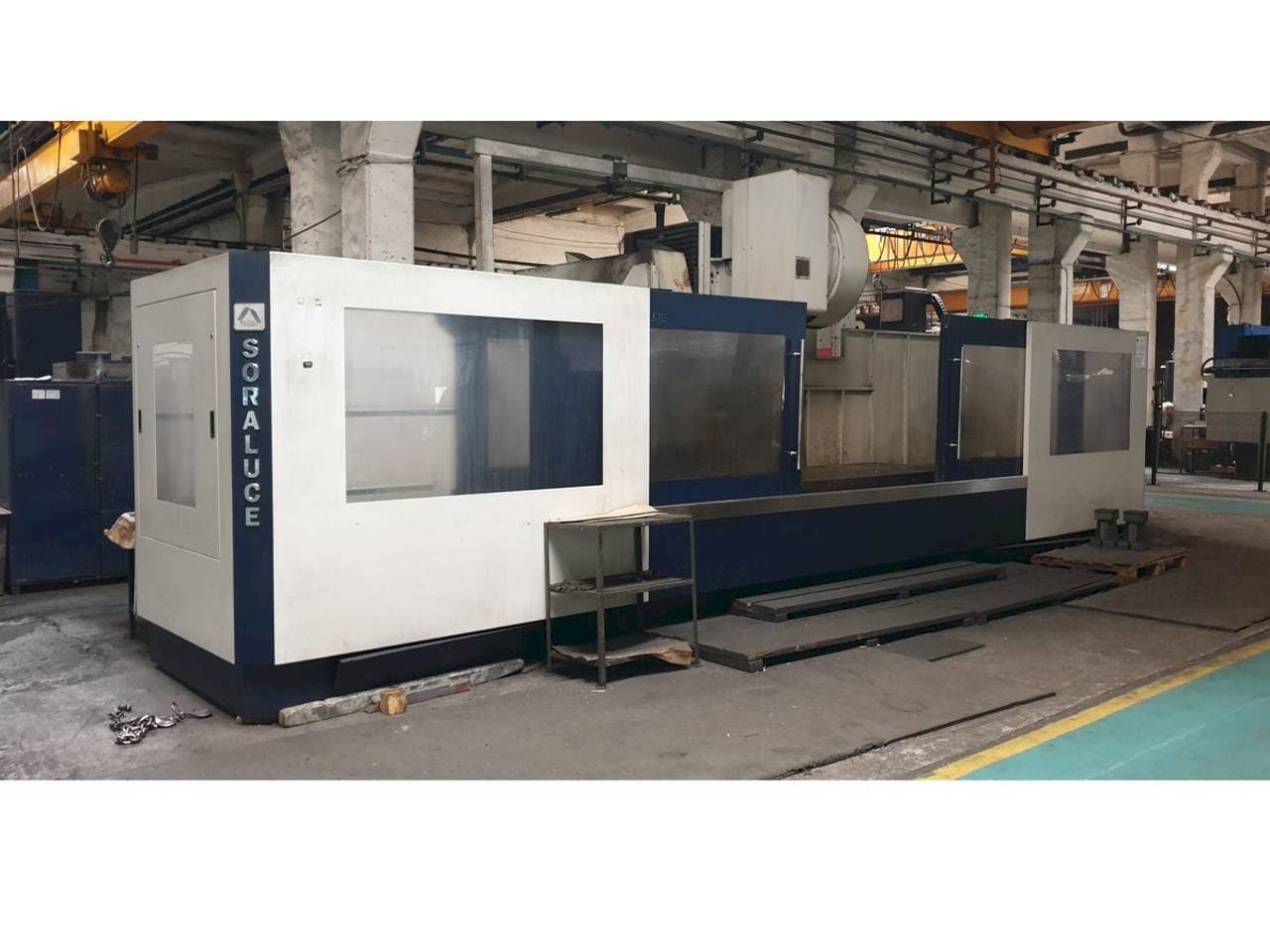

This Soraluce TA 35 Milling Machine was made in the year 2012 in Spain. It is equipped with a Heidenhain control unit. It has approximately 30000 hours. This machine can work with a spindle speed range of 15 - 3000 rpm, a vertical course of 1250 mm, and a longitudinal course of 3500 mm.
Overview
- brand: Soraluce
- year: 2012
- MODEL: TA 35
- production hours: 30000
- application type: Milling
- Location: Romania
- machine type: Bed Type Milling Machine
- control unit brand: HEIDENHAIN
Technical Information - Soraluce TA 35
Control Unit
- Control Brand: HEIDENHAIN
Dimensions
- Table Load: 2500 kg
Technical Specification
- Max. Tool Weight: 15 kg
- Spindle Speed: 3000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Maximum diameter of tool between alternate work stations: 200 mm
- Maximum length of tool without cone: 200 mm
Technical Machine Benefits
- Vertical course: 1250 mm
- Longitudinal course: 3500 mm
- Transversal ram course: 1000 mm
- Table width of t-slots: 22 mm
- Mandrel motor power level: 24 kw
- Mandrel headstock cone: din-69871-a
- Maximum working feeds: 10000 mm/min
- Fast feeds: 20000 mm/min
- Maximum thrust of shaft to cutting unit: 10000 n
- Maximum diameter of tool between adjacent work stations: 125 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
