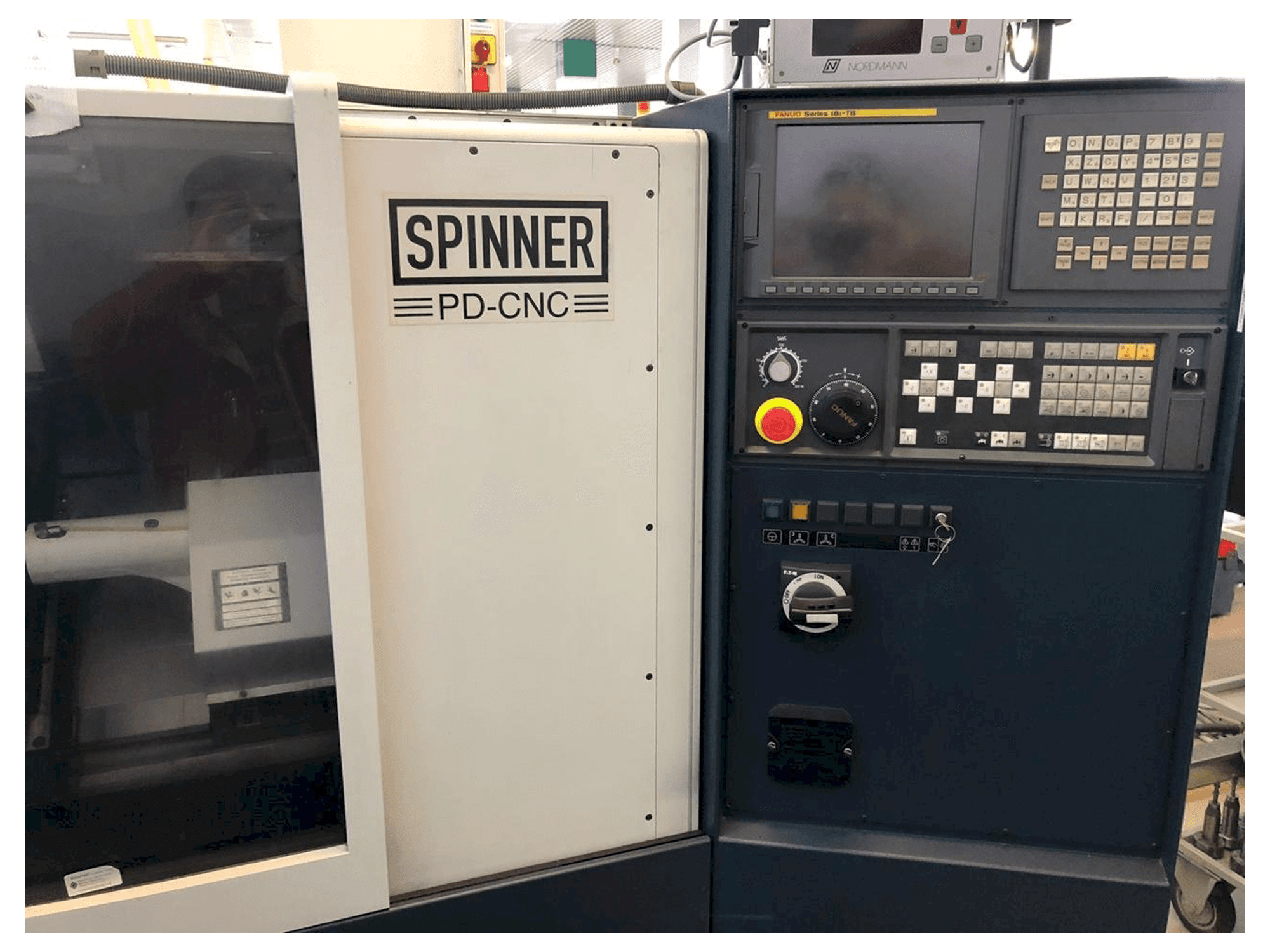

This SPINNER PD Lathe was built in Germany in 2012. Equipped with a FANUC Series 18i-TB, this double spindled machine can work with a speed up to 8000 rpm.

Overview

brand: SPINNER
year: 2012
MODEL: PD
application type: Turning
Location: Russia
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - SPINNER PD

General Data

Measurements width: 2400 mm
Measurements depth: 1300 mm
Measurements height: 1700 mm
Machine weight: 2500 kg

Control Unit

Model: Series 18i-TB
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 400 mm
X-AXIS Rapid traverse: 12 mm/min
X-AXIS Accuracy: ± 0.002 mm
Z-AXIS Movement: 400 mm
Z-AXIS Rapid traverse: 12 mm/min
Z-AXIS Accuracy: ± 0.002 mm

Tools

Type of tool holder: VDI16

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 16 pieces of tools
- - Quill diameter: 40 mm
- - Tailstock movement: 400 mm
- - Cutting tool shank size: 16x12mm
- - Diameter of 3x cam chuck: 125mm
- - Diameter of the spindle hole: 42 mm
- - Coolant tank capacity: 55 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
