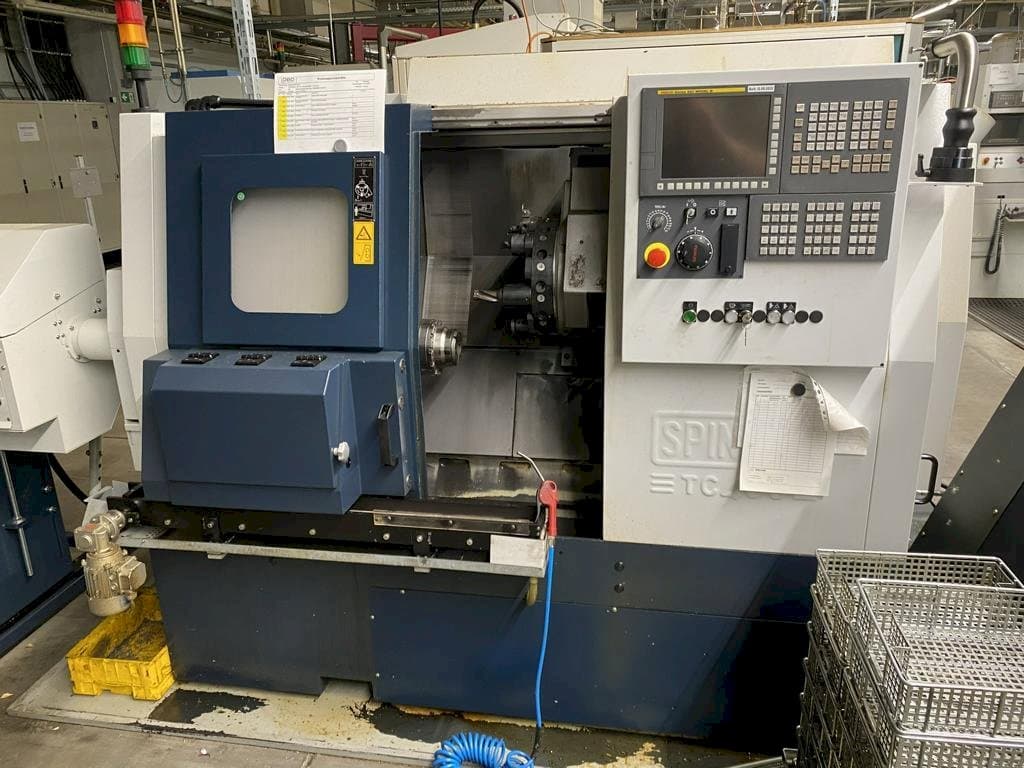

SPINNER TC400 52MC lathe

This SPINNER TC400 52MC lathe was made in the year 2021 in Germany. It is equipped with a Fanuc Series 32i-Model B control unit and has 3 axis. The machine has a spindle speed of 5000 rpm and includes a SERVO bar feeder.

Overview

brand: SPINNER
year: 2021
MODEL: TC400 52MC
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - SPINNER TC400 52MC

Control Unit

Model: Series 32i-MODEL B
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN
Number of axis: 3

Tools

Number of stations: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar feeder servo-load 80-1200-v2 2
- - With traverse x=200 mm, z=510 mm in 60-degree inclined bed design with hardened and ground sliding guides
- - 1 chuck, 8 rigid tool holders single, retrofit finished wire removal belt
- - Switching turret - with driven tool stations
- - All tool stations can be driven for turret discs with a pitch circle or on an inner pitch circle
- - Only the station in working position is driven, executed as servo turret
- - Swiveling speed can be controlled as cnc axis with feed potentiometer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
