SPINNER TC46 MC

Photo Gallery

SPINNER - TC46 MCHU-TUR-SPI-1998-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

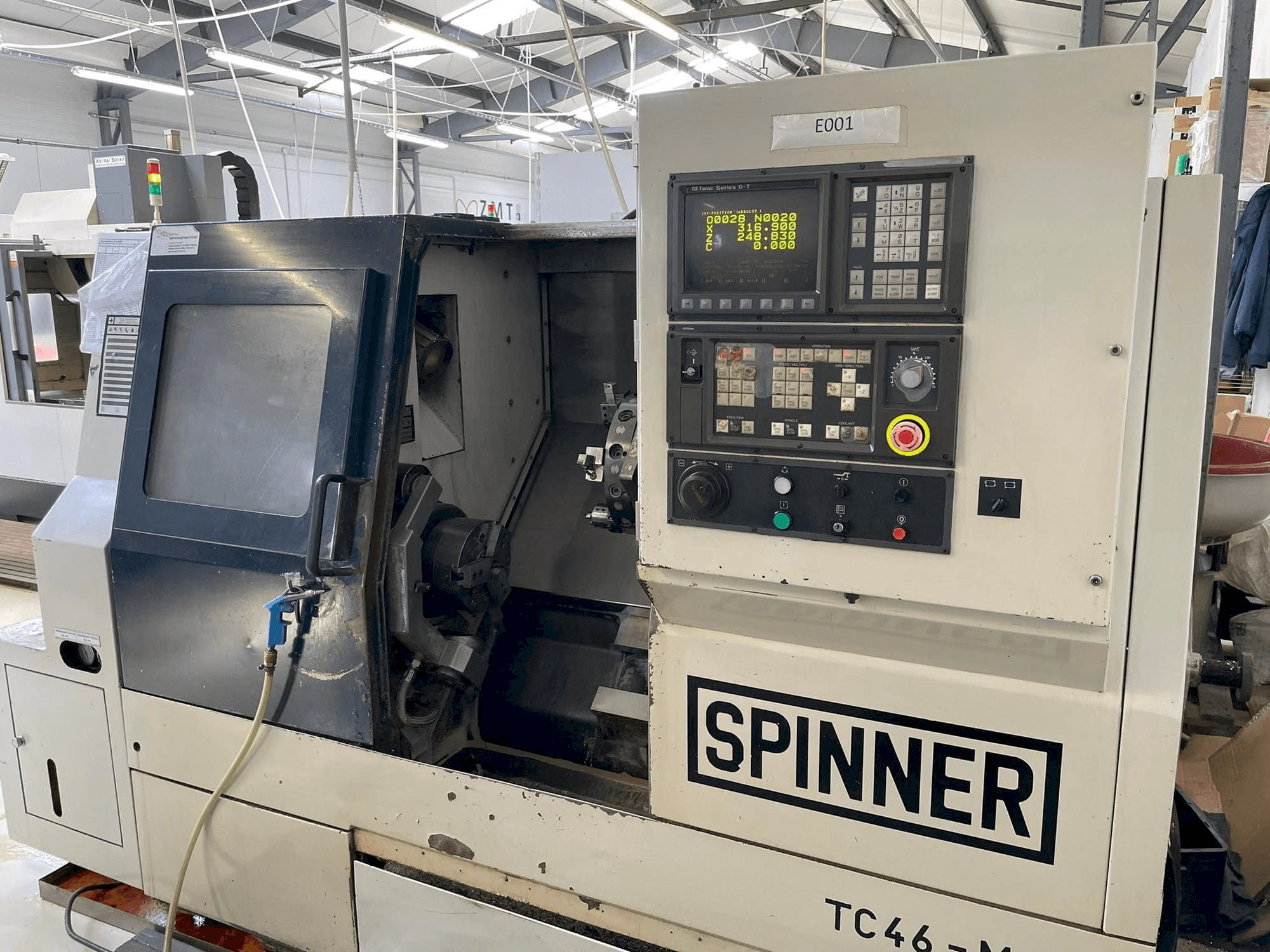

SPINNER TC46 MC Lathe

This SPINNER TC46 MC Lathe was manufactured in the year 1998. It is operated through a GE Fanuc Series 0-T control unit. It works with a max rotating diameter of 300 mm and a spindle motor power of 11 kW. It comes with driven tools.

Overview

brand: SPINNER
year: 1998
MODEL: TC46 MC
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - SPINNER TC46 MC

General Data

Measurements width: 1450 mm
Measurements depth: 2500 mm
Measurements height: 1700 mm
Machine weight: 3750 Kg

Control Unit

Model: Series O-T
Brand: FANUC

Main drive

Spindle motor power: 11 kW

Movement

X-AXIS Movement: 221 mm
Z-AXIS Movement: 590 mm

Media

Main electronic connection: 220v 50 Hz+-5%

Additional Equipment

- comes with driven tools

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Permissible diameter: 450 mm
- - Max rotating diameter: 300 mm
- - Hydraulic lathe chuck diameter: 160 mm
- - Tailstock body travel range: 500 mm
- - Traveling range tailstock spindle: 130 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
