➤ Used Star SR-38 type B For Sale | gindumac.com

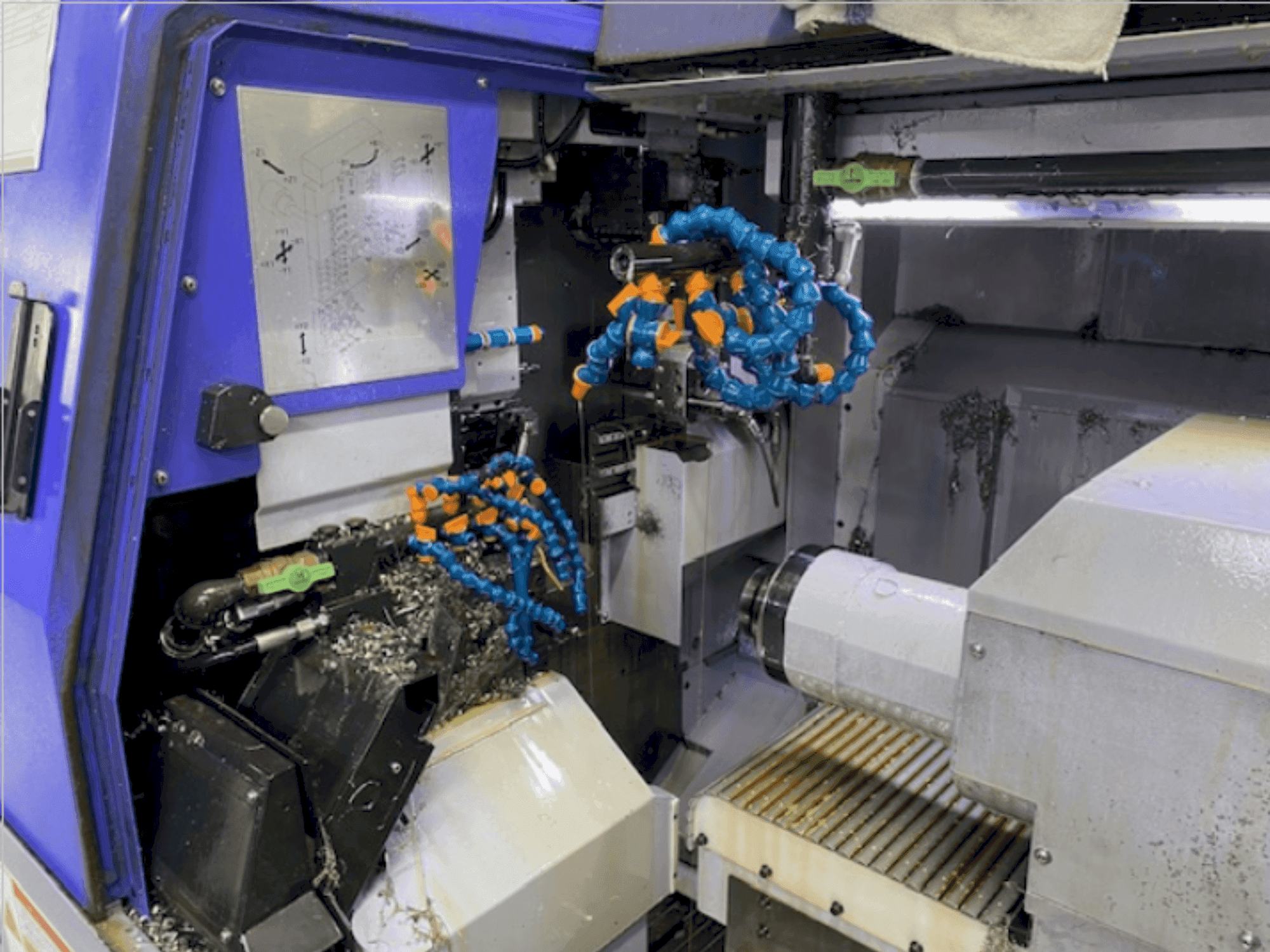

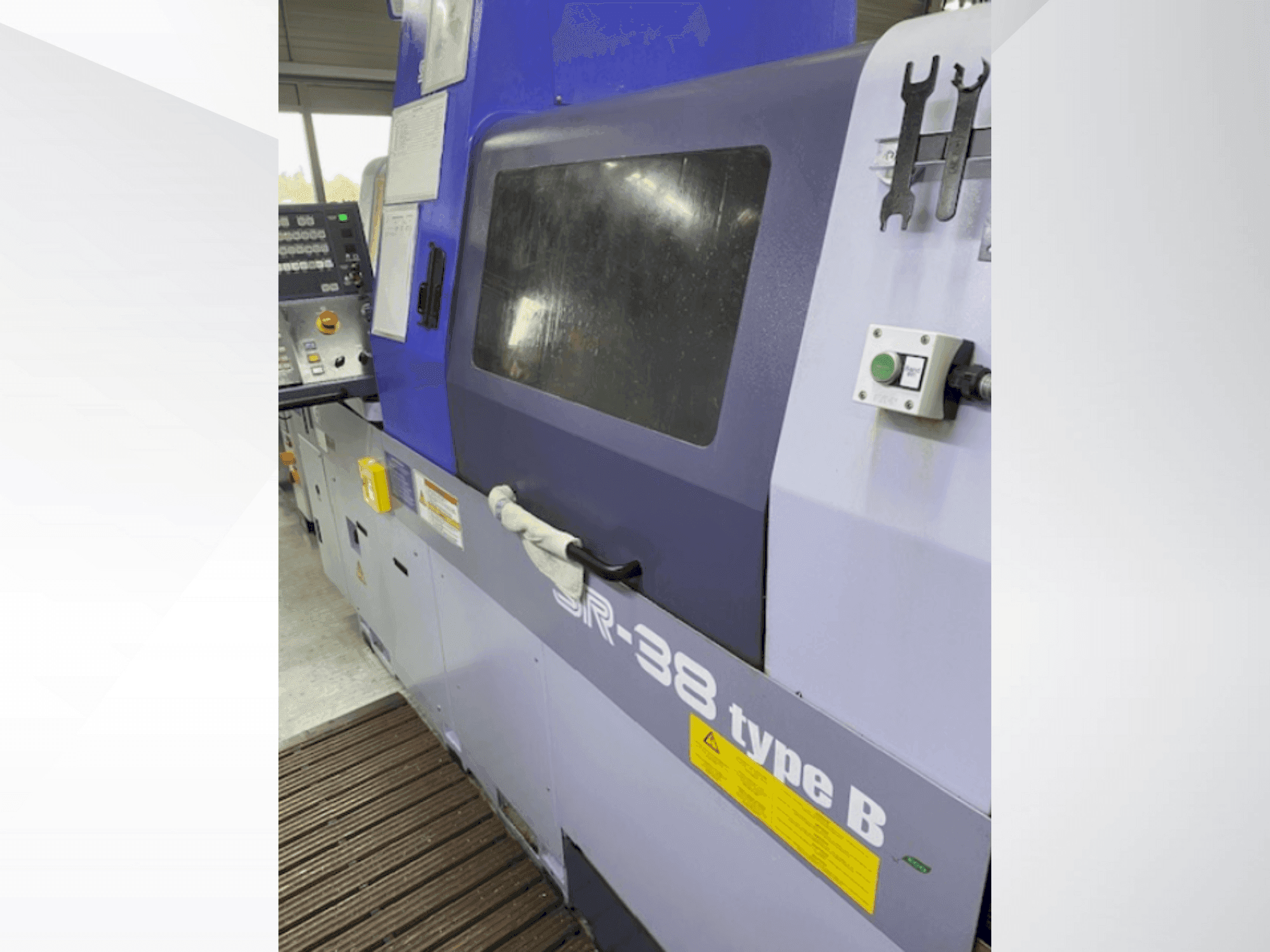

This 12-axis Star SR-38 type B was manufactured in 2017 and features a maximum bar diameter of 38 mm and a turning length of 320 mm. It operates with a spindle speed up to 7,000 rpm and a main spindle power of 11 kW. Equipped with a Fanuc Series 31i-Model B5 control, it also includes a bar loader FMB and a Knoll cooling lubricant system. If you are looking to get high-quality turning capabilities consider the Star SR-38 type B machine we have for sale. Contact us for more information.

Overview

brand: Star
year: 2017
MODEL: SR-38 type B
production hours: 7183
application type: Turning
Location: Germany
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Star SR-38 type B

Control Unit

Brand: FANUC
Model: 31i-Model B5

Additional Equipment

- Bar loader FMB / Knoll cooling lubricant system / Complete documentation available

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Dimensions of machine (lxwxh): 11 m x 2 m x 1. 9 m / weight (kg): 4300 kg
- - Tool positions: 8
- - Axes: 12 / max. Bar diameter: 38 mm / max. Turning length: 320 mm / spindle speed: 7000 rpm / main spindle power: 11 kw / tool speed: 6000 rpm /travels (x/y/z): 3200 x 1350 x 2150 mm

Extra information

- operating hours: 17,283 h/ equipment included: Tool holder (pro rata), chip conveyor (Mayfran P09.17M5350.01), filter system (Knoll (FKA 150 Turbo), HP pump (Bühele SFB 301 150 bar)/ loading magazine => FMB LSK 38/ extinguishing system included/ chip conveyor: Mayfran/ machine operated with oil

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
