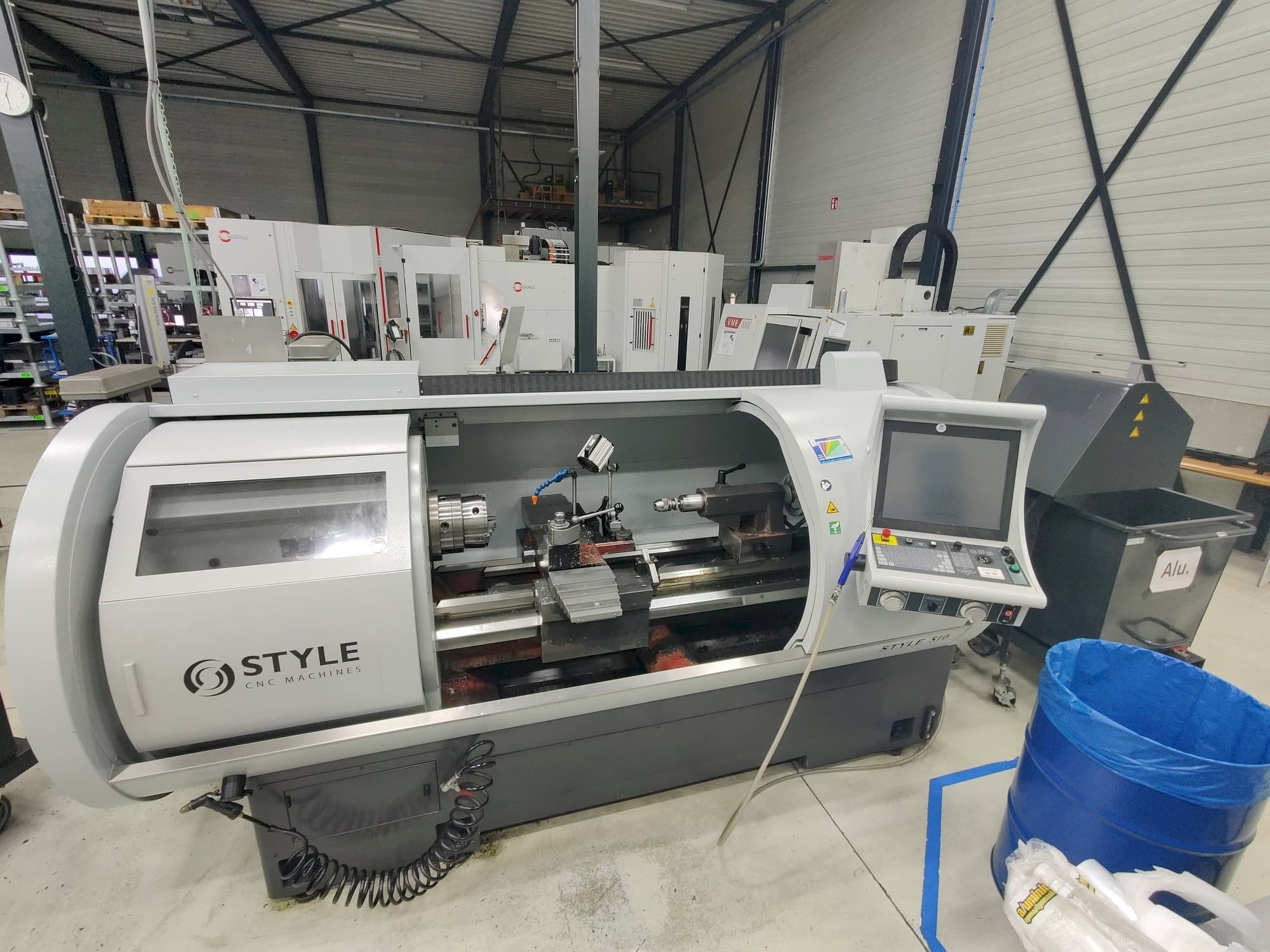

This STYLE 510 Lathe was manufactured in the year 2019 in The Netherlands. It works with a spindle speed up to 2500 rpm, and a spindle bore 80 ø mm.
Overview
- brand: STYLE
- year: 2019
- MODEL: 510
- production hours: 0
- application type: Turning
- Location: Netherlands
- machine type: Horizontal Turning Machine
Technical Information - STYLE 510
General Data
- Measurements width: 3200 mm
- Measurements depth: 1800 mm
- Measurements height: 1800 mm
- Machine weight: 2700 kg
Main drive
- Spindle speed range: 2500 1/MIN
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Rapid movement: 8 m/min
- Feed rate: 0. 01 – 2000 mm/min
- Quill: 75/80 ø mm
- Quill stroke: 150 mm
- Quill taper: 5 mt
Technical Machine Benefits
- Swing over bed: 510 mm
- Swing over support: 300 mm
- Distance between centers: 1350 mm
- Bed width: 330 mm
- Maximum weight between centers: 600 kg
- Main motor power (s6): 7. 5 kw
- Spindle bore: 80 ø mm, with gearbox: 1180(102)
- Spindle taper: d1-8
- Ball screw spindle ø x-axis: 25 mm
- Ball screw spindle ø z-axis: 40 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
