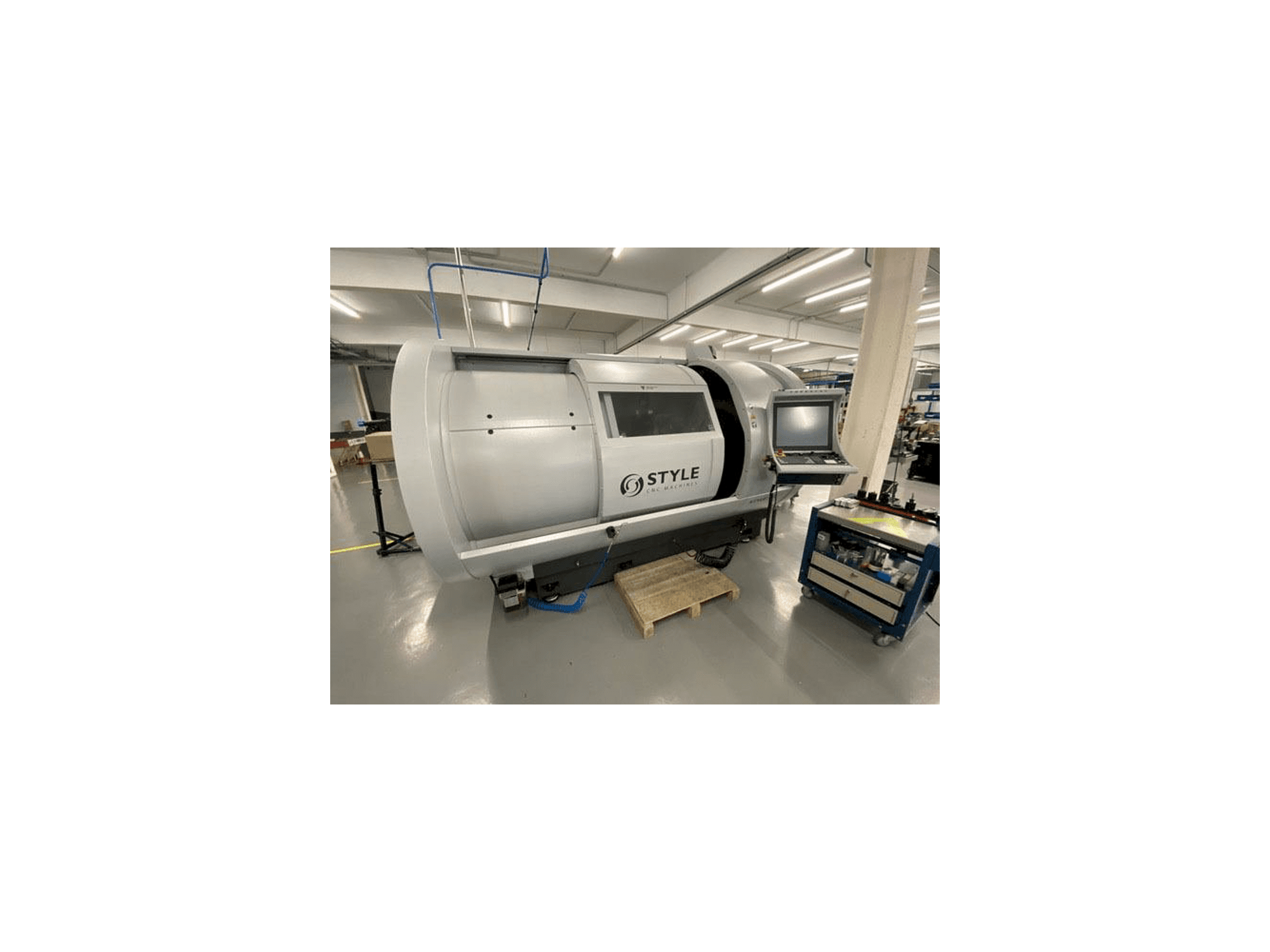

Front view of Sturtz 750 (900 dbc) machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

STYLE 750 (900 dbc)

Photo Gallery

STYLE - 750 (900 dbc)AD-TUR-STY-2020-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
STYLE 750 (900 dbc) Lathe

This STYLE 750 (900 dbc) Lathe was manufactured in the year 2020 in the Netherlands and has 413 production hours. The machine has a spindle speed of 2000 rpm. The Original PDF of the machine is attached. See below for further details.

Overview

brand: STYLE
year: 2020
MODEL: 750 (900 dbc)
production hours: 413
application type: Turning
Location: Andorra
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - STYLE 750 (900 dbc)

General Data

Measurements width: 3100 mm
Measurements depth: 2300 mm
Measurements height: 2200 mm
Machine weight: 4700 kg

Main drive

Spindle speed range: 2000 1/MIN
Spindle motor power: 23 kW
Tool taper: A2-11
Number of axis: 2

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Machine colour frame ral 7021
- - Sheet metal ral 9006
- - Swing over bed 750 mm
- - Swing over support 530 mm
- - Distance between centers 900 mm
- - Bed width 450 mm
- - Maximum weight between centres 1500 kg
- - Maximum weight in combination with steady rest 2000 kg
- - Maximum main spindle torque 4090 nm
- - Spindle bore Ø105 mm
Qualitative Machine Benefits:
- - X and z-axis
- - Ball screw spindle Ø x-axis 32 mm
- - Ball screw spindle Ø z-axis 50 mm
- - Rapid movement 8 m/min
- - Feed rate 0. 01-1000 m/min
- - Tail stock: quill Ø 105 mm quill stroke 225 mm quill taper mt 5

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
