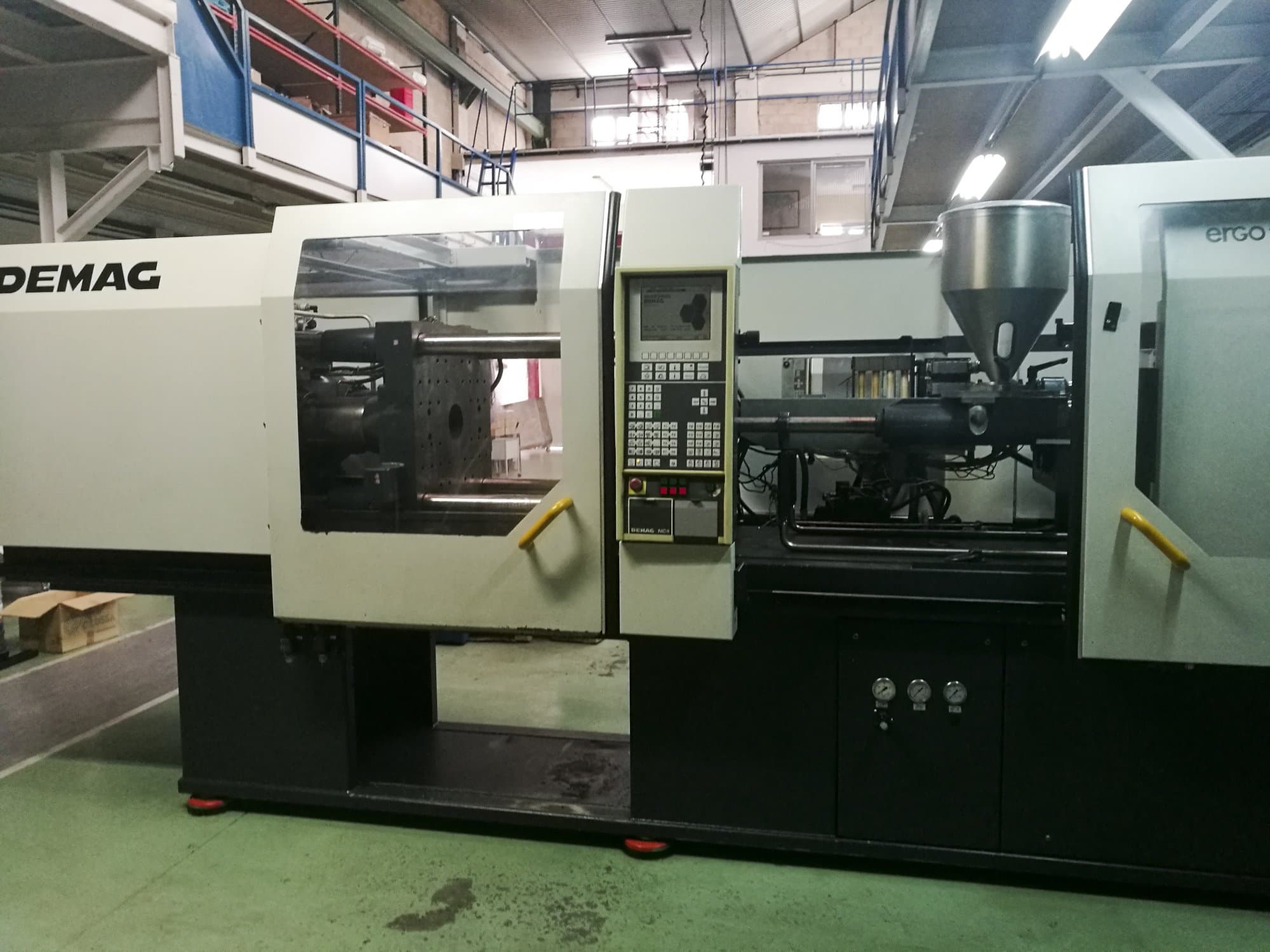

Front view of DEMAG ERGOtech 110-430 compact machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

SUMITOMO SHI DEMAG ERGOtech 110-430 compact

Photo Gallery

SUMITOMO SHI DEMAG - ERGOtech 110-430 compactES-INJ-DEM-1998-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
DEMAG ERGOtech 110-430 compact Injection Moulding Machine

This DEMAG ERGOtech 110-430 compact Injection Moulding Machine, built in 1998, has a production record of 58820 working hours. This user-friendly machine is operated through a DEMAG NC4 Control unit, and stands out through its robustness that has left it in an impeccable condition.

Overview

brand: SUMITOMO SHI DEMAG
year: 1998
MODEL: ERGOtech 110-430 compact
production hours: 58820
application type: Injection Moulding
Location: Spain
machine type: Hydraulic Injection Moulding Machine

Technical Information - SUMITOMO SHI DEMAG ERGOtech 110-430 compact

General Data

Measurements width: 4960 mm
Measurements depth: 1500 mm
Measurements height: 2000 mm
Machine weight: 5200 kg

Control Unit

Model: NC4

Injection Unit

Screw diameter: 40 mm
Shot weight: 205 g/PS
Stroke volume: 231.2 cm³
Injection pressure: 2020 bar
Heating capacity: 11.1 kW
Nozzle pressure: 60 kN

Clamping unit

Clamping force: 1100 kN
Opening stroke: 600 mm
Mould height min: 250 mm
Size of mold platens: 670 x 670 mm
Ejector stroke: 180 mm
Ejector force for / back: 41.2 mm

Media

Main electronic connection: 400 V / 50 Hz
Oil pressure: 270 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
