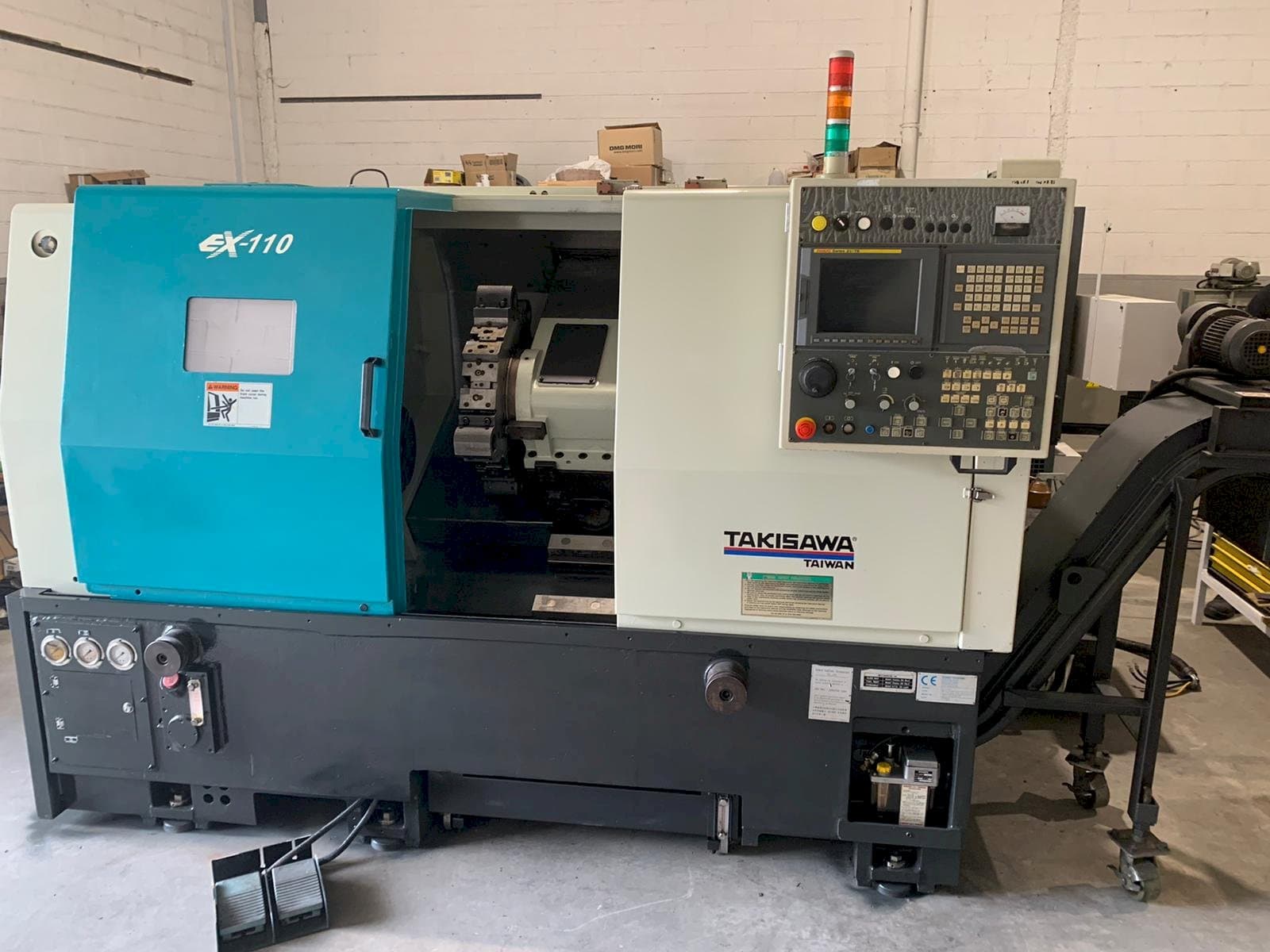

Takisawa EX-110 Lathe

This Takisawa EX-110 Lathe was made in 2005 in Taiwan. It is equipped with a Fanuc 21I-TB control unit and has 2 axis. The machine has a spindle speed of 3500 rpm, a spindle inner diameter of 85 mm and 12 tools on turret.

Overview

brand: Takisawa
year: 2005
MODEL: EX-110
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Takisawa EX-110

General Data

Measurements width: 2795 mm
Measurements depth: 1702 mm
Measurements height: 1803 mm
Machine weight: 5010 kg

Control Unit

Model: 21I-TB
Brand: FANUC

Main drive

Spindle speed range: 3500 rpm 1/MIN
Spindle motor power: 18.6 kW
Number of axis: 2

Workpiece

Workpiece x: 216 mm
Workpiece z: 711 mm

Turret

Number of tool slots: 12

Additional Equipment

- Tailstock

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning length: 711 mm
- - Max. Turning diameter: 400 mm
- - Diameter allowed on trolley: 400 mm
- - Length between centres: 645 mm
- - Replaced guideways and runners on x,z-axis
- - Repaired change of ranges
- - Spindle inner diameter: 85mm
- - Number of tools on turret: 12
- - Rotation speed: 3500 rpm // spindle motor power: 18. 6 kw
- - Counterpoint: yes
Qualitative Machine Benefits:
- - Good condition
- - Fully revised

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
