➤ Used Takisawa FX800 For Sale | gindumac.com

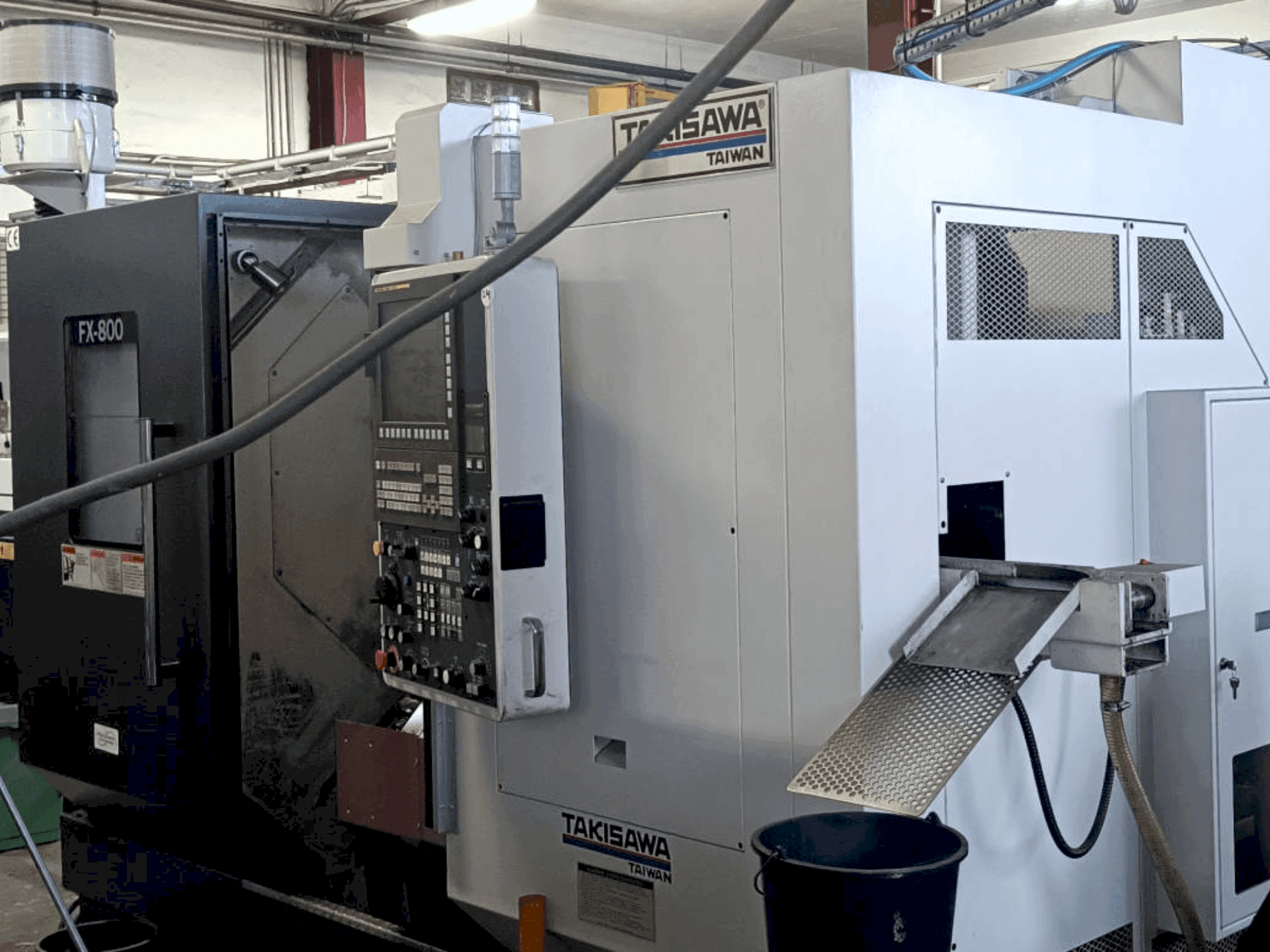

This 8-axis Takisawa FX800 was manufactured in 2017, a robust horizontal turning machine featuring dual spindles and two 16-position turrets, one with a Y-axis. It supports bar work up to 1500 mm and includes a bar loader, parts removal unit, and chip conveyor. Ideal for high-volume, precision turning operations. If you are looking to get high-quality turning capabilities, consider the Takisawa FX800 machine we have for sale. Contact us for more information about this machine.

Overview

brand: Takisawa
year: 2017
MODEL: FX800
production hours: 0
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Takisawa FX800

General Data

Measurements width: 2394 mm
Measurements depth: 5530 mm
Measurements height: 2340 mm
Machine weight: 12300 kg

Control Unit

Brand: FANUC
Model: Oi TF with Ethernet connection

Main drive

Number of spindles: 2
Spindle speed range: 4500 / 5000 RPM 1/MIN
Spindle motor power: 15/11 kW - 11/7.5 kW
Number of axis: 8

Turret

Number of turrets: 2

Tools

Number of stations: 16

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Hydraulic clamping chuck Ø208 with hard clamping jaws // Hainbuch collet chuck SK 65 axfix
Clamping cylinders with clamping sleeves
Bar loader for 1500 mm bars with adjustable options
Parts removal unit up to Ø65 mm with conveyor belt
Coolant pumps (9 bar)
Air through the 2nd spindle for blowing and ejection
Extraction system with filter
Special parting-off holder for parting blades from EWS
Various clamping heads SK 65 // Various ER32 collets
Camera surveillance // Tool monitoring: RAKU RAKU

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
