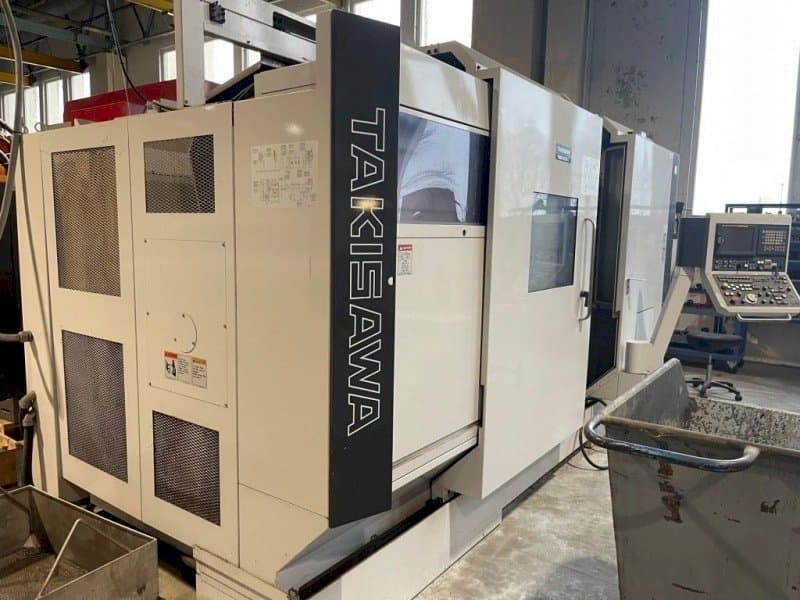

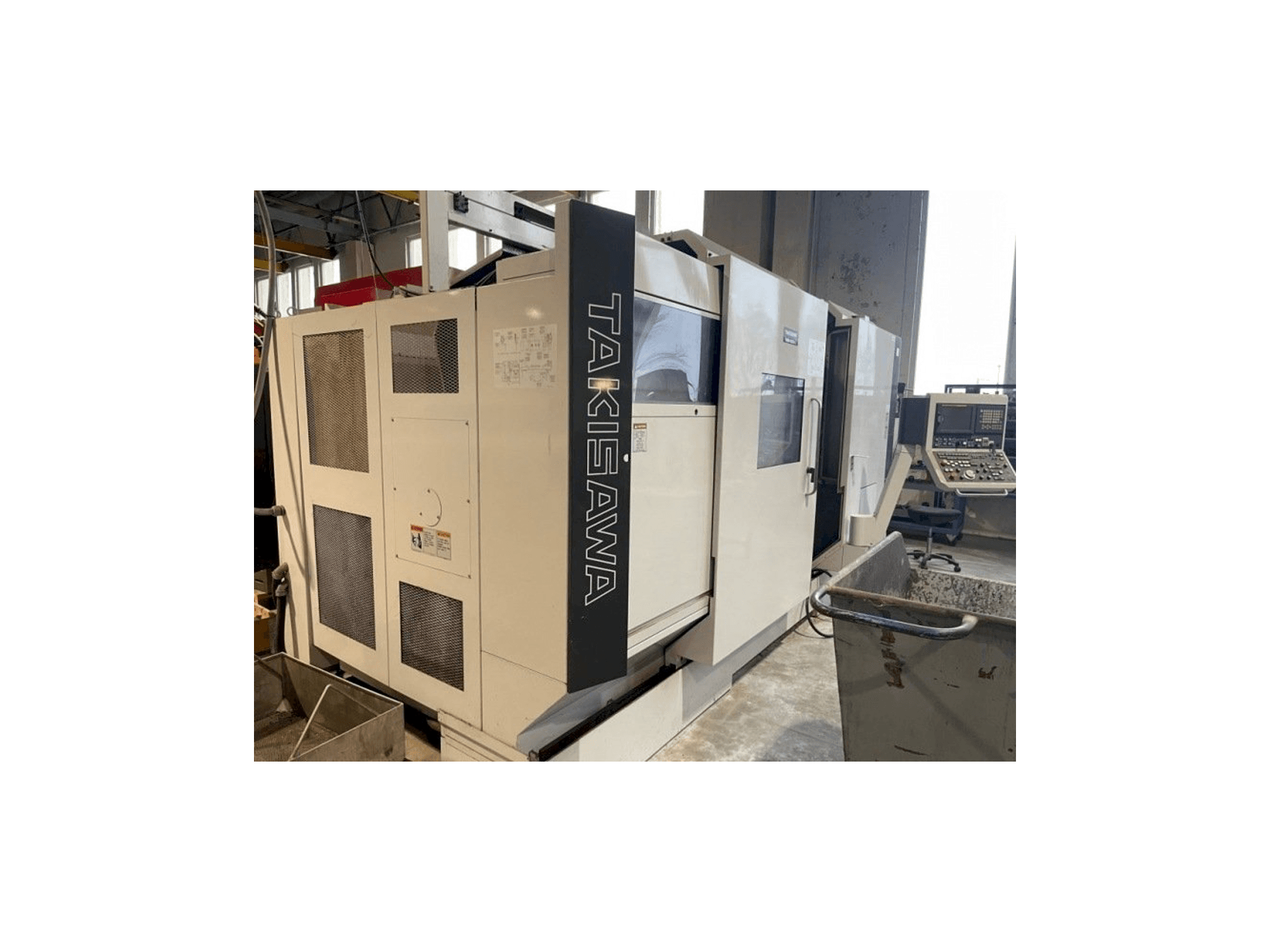

Front view of Takisawa TMM250-M3 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Takisawa TMM250-M3

Photo Gallery

Takisawa - TMM250-M3FR-TUR-TAK-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
TAKISAWA TMM250-M3 Lathe

This TAKISAWA TMM250-M3 Lathe was made in 2008. It is equipped with a FANUC Series 180is-TB control unit. The machine has a spindle speed of 40-4000 rpm.

Overview

brand: Takisawa
year: 2008
MODEL: TMM250-M3
production hours: 0
application type: Turning
Location: France
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Takisawa TMM250-M3

General Data

Measurements width: 4880 mm
Measurements depth: 2200 mm
Measurements height: 3050 mm
Machine weight: 10000 kg

Control Unit

Model: Series 180is-TB
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 40-4000 1/MIN
Spindle motor power: 22 kW

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 260 mm
Z-AXIS Movement: 1300 mm
B-AXIS Movement: 360º MM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Indexable lower turret x2-axis 228 mm z2-axis 1260 mm
C-axis 0,001°
Bore ø86mm
Full power from 485 rpm
30× atc

Technical Machine Benefits

Capacity ø350×1300 mm, x1 y1 z1 x2 z2 a / b c 560×260 (±130)×1300×228×1260×1300 mm / 230°×360° (0,001° increment)
Swing over bed ø780 mm
Max turning diameter ø350 (500) mm
Maximum turning length between centers 1300 mm
Height of the spindle axis relative to the ground 1220 mm
Maximum distance between centres 1630 mm
Torque 433 nm
Nose a2-8
Recommended chuck size ø250 mm
Bar passage ø75 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
